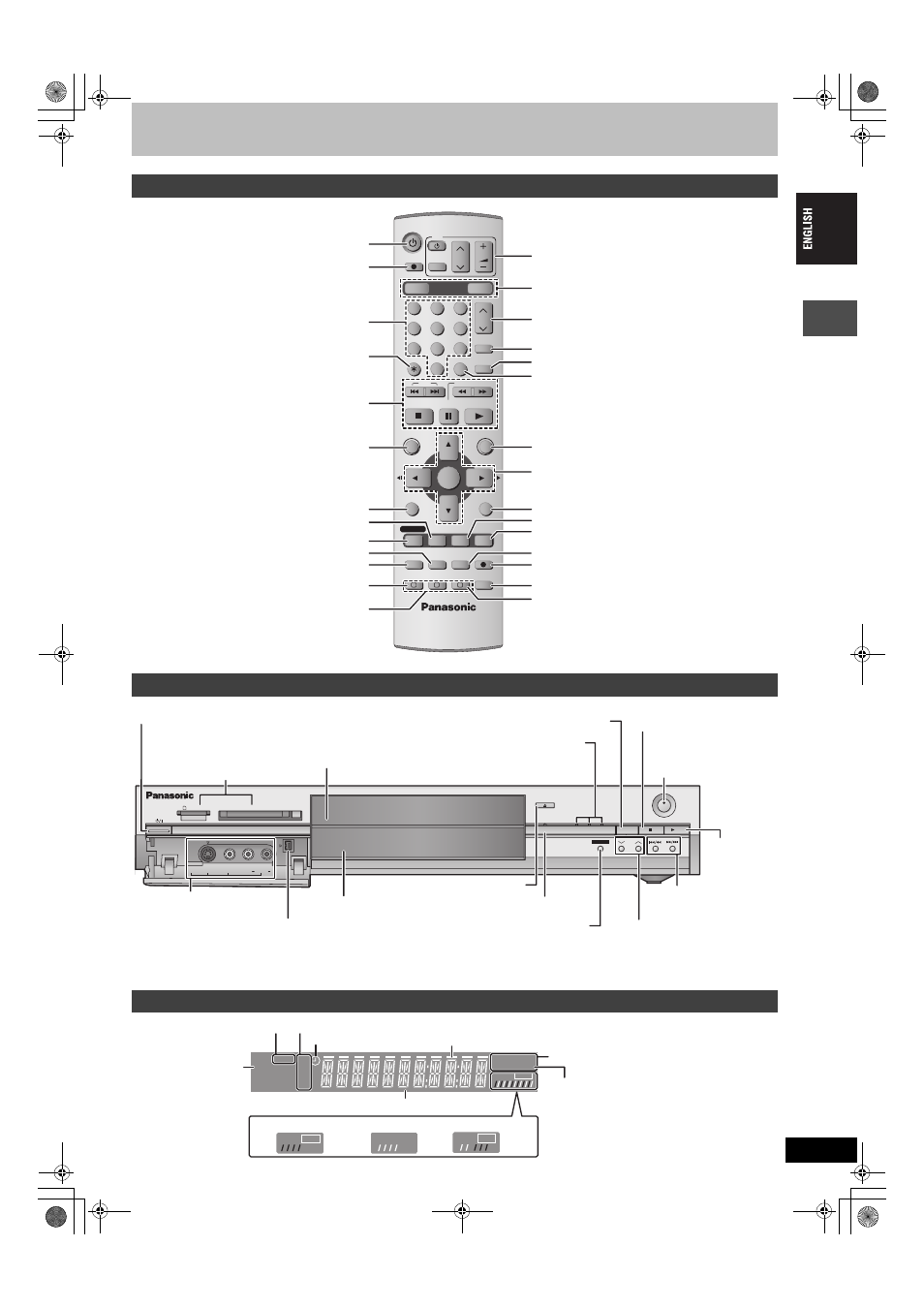

Control reference guide
Rear panel terminals ( ➡ page 7, 8)
Remote control
VOLUME CH DIRECT TV REC
DVD
TV
AV
1 2 3
4 5 6
7 8
0
9
MANUAL SKIP
ShowView
CH
CANCEL INPUT SELECT
SKIP
STOP PAUSE PLAY/x1.3
SLOW/SEARCH
FUNCTIONS
ENTER
DIRECT NAVIGATOR
TOP MENU
RETURN SUB MENU
CREATE
CHAPTER
TIMER
EXT LINK
PROG/CHECK
REC MODE ERASE REC
AUDIO
TIME SLIP STATUS DISPLAY
F
A B C
DVD SD/PC DRIVE SELECT
Turn the unit on ( ➡ page 10, 11)
Direct TV recording ( ➡ page 18)
Select channels and title numbers etc./
Enter numbers
Cancel
Basic operations for recording and play
Show Top menu/Direct navigator ( ➡ page 22, 30)
Show on-screen menu ( ➡ page 28)
Show timer recording programme screen ( ➡ page 20)
Erase items ( ➡ page 24)
Programme recording standby/release
( ➡ page 19, 20)
Show sub menu ( ➡ page 30)
Linked timer recordings with external equipment
( ➡ page 21)
Manual tuning operation ( ➡ page 45)
Television operations ( ➡ page 13)
Channel select ( ➡ page 16)
Show S HOW V IEW screen ( ➡ page 19)
Skip 30 seconds forward ( ➡ page 23)
Show FUNCTIONS window ( ➡ page 37)
Selection/Enter, Frame-by-frame ( ➡ page 10, 23)
Return to previous screen
Show status messages (
➡ page 29)
Skip the specified time/Display the television image
as a picture-in-picture (
➡ page 17, 23)
Start recording ( ➡ page 16)
Select audio ( ➡ page 24)
Create chapter ( ➡ page 24)
Change recording mode ( ➡ page 16)
Input select (AV1, AV2, AV3, AV4 or DV)
(
➡ page 18, 35)
Select drive (DVD, SD or PC)
(
➡ page 16, 22, 27)
Main unit
OPEN/CLOSE
REC
/x1.3 TIME SLIP
CH TIME SLIP
DRIVE SELECT SD PC DVD
SD CARD PC CARD EJECT
AV3 S-VIDEO IN VIDEO IN AUDIO IN DV IN R L/MONO
Connection for camcorder
etc. (
➡ page 35)
Skip the specified time/Display the television
image as a picture-in-picture ( ➡ page 17, 23)
Disc tray ( ➡ page 16, 22) Remote control signal sensor/
Start recording (
➡ page 16)
Display ( ➡ below)
Stop ( ➡ page 16, 23)
Time Slip indicator ( ➡ page 17)
Standby/on switch ( Í /I) ( ➡ page 10, 11)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
SD/PC card slots ( ➡ page 26)
Start play
( ➡ page 22)
Lights when the DVD, SD or PC
drive is selected
Channel select
(
➡ page 16)
Skip/Slow/Search
(
➡ page 23)
Open/close disc tray ( ➡ page 16, 22)
Connection for digital
video (DV) camcorder
(
➡ page 35)
Select drive ( ➡ page 16, 22, 27)
The unit’s display
EXT Link
SD PC XP
SP
LP
EP
DVD
VCD.MIX
R - AM
REC PLAY
REC PLAY PLAY REC
Main display section
Disc type
Recording Playback Recording/Playback
D.MIX (multi-channel DVD-Audio only)
When lit:
down-mixed audio is played.
When off: the disc prevents down-mixing so only
the two front channels can be played.
Linked timer recordings
with external equipment
indicator
Recording mode
Timer recording indicator Transferring (dubbing) in progress indicator
Card indicator
