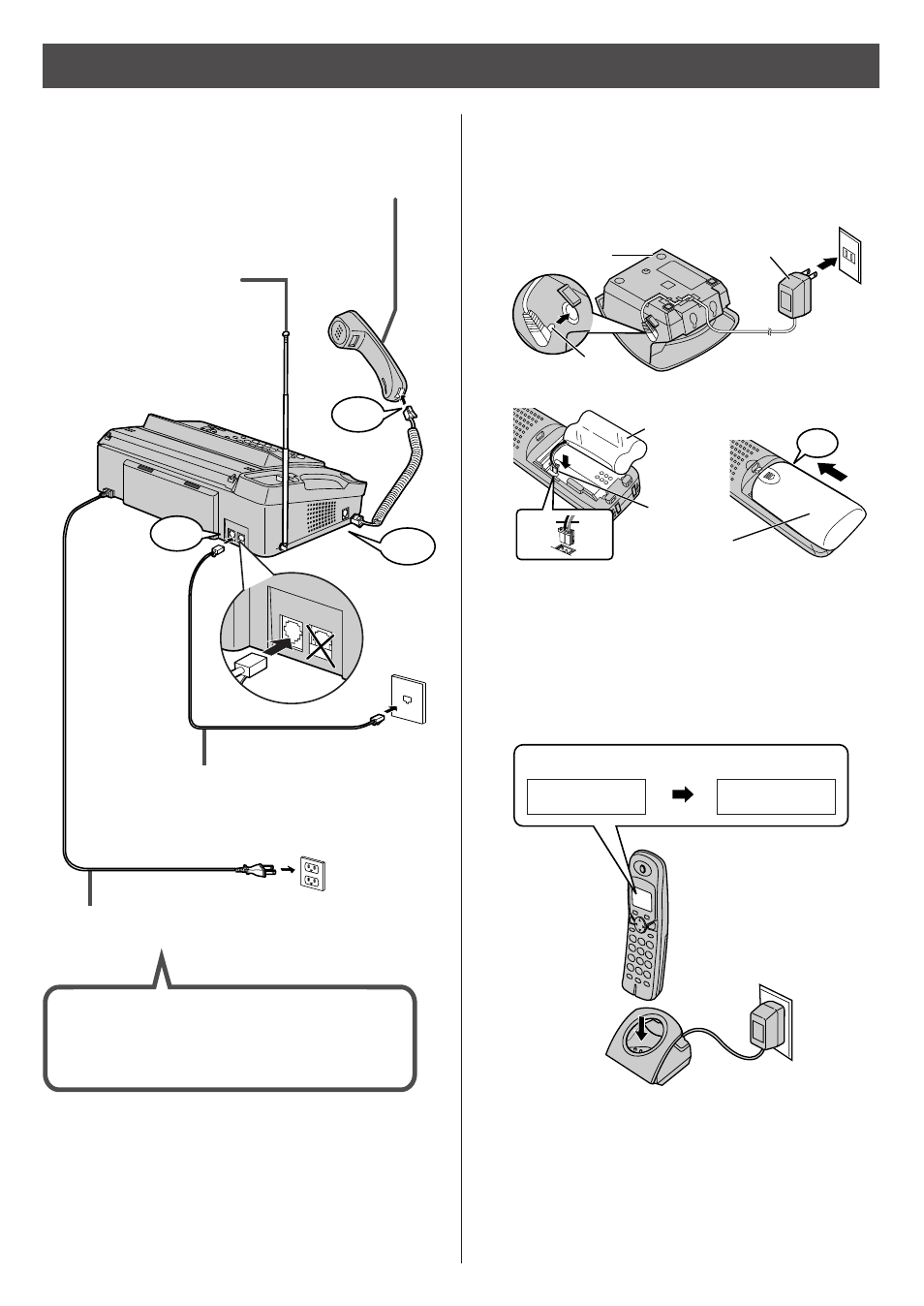

Connecting the main unit
Installations and connections
3
Charge the battery in the charger for 10 hours.
Plug
Charger
AC adaptor
Power outlet
(AC 100 V)
Black
Red
Connector
Battery
Click
Battery cover
Setting up the portable handset
1
2
●
After your Panasonic battery is fully charged,
it will last up to about 7 hours of conversation.
Charging completed.
While charging.
Power cord
Telephone line cord
Wall jack
Power outlet
(AC 100V)
2
Raise the antenna.
3
Connect the telephone line
cord (Supplied accessory).
4
Connect the power cord.
Click
1
Connect the cord and place the handset on the
main unit.
Click
Click
After the Power On...
This unit will automatically select the dialing
mode (Tone/Pulse).
