Connecting with wireless LAN
Easy Wireless Set Up
Weak
↑
↓
Strong
There are 3 different connection methods, “S-MAP” (Projector Signal Map) Connection, “1-4/U” Connection, and “PC Search”
Connection.
These connections enable easy search and connection to the projector.
(Refer to “1-4/U” connection on page 19 to establish an easy wireless connection with projectors that have no S-MAP function.)
• [S-MAP] Connection: Search and connect to the projectors set up using [Network Number] [S-MAP] (See page 53).
Connectable projectors are displayed in order of wireless reception strength. (See page 18).
Operation is performed in [S-MAP] or [S-MAP] (list display) view on the window.
• [1-4/U] Connection: Search and connect to the projectors set up using [Network Number] [1]-[4] or [USER1]-[USER3].
Projectors that can be connected to are displayed in a list (See page 19).
Operation is performed in [1-4/U] view on the window.
• [PC Search] Connection: Use the [Computer search] function on the projector to search and connect (See page 20).

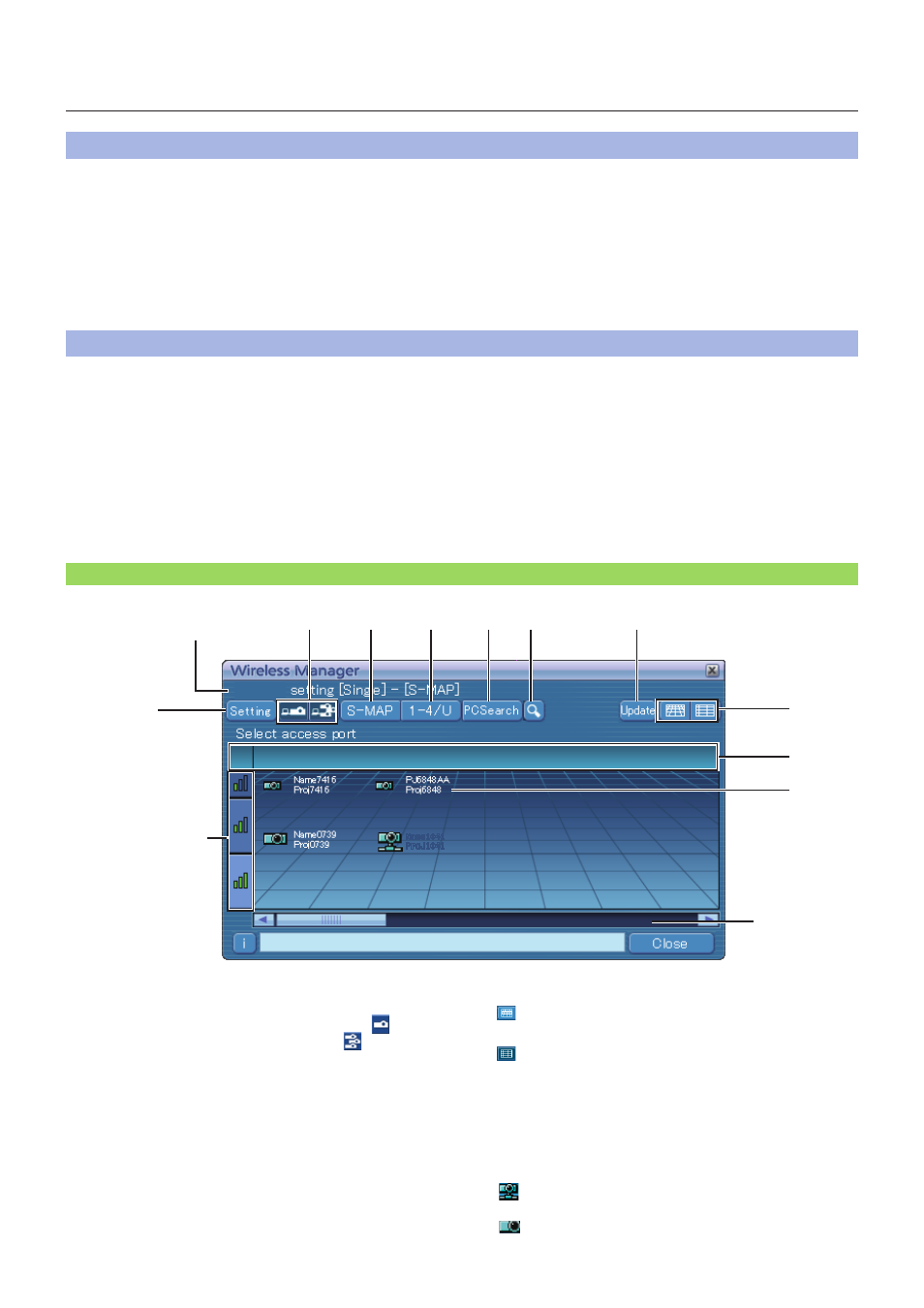

Parts name in search screen
0COG
2TQL
Current
H
B C D E F G
Current settings
Signal strength level
A
A
Setting menu display
Choose to display or hide the B to F buttons
B
Access Devices (See pages 34, 40, 42)
When only one projector is connected, select [ ]. When
multiple projectors are connected, select [ ].
※ Multiple projectors [(Multiple projectors icon)] are
available when “1-4/U” is selected.
C S-MAP (See page 18)
Display window – [S-MAP].
D
1-4/U (See page 19)
Display window – [1-4/U].
E
PC Search (See page 20)
Display window.
F
Other search (See page 29)
From the projectors that are currently switched on, search
for the projector of specified IP address, domain name,
and ID.
G
Updates the list of found projectors.
H
Switching Display Window
: window – [S-MAP] is displayed.
(Upper figure)
: window – [S-MAP] (list display)
is displayed. (See page 16)
I
Found projectors
• Projector found on a wired LAN
• Projector found using [U (user)]
• Projectors searched by a network number of 1 to 4.
J
Projectors searched and found by S-MAP.
The name and ID of projectors are displayed.
represents the projectors that were searched and
found through wired LAN.
represents the projectors that were searched and
found through wireless LAN.
n
window – [S-MAP] (See page 18)
Scrollbar
I
Preparations
Make sure or prepare for the following items:
A
The wireless LAN adapter is recognized. (See page 72)
• The wireless LAN adapter you want to use is enabled. (Otherwise, enable it.)
• Make sure the power supply for the wireless LAN adapter is turned on; the hardware switch or the software setting might
have turned it off.
B
When using it via the infrastructure connection: Make sure the network setting for the projector has been done by the
administrator. (For detailed information, refer to [USER] setting on page 53.)
C
If you log in with [User authority], select a projector network number from [USER1] to [USER3]. (For detailed information, refer
to [USER] setting on page 53.)
J
