Connecting a USB device for Advanced
MCACC output
When using Auto MCACC (page 69) or Acoustic
Calibration EQ Professional (page 73) to calibrate the
reverb characteristics of your listening room, the 3D
graphs of the reverb characteristics in your listening
room (before and after calibration) can be checked on a
computer screen.
The various MCACC parameters can also be checked on
the computer. MCACC data and parameters are
transferred from this receiver to a USB device and by
connecting the USB device to a computer, the data is
imported via the MCACC software in the computer.
The MCACC software to output the results is available
from the support area of the Pioneer website (http://
www.pioneerelectronics.com/PUSA/
Home+Entertainment+Custom+Install). Instructions
for using the software are also available here. If you have
any questions regarding, please contact the Customer
Support Division of Pioneer.
See the documentation provided with the Advanced
MCACC PC Display Application Software for more
information.
• For the USB device connection and operations, see
Output MCACC data on page 76
1
.

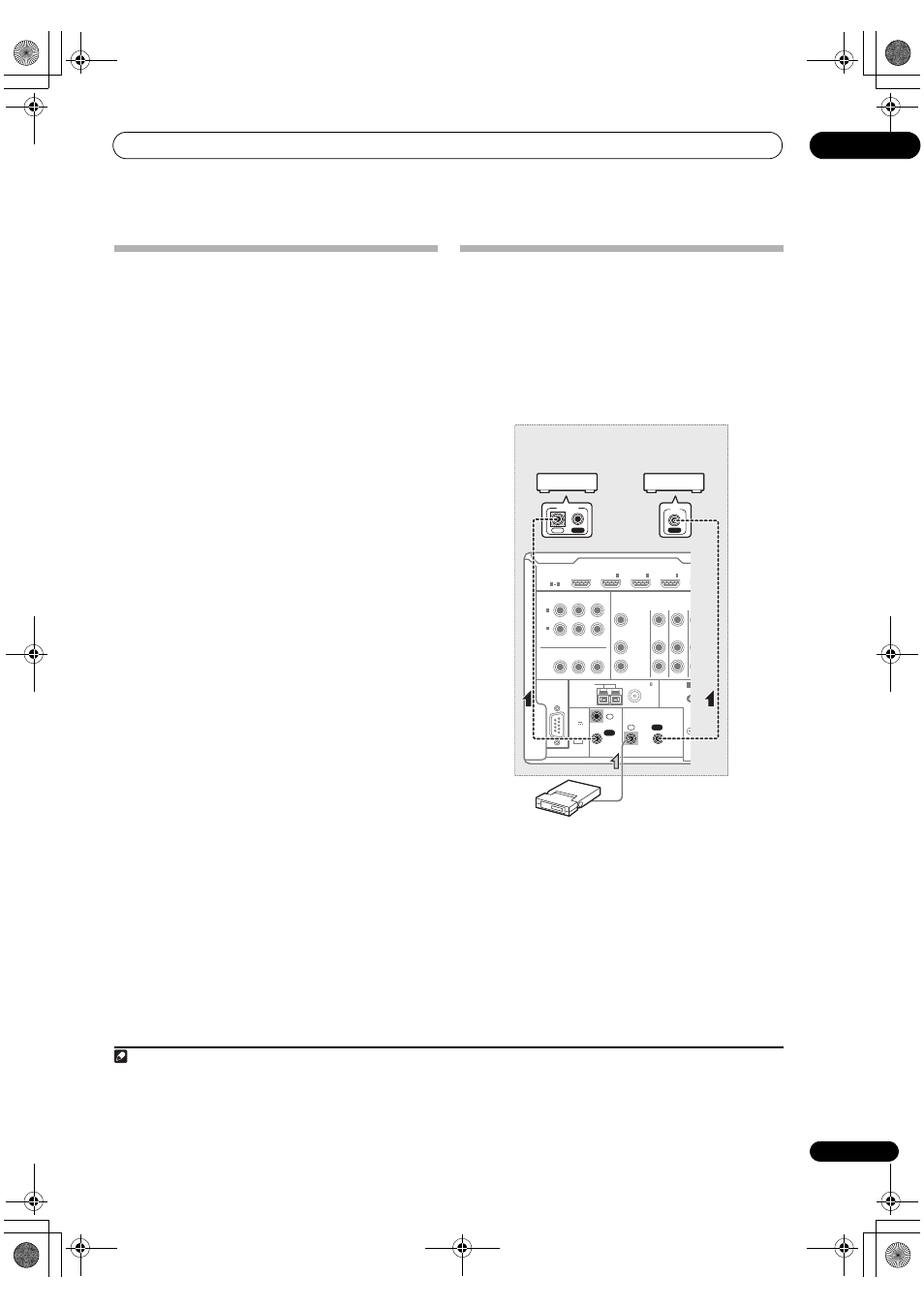

Connecting an IR receiver
If you keep your stereo components in a closed cabinet or
shelving unit, or you wish to use the sub zone remote
control in another zone, you can use an optional IR
receiver (such as a Niles or Xantech unit) to control your
system instead of the remote sensor on the front panel of
this receiver.
2
1
Connect the IR receiver sensor to the IR IN jack on
the rear of this receiver.
2
Connect the IR IN jack of another component to the
IR OUT jack on the rear of this receiver to link it to the
IR receiver.
Please see the manual supplied with your IR receiver for
the type of cable necessary for the connection.
• If you want to link a Pioneer component to the IR
receiver, see Operating other Pioneer components
with this unit’s sensor below to connect to the
CONTROL jacks instead of the IR OUT jack.
Note
1 The various parameters and the reverb characteristics data used for display on the computer are not cleared when the power is turned off (see
Output MCACC data on page 76).
2 • Remote operation may not be possible if direct light from a strong fluorescent lamp is shining on the IR receiver remote sensor window.
• Note that other manufacturers may not use the IR terminology. Refer to the manual that came with your component to check for IR
compatibility.
• If using two remote controls (at the same time), the IR receiver’s remote sensor takes priority over the remote sensor on the front panel.
