Controls and displays 02
11
En
Chapter 2:
Controls and displays

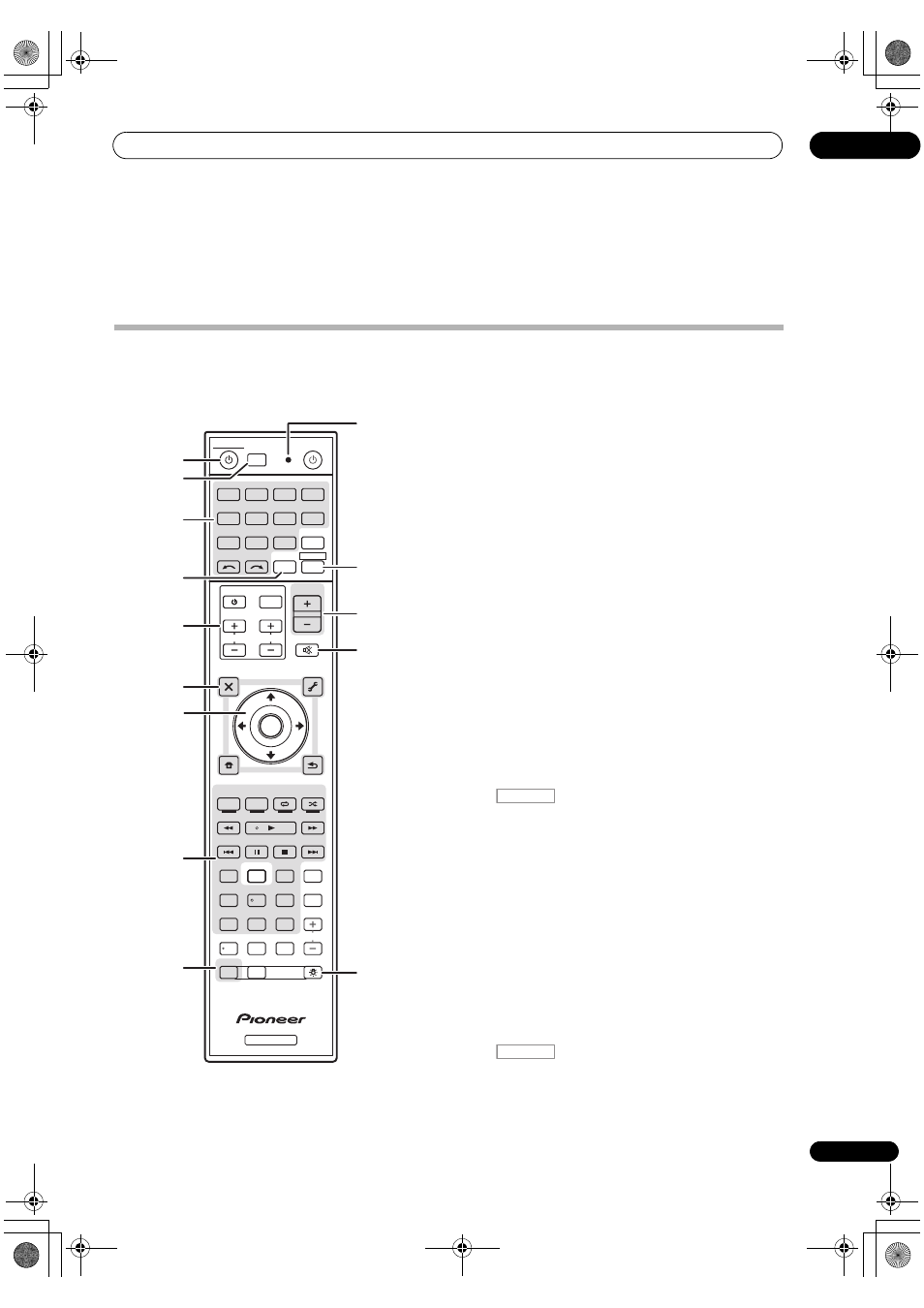

Remote control
This section explains how to operate the remote control
for the receiver. The remote has been conveniently color-coded according
to component control using the following system:
• White – Receiver control, TV control
• Blue – Other controls (See page 39, 40, 43, 44, 46 and
66.)
1  RECEIVER
This switches between standby and on for this receiver.
2 MULTI OPERATION – Use to perform multi
operations (page 64).
R.SETUP – Use to input the preset code when making
remote control settings and to set the remote control
mode (page 62).
3 Input function buttons
Press to select control of other components (page 62).
(The XM button cannot be used with this receiver.)
Use INPUT SELECT to select the input function (page 39).
4 TV CTRL
Set the preset code of your TV’s manufacturer when
controlling the TV (page 62).
5 TV CONTROL buttons
These buttons are dedicated to control the TV assigned to
the TV CTRL button.
6 Receiver setting buttons
Press first to access:
AUDIO PARAMETER – Use to access the Audio
options (page 55).
VIDEO PARAMETER – Use to access the Video
options (page 57).
HOME MENU – Use to access the Home Menu
(pages 35, 37, 52, 69, 78 and 81).
RETURN – Press to confirm and exit the current
menu screen.
7 ////ENTER
Use the arrow buttons when setting up your surround
sound system (see page 69) and the Audio or Video
options (page 55 or 57).
8 Receiver Control buttons
Press first to access:
AUTO/ALC/DIRECT – Switches between Auto
Surround (page 48), Auto Level Control mode and
Stream Direct mode (page 50).
RECEIVER
ZONE 2 ZONE 3 LIGHT
AUTO / ALC /
DIRECT
D.ACCESS
CH LEVEL A.ATT DIMMER
SIGNAL SEL MCACC SLEEP
TV / DTV MPX PQLS
PHASE CTRL STATUS THX
PGM
STEREO
iPod CTRL
HOME
MENU TUNE
TUNE TOOLS LIST
CH
TV CONTROL
INPUT
INPUT SELECT TV CTRL
iPod USB TUNER SIRIUS XM
ADAPTER NET RADIO CD TV
BD DVD
R.SETUP
SOURCE RECEIVER MULTI
OPERATION
DVR/BDR HDMI
RECEIVER
MUTE
MASTER
VOLUME
VOL
PRESET
TOP MENU
BAND GUIDE
T.EDIT
VIDEO
PARAMETER
AUDIO
PARAMETER
ENTER PRESET
RETURN CATEGORY
MEMORY
STANDARD
MENU
ADV SURR
AUDIO
INFO
CLASS
ENTER
DISP
HDD DVD
5 4 6
8
0
7 9
1 3
/ CLR
CH
HDMI OUT
2
HDMI OUT
2
HDMI OUT
2
1
2
3
4
8
9
5
6
7
10
11
12
13
14
RECEIVER
RECEIVER
