Connecting your equipment 03
29
En

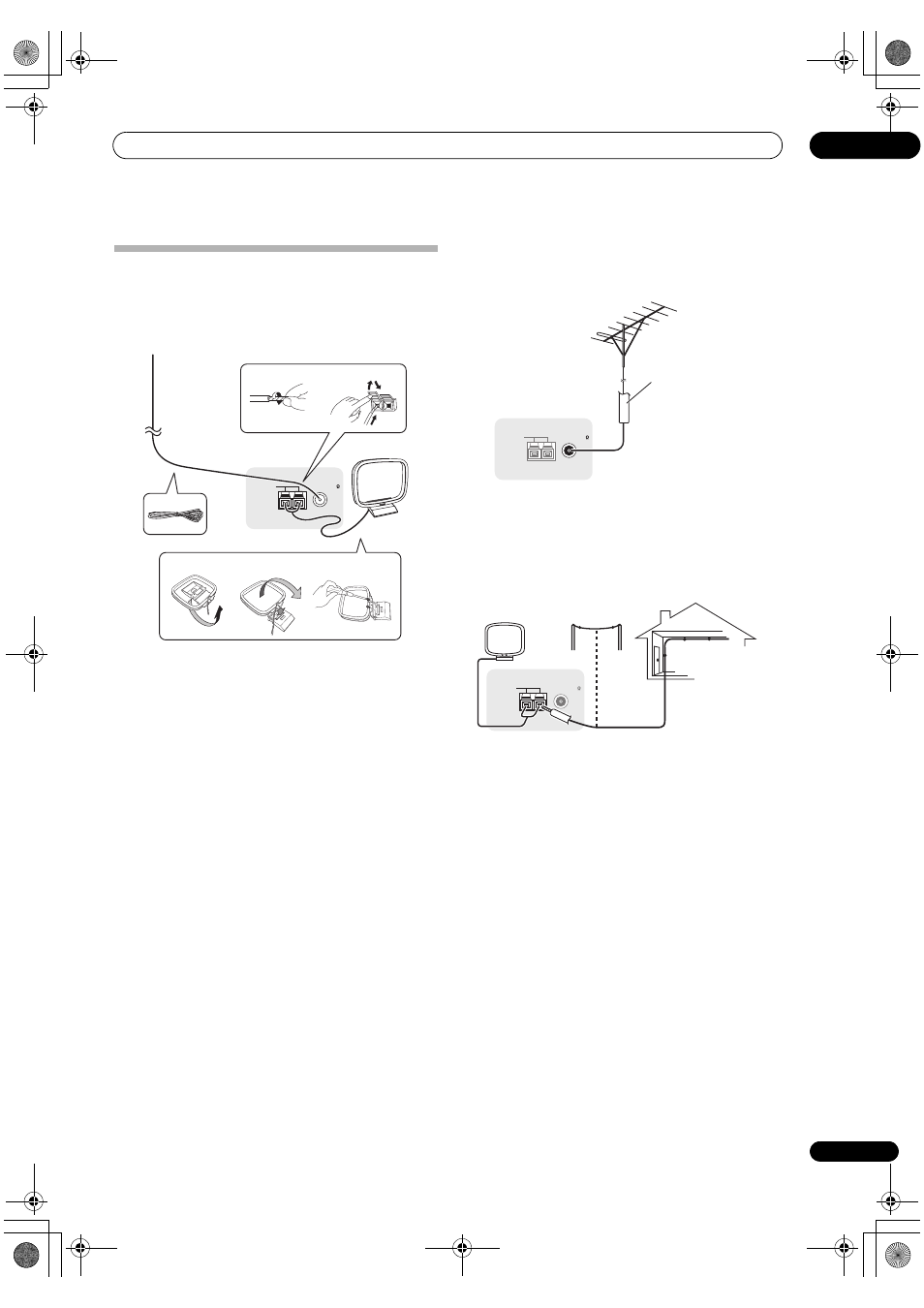

Connecting AM/FM antennas
Connect the AM loop antenna and the FM wire antenna
as shown below. To improve reception and sound quality,
connect external antennas (see Connecting external
antennas below).
1 Pull off the protective shields of both AM antenna
wires.
2 Push open the tabs, then insert one wire fully into
each terminal, then release the tabs to secure the AM
antenna wires.
3 Fix the AM loop antenna to the attached stand.
To fix the stand to the antenna, bend in the direction
indicated by the arrow (fig. a) then clip the loop onto the
stand (fig. b).
• If you plan to mount the AM antenna to a wall or other
surface, secure the stand with screws (fig. c) before
clipping the loop to the stand. Make sure the
reception is clear.
4 Place the AM antenna on a flat surface and in a
direction giving the best reception.
5 Connect the FM wire antenna into the FM antenna
socket.
For best results, extend the FM antenna fully and fix to a
wall or door frame. Don’t drape loosely or leave coiled up.
Connecting external antennas
To improve FM reception, connect an external FM
antenna to FM UNBAL 75
Ω.
To improve AM reception, connect a 5 m to 6 m (16 ft. to
20 ft.) length of vinyl-coated wire to the AM LOOP
terminals without disconnecting the supplied AM loop
antenna.
For the best possible reception, suspend horizontally
outdoors.
ANTENNA
FM UNBAL 75 AM LOOP
3
4
5
fig. a fig. b fig. c
1 2
ANTENNA
FM UNBAL 75 AM LOOP
75 Ω coaxial cable
ANTENNA
FM UNBAL 75 AM LOOP
Outdoor antenna
Indoor antenna
(vinyl-coated wire)
5 m to 6 m
(16 ft. to 20 ft.)
