Connecting your equipment 03
23
En
Connecting your TV and playback components

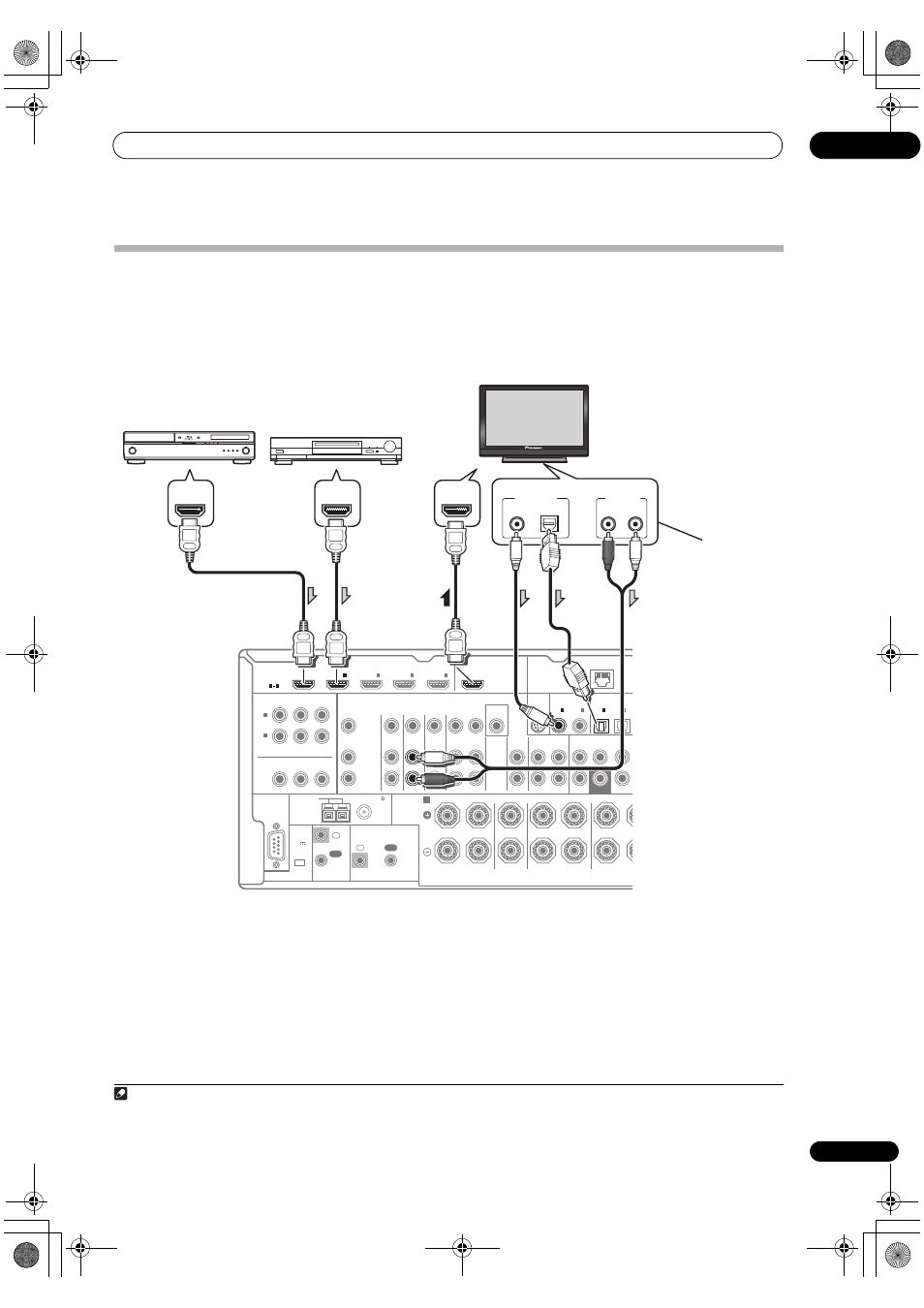

Connecting using HDMI
If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray disc player (BD), etc.), you can connect it to
this receiver using a commercially available HDMI cable.
If the TV and playback components support the Control with HDMI feature, the convenient Control with HDMI
functions can be used (see Control with HDMI function on page 52).
• For input components, connections other than HDMI
connections are also possible (see Connecting your
DVD player with no HDMI output on page 24).
• If you want to listen to the sound of the TV over the
receiver, connect the receiver and TV with audio
cables. 1
RS-232C
HDMI
SPEAKERS
ASSIGNABLE
COAXIAL COMPONENT VIDEO ASSIGNABLE OPTICAL
ASSIGNABLE ASSIGNABLE
MONITOR
OUT
IN
Y
P R Y
CD-R/TAPE
ANTENNA
FM UNBAL 75 AM LOOP
IN
CD
VIDEO
MONITOR
AUDIO
IN OUT
OUT
ZONE2
OUT
DVD
IN
TV/SAT
IN
VIDEO
IN
DVR/BDR
OUT IN
P B
P R P B
1
IN BD
IN 1
IN
2
IN
3
OUT
A R L R L R SURROUND BA SURROUND CENTER FRONT
1 4
(DVD)
IN 1
(DVD)
IN 1
(TV/SAT)
IN 2
(DVR/BDR)
FRONT CENTER SURROUND
IN 2
(CD)
IN 2
(DVR/BDR)
CONTROL EXTENSION
IN
IN
OUT
OUT
SUBWOOFER
IN
4 LAN (10/100)
(OUTPUT
5 V
150 mA
MAX)
SIRIUS
IN
Class 2 Wiring
IR
DIGITAL OUT
COAXIAL OPTICAL ANALOG R L
AUDIO OUT
HDMI IN HDMI OUT HDMI OUT
Other HDMI/DVI-
equipped component HDMI/DVI-compatible
Blu-ray disc player
HDMI/DVI-compatible
monitor
Select one
This connection is
required in order to
listen to the sound of
the TV over the
receiver.
1
Note
1 When the TV and receiver are connected by HDMI connections, if the TV supports the HDMI Audio Return Channel function, the sound of the
TV is input to the receiver via the HDMI terminal, so there is no need to connect an audio cable. In this case, set TV Audio at HDMI Setup to
via HDMI (see HDMI Setup on page 52).
