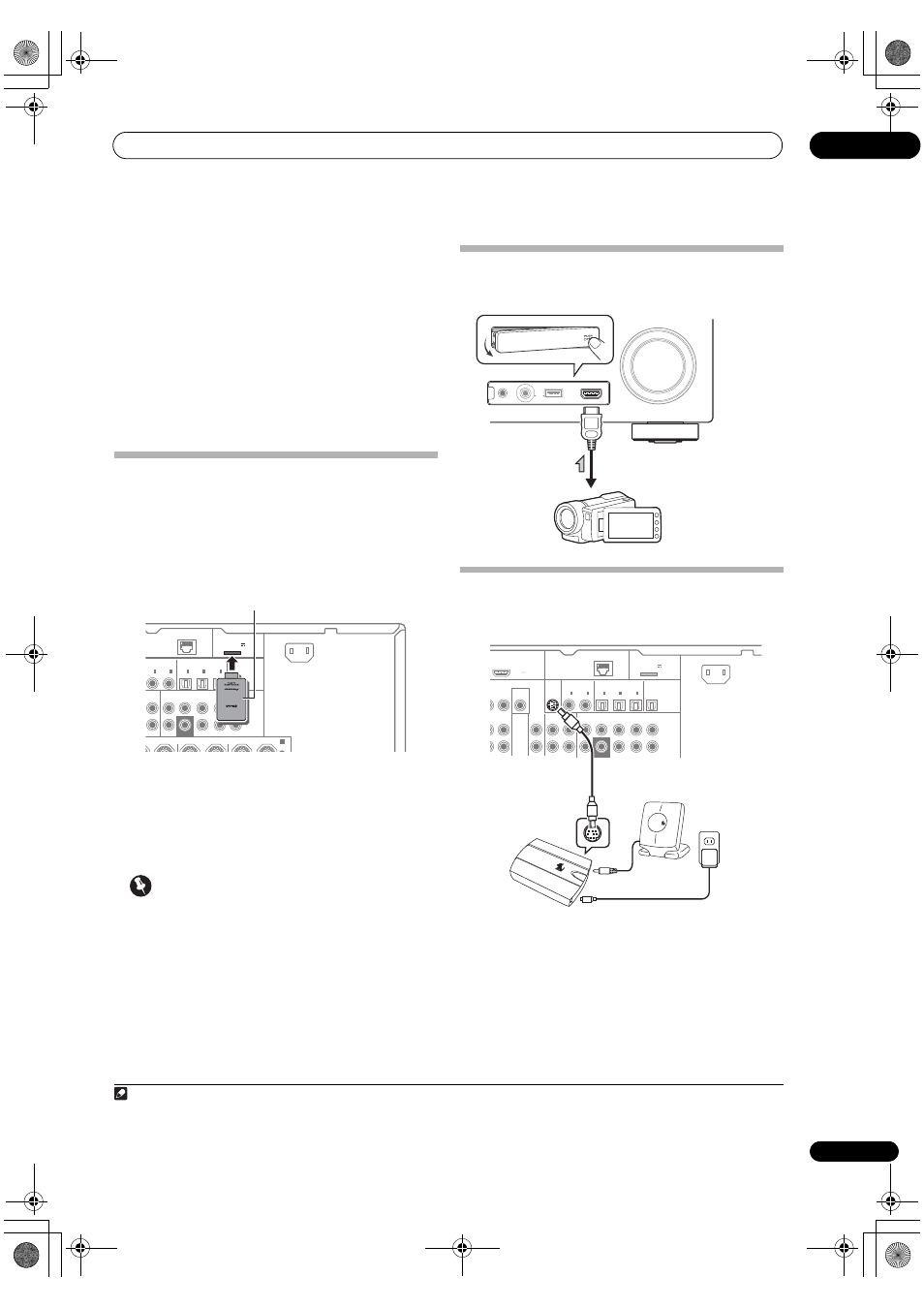

Connecting your equipment
03
31
En
Connect the LAN terminal on this receiver to the LAN
terminal on your router (with or without the built-in DHCP
server function) with a straight LAN cable (CAT 5 or
higher).
Turn on the DHCP server function of your router. In case
your router does not have the built-in DHCP server
function, it is necessary to set up the network manually.
For details, see Network Setup menu on page 81.
LAN terminal specifications
LAN terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ethernet jack
10BASE-T/100BASE-TX
Connecting Optional
Bluetooth
®
ADAPTER
When the Bluetooth ADAPTER (Pioneer Model No. AS-
BT100)
1
is connected to this receiver, a product equipped
with Bluetooth wireless technology (portable cell phone,
digital music player, etc.) can be used to listen to music
wirelessly.
2
•
Switch the receiver into standby and connect
Bluetooth
ADAPTER to the ADAPTER PORT.
• For instructions on playing the Bluetooth wireless
technology device, see Pairing the Bluetooth
ADAPTER and Bluetooth wireless technology device
on page 47.
Important
• Do not move the receiver with the Bluetooth
ADAPTER connected. Doing so could cause damage
or faulty contact.
Connecting an HDMI-equipped
component to the front panel input
Connecting a SiriusConnect™ tuner
To receive SIRIUS Satellite Radio broadcasts, you will
need to activate your SiriusConnect™ tuner.
You will also need to connect the antenna and AC
adapter to the SiriusConnect™ tuner.
For instructions on playing the SIRIUS Radio, see
Listening to Internet radio stations on page 44.
Note
1 The Bluetooth ADAPTER (AS-BT100) is sold separately.
2 • The Bluetooth wireless technology enabled device must support A2DP profiles.
• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.
COAXIAL
OPTICAL
ASSIGNABLE
ASSIGNABLE
TAPE
AC IN
IN
B
L
R
L(Single)
SURROUND BACK
URROUND
R
R
L
L
FRONT HEIGHT / FRONT WIDE/
IN
1
(DVD)
IN
1
(TV/SAT)
IN
2
(DVR/BDR)
IN
OUT
FRONT
CENTER
SURROUND SURR BACK
(Single)
FH/FW
3
(VIDEO)
IN
2
(CD)
SUBWOOFER
LAN (10/100)
(OUTPUT 5 V
100 mA MAX)
ADAPTER PORT
PRE OUT
Bluetooth® ADAPTER (sold separately)
MASTER
VOLUME
MCACC SETUP MIC
USB
iPod
iPhone
VIDEO CAMERA
HDMI 5
CONTROL
ON / OFF
Video camera, etc.
COAXIAL
OPTICAL
ASSIGNABLE
ASSIGNABLE
CD-R/TAPE
AC IN
IN
CD
VIDEO
MONITOR
AUDIO
IN
OUT
OUT
DVR/BDR
T
IN
OUT
R
L
IN
1
(DVD)
IN
1
(TV/SAT)
IN
2
(DVR/BDR)
IN
OUT
FRONT
CENTER
SURROUND SURR BACK
(Single)
FH/FW
3
(VIDEO)
IN
2
(CD)
SUBWOOFER
LAN (10/100)
(OUTPUT 5 V
100 mA MAX)
ADAPTER PORT
PRE OUT
SIRIUS
IN
SIRIUS
H
SIRIUS
H
Antenna
SiriusConnect™
HOME tuner
AC adapter
