To Replace Regulator
1. Release all air pressure from air tank. See "To Drain Tank" in the
"Maintenance" section.
2. Set the On/Auto/Off lever to "Off" and unplug unit.
3. Using an adjustable wrench remove the outlet pressure gauge and quick
connect from the regulator.
4. Using an adjustable wrench remove pressure relief tube.
5. Remove the regulator.
6. Apply pipe sealant tape to the nipple on the standpipe.
7. Assemble the regulator and orient as shown.
NOTE: Arrow indicates flow of air. Make sure it is pointing in the direction of
air flow.
8. Reapply pipe sealant to outlet pressure gauge and quick connect.
9. Reassemble outlet pressure gauge, pressure relief tube and quick connect.
Orient outlet pressure gauge to read correctly. Tighten quick connect with
wrench.

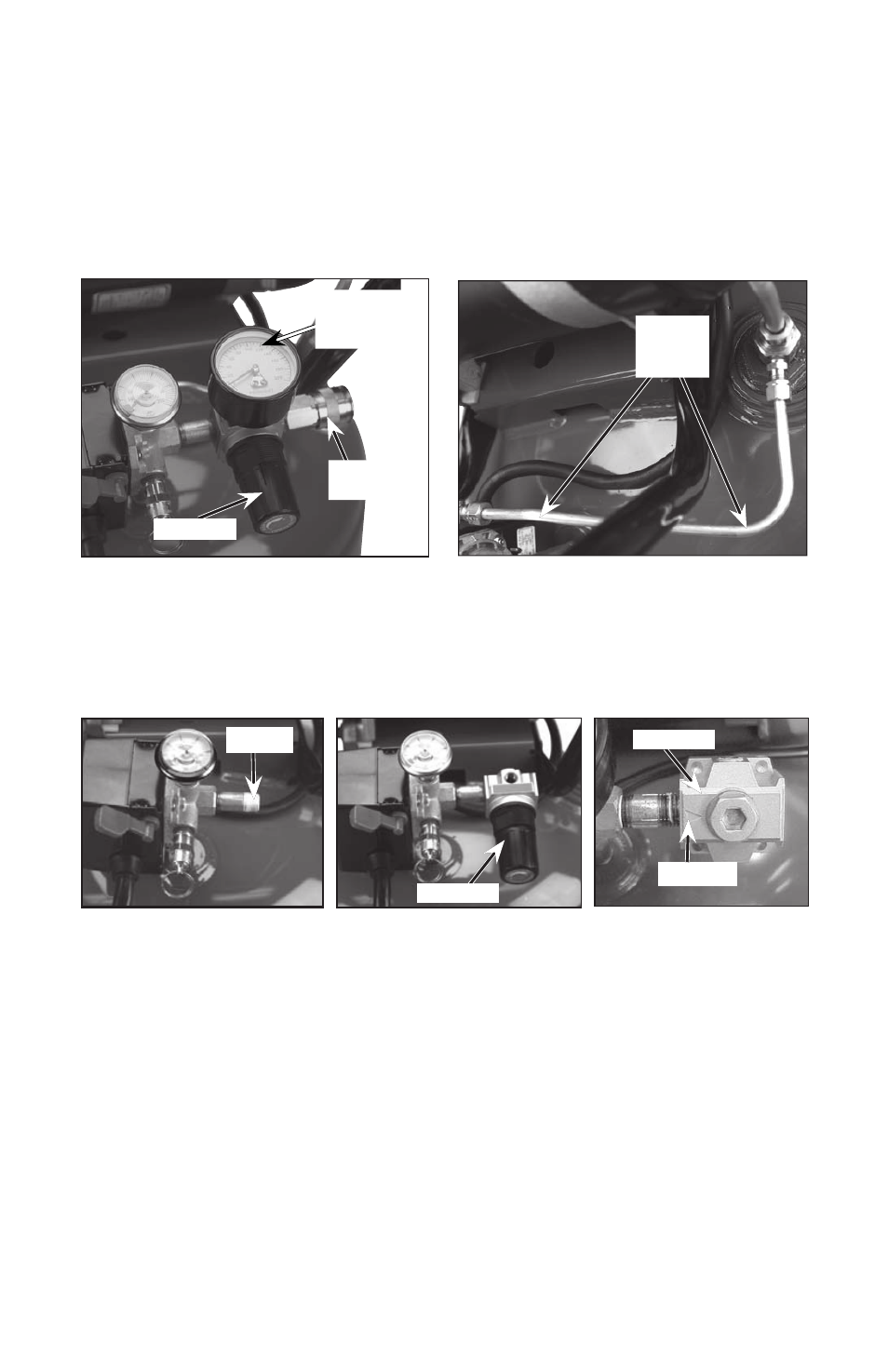

Regulator
Arrow
Regulator
Nipple Regulator
Outlet
Pressure
Gauge
Quick
Connect
Pressure
Relief
Tube
