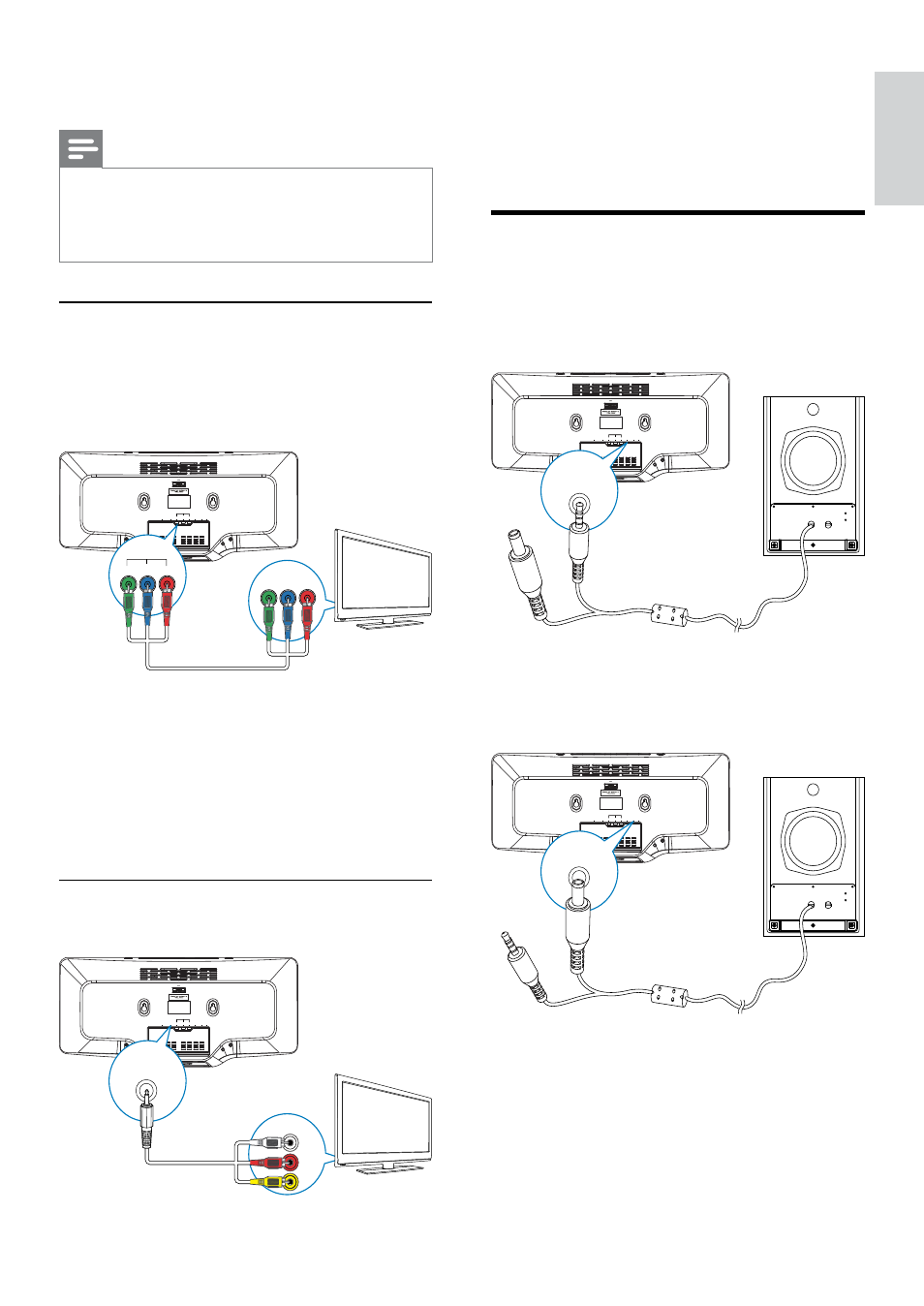

Connect the supplied composite video
cable to:
the • AV OUT socket on this unit.
the video input socket on the TV. •
Connect Subwoofer
1
Insert the grey audio plug from the
subwoofer into the SUBWOOFER OUT
socket on the main unit.
2
Connect another grey plug (DC input
plug) from the subwoofer to the DC IN
socket on the main unit.
FM
ANT DC
IN SUB WOOFER OUT Yr/Cr Yb/Cb Y AV-
OUT HDMI
COMPONENT OUT
TO MAIN SET AC~
SUB
WOOFER
OUT
FM
ANT DC
IN SUB WOOFER OUT Yr/Cr Yb/Cb Y AV-
OUT HDMI
COMPONENT OUT
TO MAIN SET AC~
DC
IN
the • HDMI socket on this unit.
the HDMI input socket on the TV. •
Note
If your TV has only a DVI connection, connect •
through a HDMI/DVI adaptor. An extra
audio connection is needed to complete this
connection.
Option 2: Connect through
component video
Connect a progressive scan TV through
component video for higher quality video.
1
Connect component video cable (red/
blue/green - not supplied) to:
the • COMPONENT OUT(Y Pb/Cb
Pr/Cr) sockets on this unit.
the component input sockets on the
•
TV.
Option 3: Connect through
composite video
FM
ANT DC
IN SUB WOOFER OUT Yr/Cr Yb/Cb Y AV-
OUT HDMI
COMPONENT OUT
TV
Pb Y Pr
Yr/Cr Yb/Cb Y
COMPONENT OUT
FM
ANT DC
IN SUB WOOFER OUT Yr/Cr Yb/Cb Y AV-
OUT HDMI
COMPONENT OUT
TV
AV -
OUT
AUDIO IN
