MAINTENANCE
Clutch System
Drive Belt Removal
1. Stop the engine after operating in a forward motion.
NOTICE: Do not attempt to remove the drive belt after operating in reverse. The
snowmobile must be stopped after forward motion to prevent damage
to components during belt removal. Rotate the driven clutch
counterclockwise 1/4 turn by hand to ensure forward engagement
before attempting to remove the belt.
Tip: For easier accessibility, make sure the clutch tool access hole is visible
between the 11:00 and 2:00 positions of the clutch sheave.
2. Turn the ignition key off.
Wait for the engine to come
to a complete stop.
3. Lock the parking brake.
4. Open the hood.
5. Remove the left side panel.
6. Install an L-wrench into the
open threaded access hole in
the outer sheave of the
clutch.
7. Turn the wrench clockwise
until the sheaves open far
enough to remove the belt.

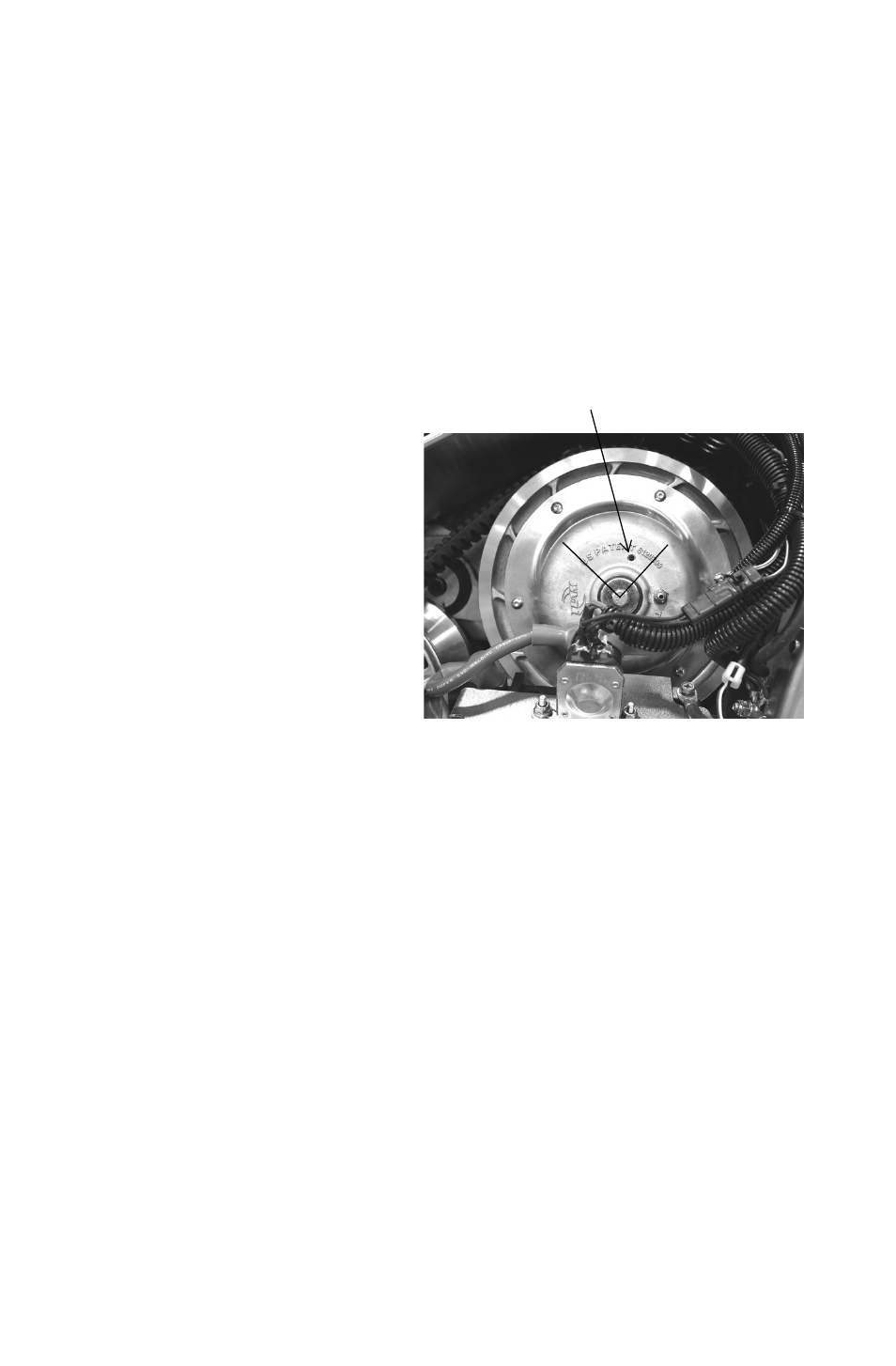

11:00 2:00
Access Hole
