7 Mounting Angle
7 Angle Switching Dial Adjustment
When the mounting angle is horizontal to the ground surface, set the dial to “H” position.
When the mounting angle is vertical to the ground surface, set the dial to “V” position.

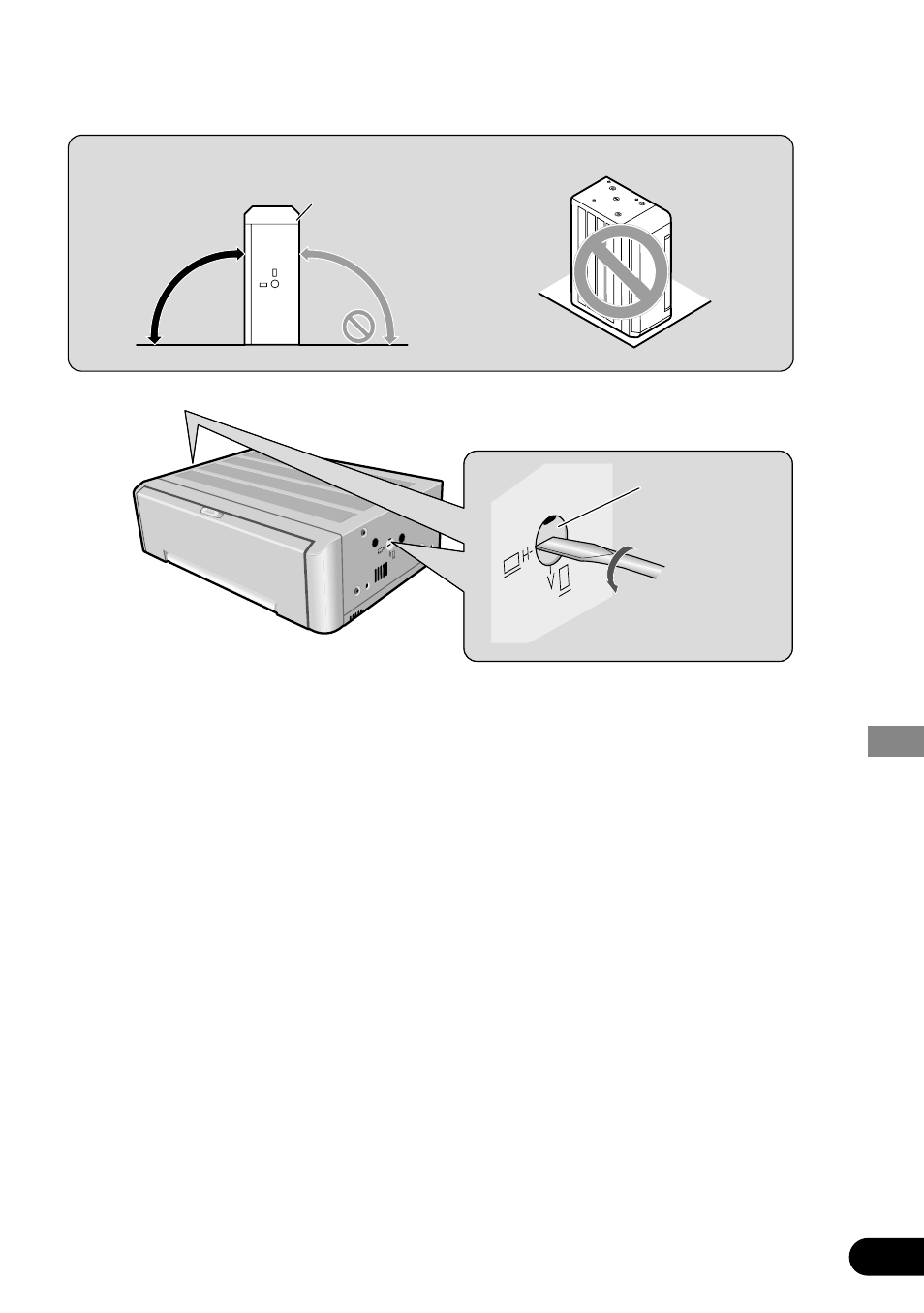

Angle switching
dial
The player cannot
be installed in this
direction.
Only 0 or 90
degree installation
is available.
Top
2 steps
The angle switching dial must be set on both
sides of the player to the same position.
