69
Installation

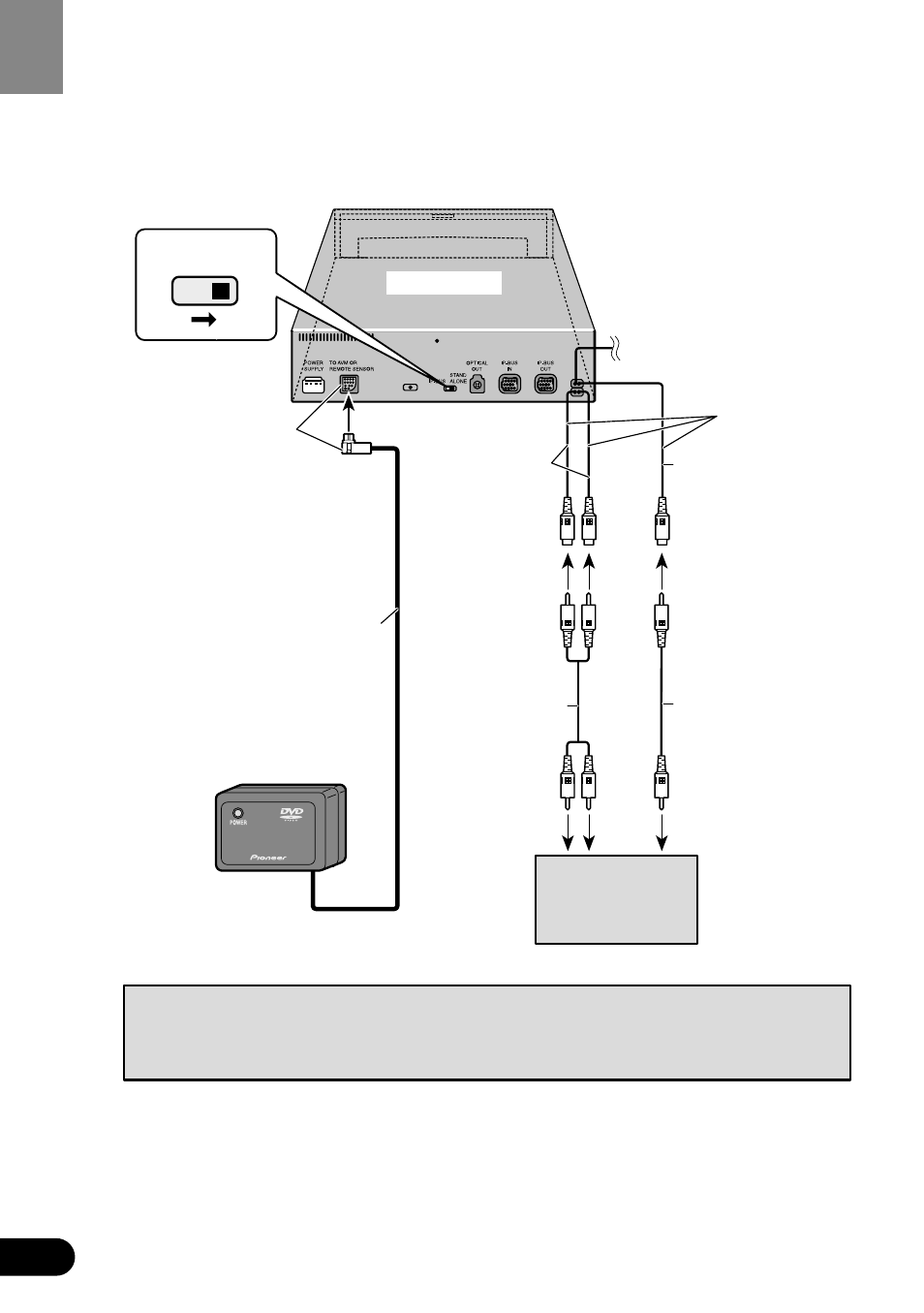

7 When connecting the display with RCA input jacks
Video output Audio outputs
RCA cable
(sold separately)
RCA cable
(sold separately)
To audio inputs To video input
Black
6 m (19 ft. 8 in.)
15 cm (5/8 in.)
Left
(White) Right
(Red)
This Product
Remote sensor
(supplied with
the CD-R7)
Connecting a rear display
Instead of video output for viewing on a front display, you can connect for video output enabling
viewing on a rear display (for passengers in the rear of the car). If you decide to use a rear display,
be sure to follow the warnings on the next page.
Yellow
(FRONT VIDEO
OUTPUT)
Display with RCA
input jacks
STAND
ALONE
IP-BUS
