65

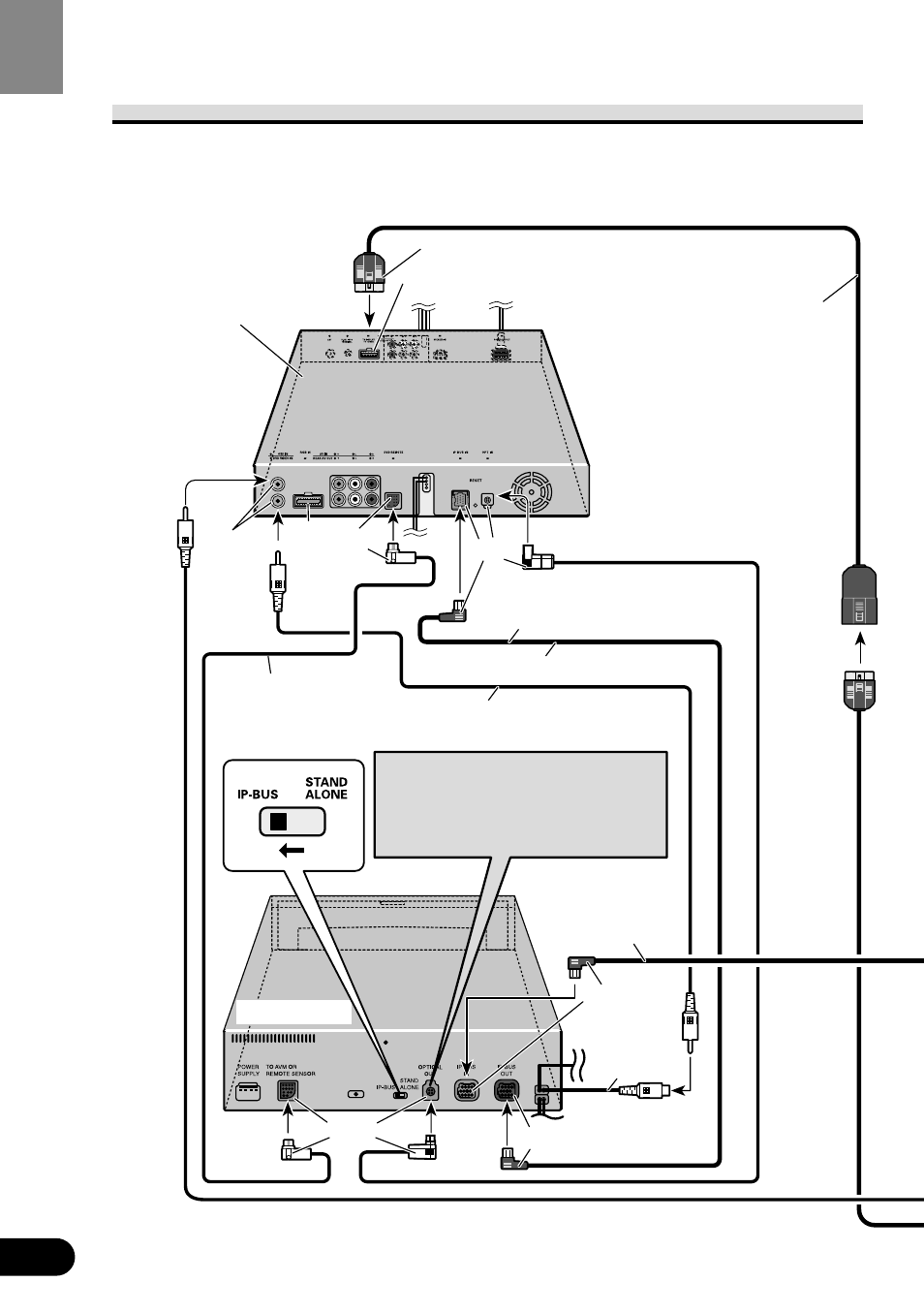

Installation Connection Diagram
7 When connecting the Multi-Channel AV Master Unit
Multi-Channel AV
Master Unit (e.g.
AVM-P9000R)
(sold separately) Gray
Green
Gray
Green
AV cable (supplied
with the Multi-Channel
AV Master Unit)
RCA cable (sold separately)
IP-BUS cable (supplied )
Blue
Black
Red
Yellow
Black
DVD control cable
(supplied with the
Multi-Channel AV
Master Unit)
IP-BUS cable
(supplied with the
Multi-Channel AV
Master Unit)
Optical cable
(supplied with the Multi-
Channel AV Master Unit)
6 m (19 ft. 8 in.)
15 cm (5/8 in.)
This Product
Blue
This optical digital output jack is for
connection to the optical digital
input jack of a Multi-Channel AV
Master Unit.
Note:
•
Yellow
(FRONT VIDEO
OUTPUT)
Black
