7

Start here

Hem

Upper tubular frame

Upper tubular

frame

Vinyl bindings

Lower frame

CAUTION: Under normal usage, the

catcher material is subject to de te ri o ra tion
and wear and should, therefore, be
checked frequently for replacement. Any
replacement catcher should be checked to
ensure compliance with original man u fac -
tur er's spec i fi

ca tions.

CAUTION: Do not run lawn mower

with out the discharge guard (rear door),
approved grass catcher, clipping de fl ec tor
or mulcher plate in place. Never attempt
to operate mower with the dis charge guard
(rear door) removed or propped open.

TO ATTACH HARD TOP CATCHER
• Open the rear door on mower hous ing.
• Place frame side hooks into slots in

handle brackets.

• Release rear door, allowing it to nest into

top of catcher.

“HARD TOP” GRASS CATCH ER

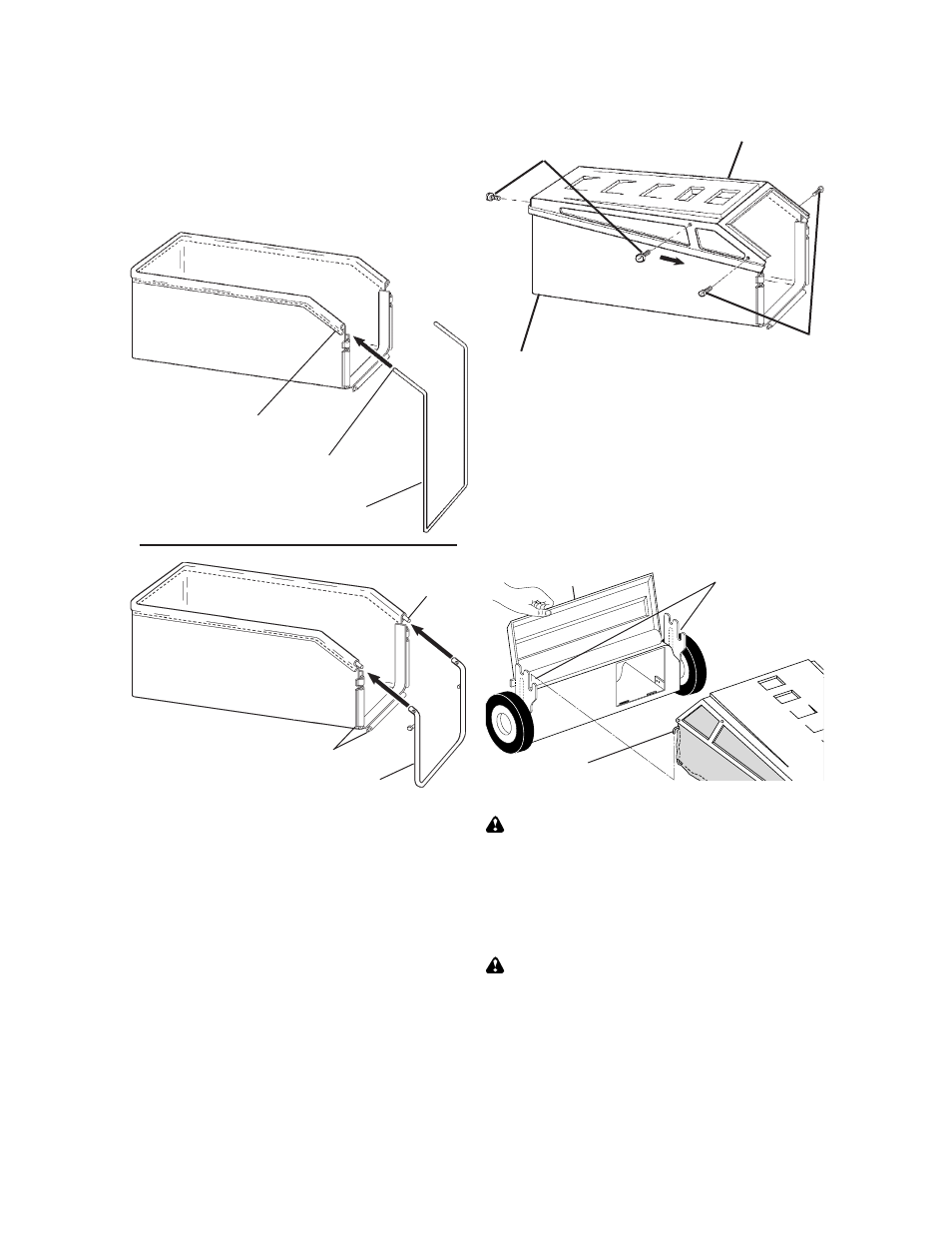

ASSEMBLE FRAME AND BAG
• Thread upper tubular frame into hem of

bag as shown. Be sure angled ends of
frame point downwards.

• Slip lower frame into tubular upper frame

as shown.

• Slip vinyl bindings over frame.

ASSEMBLE TOP TO FRAME AND BAG
NOTE: For ease of assembly, place
catcher top upside down on work sur face.
• Nest bag and frame assembly into

catcher top.

• Install two (2) sharp pointed screws into

rear holes fi rst

and tighten se cure ly.

• Pull catcher bag forward on frame to

remove slack.

• Install two (2) remaining sharp point ed

screws in side holes and tighten se-
curely.

• Align lower frame and catcher top front

holes.

Handle bracket

slots

Rear door

Grass catcher
frame hook

PULL CA

TCH ER

BAG FOR

WARD TO

REMOVE SLA

CK

Sharp pointed screws
(Rear and side holes)

Catcher top

Catcher bag and frame

Blunt pointed screws

(Front holes)

• Install two (2) blunt pointed screws in

front holes and tighten securely.
