“COMBI-CUT” MOWERS
Your lawn mower was shipped ready to be
used as a mulcher. To convert to bagging
or discharging:
REAR BAGGING
• Open rear door and remove mulcher
plate. Store mulcher plate in a safe
place.
• You can now install grass catcher.
• To convert to mulching or discharging
operation, install mulcher plug into rear
discharge opening of mower, mak ing
sure all tabs are seated properly.
SIDE DISCHARGING
• Mulcher plate must be installed into rear
discharge open ing of mower (see above
instructions).
• Open mulcher door and install dis charge
defl ector under door as shown.
• Mower is now ready for discharging
operation.
• To convert to mulching or bagging
operation, dis charge defl ector must be
removed and mulcher door must be
closed.

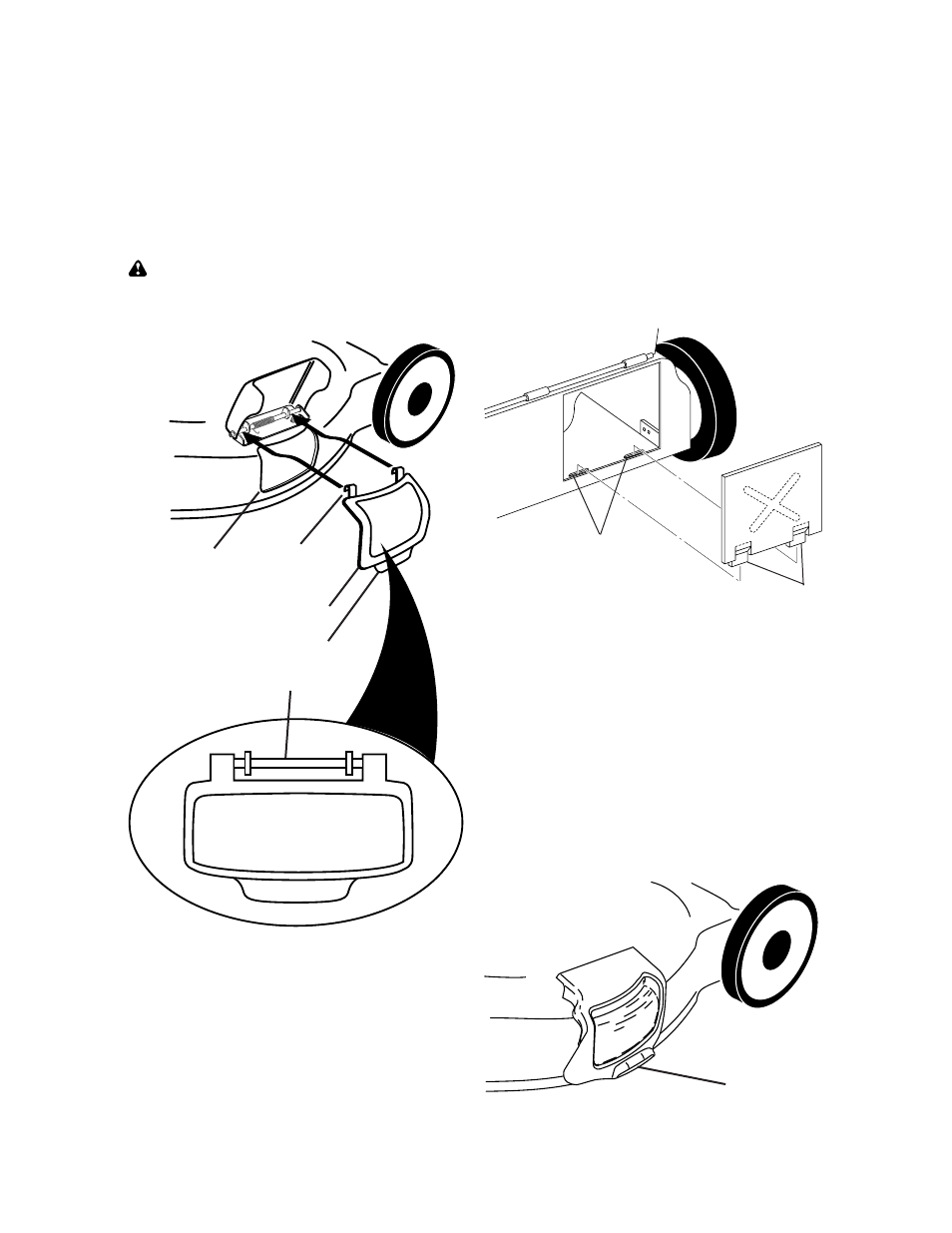

Slots
Mulcher
plate tabs
Mulcher door
MULCHER PLUG TYPE “B”
To convert to mulching operation, mulcher
plug must be installed into discharge open-
ing of mower.
• Open discharge guard.
• Insert tab of mulch plug into housing
opening.
• Align hooks of mulch plug over hinge
rod of discharge guard. Push mulch plug
down until mulch plug is seat ed in hous-
ing opening.
CAUTION: Do not run your lawn mower
without discharge guard, ap proved grass
catcher or mulcher plug in place.
Hooks Housing
opening
Mulch plug
Hinge rod
Tab
