4
CAUTION: Do not operate this lawn
mower without the discharge guard or an
entire approved grass catcher in place.
These guards are for your protection and
are required by the American National
Standards Institute and Consumer Prod-
ucts Safety Com mis sion.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with spark plug.
HOW TO SET UP YOUR LAWN
MOW ER
UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage con trol cables.
2 POSITION / “ADJUSTABLE” HANDLES
• Raise handles until lower handle section
locks into place in operating position.
ASSEMBLY
02584-bs_quantum
02583-bs_classic 02585-bs_sprint
01737-honda
®
02579-briggs
TO REMOVE MOWER FROM CARTON
• Remove all loose parts from carton.
• Remove lawn mower hous ing with care. Avoid touch ing blade under hous ing. Always
wear gloves or other protection when working under or lifting mower.
THINGS TO KNOW BE FORE YOU ASSEMBLE OR OPERATE YOUR LAWN
MOW ER
Do I have a side or rear discharge lawn
mower?
Look for the grass discharge opening on
your mower. If the opening is on the right
side of the mower housing, it is a side
discharge mower. If the opening is at the
back of the mower housing, it is a rear dis-
charge mower. Only rear discharge lawn
mowers have a grass catcher in clud ed with
the mower. Approved grass catchers for
side discharge mow ers may be purchased
from your nearest au tho rized dealer.
Do I have a mulching lawn mower?
Look for the grass discharge opening on
your mower. Raise the discharge guard
(rear door on rear discharge mowers). If
the opening is closed off by a plate, then
your lawn mower is mulcher ready. To
convert to a discharging mower, see the
Operation section of this manual.
LEFT
HAND
SIDE
RIGHT
HAND
SIDE
FRONT

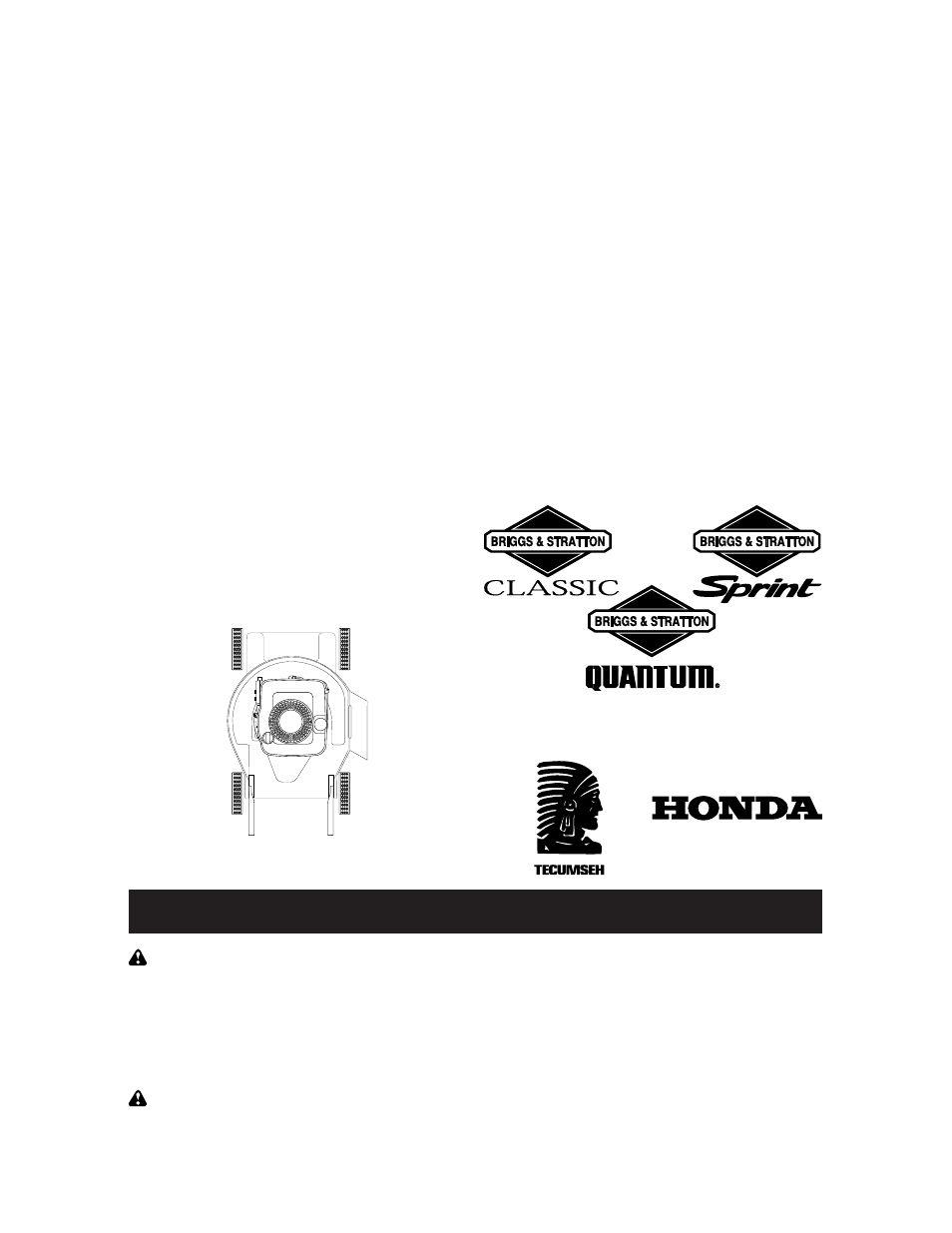

What is the right and left side of the
lawn mower?
When right hand (RH) or left hand (LH) is
mentioned in this man ual, it means when
you are in the operating po si tion (stand ing
be hind the handle).
What kind of engine is on my lawn
mower?
When learning how to operate your new
lawn mower, you will need to know what
kind of engine powers the mower. A decal
on the engine will indicate the man u -
fac tur er and type or brand name of the
engine.
BRIGGS & STRATTON ENGINES
HONDA
ENGINES
TECUMSEH
EN GINES
BACK or REAR
(Op er at ing Position)
02579-briggs 02579-briggs
