Poulan 172787 - Manual (Page 22)

22

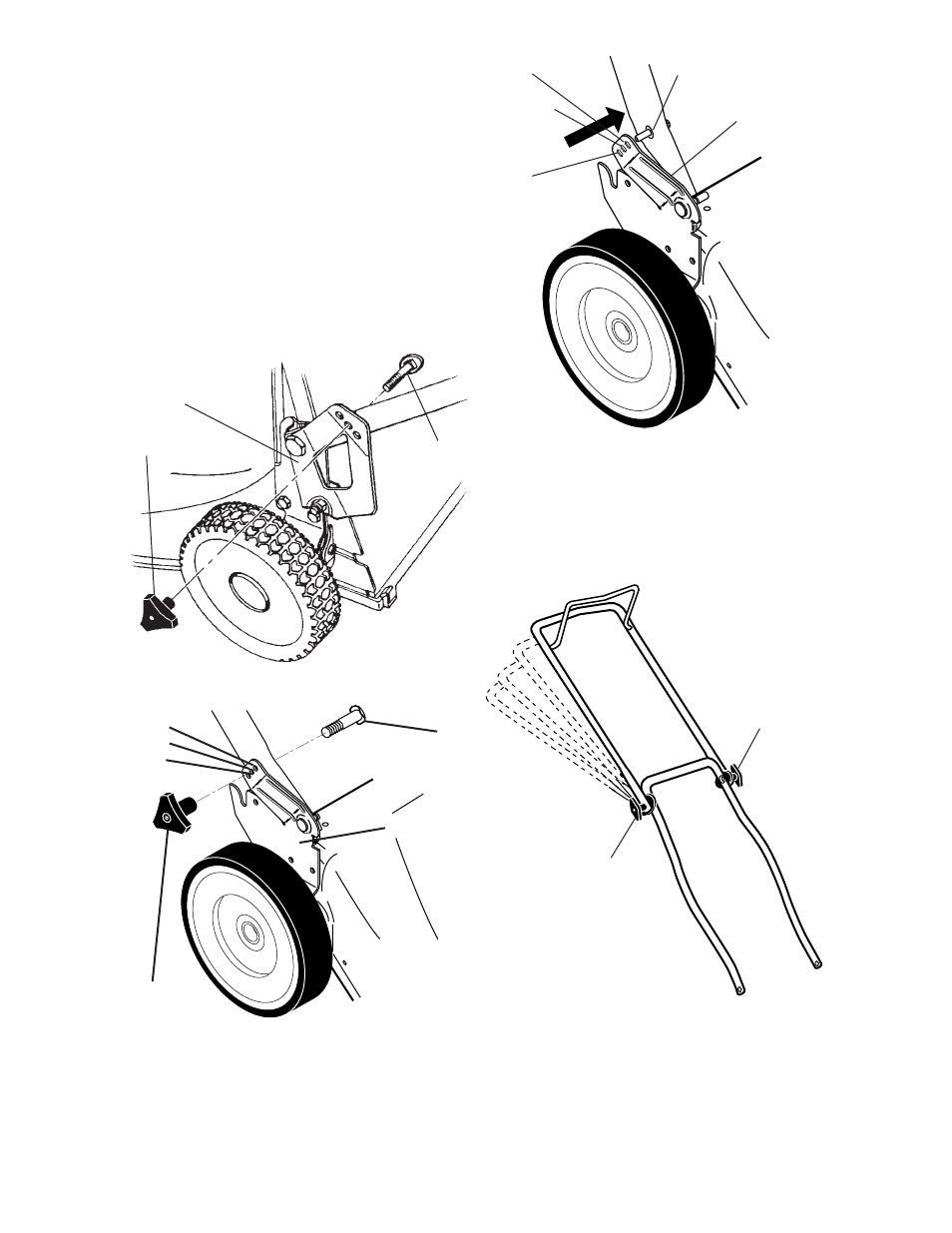

3 POSITION “EURO” OR “EZ”
The handle on your lawn mower has three
(3) height positions - adjust to height that
suits you.
• Remove knob and carriage bolt on one
side of the lower handle.
• While holding handle assembly, remove
knob and car riage bolt from opposite
side, align hole in handle with desired
hole in handle bracket and reassemble
bolt and knob and tighten securely.
• Align opposite side of handle with same
positioning hole and secure with bolt and
knob.
“EZ” ADJUSTMENT
“EURO” ADJUSTMENT
Knob Bolt
Handle
adjustment
bracket
Handle
adjustment
bracket
Knob
Bolt
High
Med.
Low
3 POSITION “QUICK”
The handle on your lawn mower has three
(3) height positions - adjust to height that
suits you.
• Squeeze the bottom ends of lower
handle towards each other until the pin
in handle can be inserted into one of the
three height adjustment holes.
High
Handle
adjustment
bracket
Handle pin
Medium
Low
SQUEEZE
“ADJUSTABLE” HANDLES
The upper handle may be adjusted to four
(4) different height positions.
• Loosen both handle knobs only enough
to allow the upper handle to pivot to the
desired adjustment position.
• Tighten both handle knobs securely.
Handle
knob
Handle
knob
REAR DEFLECTOR (IF EQUIPPED)
The rear defl ector, attached between the
rear wheels of your mower, is provided to
minimize the pos si bil i ty that objects will
be thrown out of the rear of the mower
into the operator mowing position. If the
defl ector becomes dam aged, it should be
replaced.
