9
RQT7708
∫ Common buttons
[1] Power button [ Í/I POWER]. . . . . . . . . . . . . . . . . . . . . . . . . . 17
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
[2] Remote control signal sensor
[3] Source selector button [INPUT SELECTOR]
VHS >DVD/CD>FM>AM
^"""""""""""""n
[4] Demo button [–DEMO]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
[5] Display
[6] Headphone terminal [PHONES] . . . . . . . . . . . . . . . . . . . . . . 48
[7] Volume dial [VOLUME DOWN, UP] . . . . . . . . . . . . . . . . . . . . 20
∫ DVD section
1 Drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Disc buttons [DISC1–5] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3 Disc change button [
< DISC CHANGE] . . . . . . . . . . . . . . . 21
4 Drawer open/close button [ < OPEN/CLOSE] . . . . . . . . . . . 20
5 Disc check button [DISC CHECK] . . . . . . . . . . . . . . . . . . . . . 21
6 Disc indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7 Stop button [
∫ STOP]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Play button [ 1 PLAY] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
∫ VHS section
1 Tape slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2 Fast-forward and rewind buttons
[ 6 6/REW] [5 FF/5] . . . . . . . . . . . . . . . . . . . . . . . . . . 32
3 Tape eject button [ < EJECT]. . . . . . . . . . . . . . . . . . . . . . . . . 32
4 Channel buttons [ W CH] [X CH] . . . . . . . . . . . . . . . . . . . . . . 34
5 Stop button [ ∫ STOP]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6 Play button [ 1 PLAY] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7 Recording button [ ¥ REC]. . . . . . . . . . . . . . . . . . . . . . . . . . . 34
∫ Subwoofer
[1] AC supply indicator [AC IN]
This indicator lights when the subwoofer is connected to a
household AC outlet.
∫ Common display
[1] Program indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 44
[2] Center Focus indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
[3] Sound Field Control indicator . . . . . . . . . . . . . . . . . . . . . . . 46
[4] Dolby Pro Logic II/Dolby Pro Logic indicator . . . . . . . . . . . 46
[5] Super Surround indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
[6] SLEEP timer indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
[7] Main display (Orange)
Disc play elapsed time, program recording start time, volume,
TUNER frequency/channel display, various messages, etc.
[8] Main display (White)
Time display, video play/record elapsed time, program recording
end time, various messages, etc.
∫ DVD operation
1 CD mode indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Lights when CD mode is on.
2 DVD selector indicator
Lights when DVD is selected.
3 Operation status of DVD section
≥Lights when a disc is inserted.
≥Displays play status graphically.
Rotating: playing
Stopped: paused
4 DTS indicator
5 Progressive video indicator . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 Dolby Digital indicator
7 Down mix indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
8 Play sequence indicator
ALL RND: During all disc random play . . . . . . . . . . . . . . . . . . 25
RND: During random play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
`: During repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
A
`B: During A-B repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 HDCD indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
: Custom Sound Memory indicator . . . . . . . . . . . . . . . . . . . . . 47
; Group/Play list/Track/Title/Chapter/Program number display
∫ VHS operation
1 VHS selector indicator
Lights when the selector is in VHS mode.
2 Operation status of VHS section
≥Lights when a video cassette is inserted.
≥Flashes when recording or timer recording is attempted with no
video cassette inserted.
≥Displays play status graphically.
Rotating: playing
Stopped: paused
3 Recording indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4 Repeat playback indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5 Tape speed indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6 Timer program recording indicator. . . . . . . . . . . . . . . . . . . . 36
7 Channel display
∫ Tuner operation
[1] Radio broadcast display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
MONO: Forced monaural
ST: Stereo
TUNED: Receiving radio signal
[2] Band display

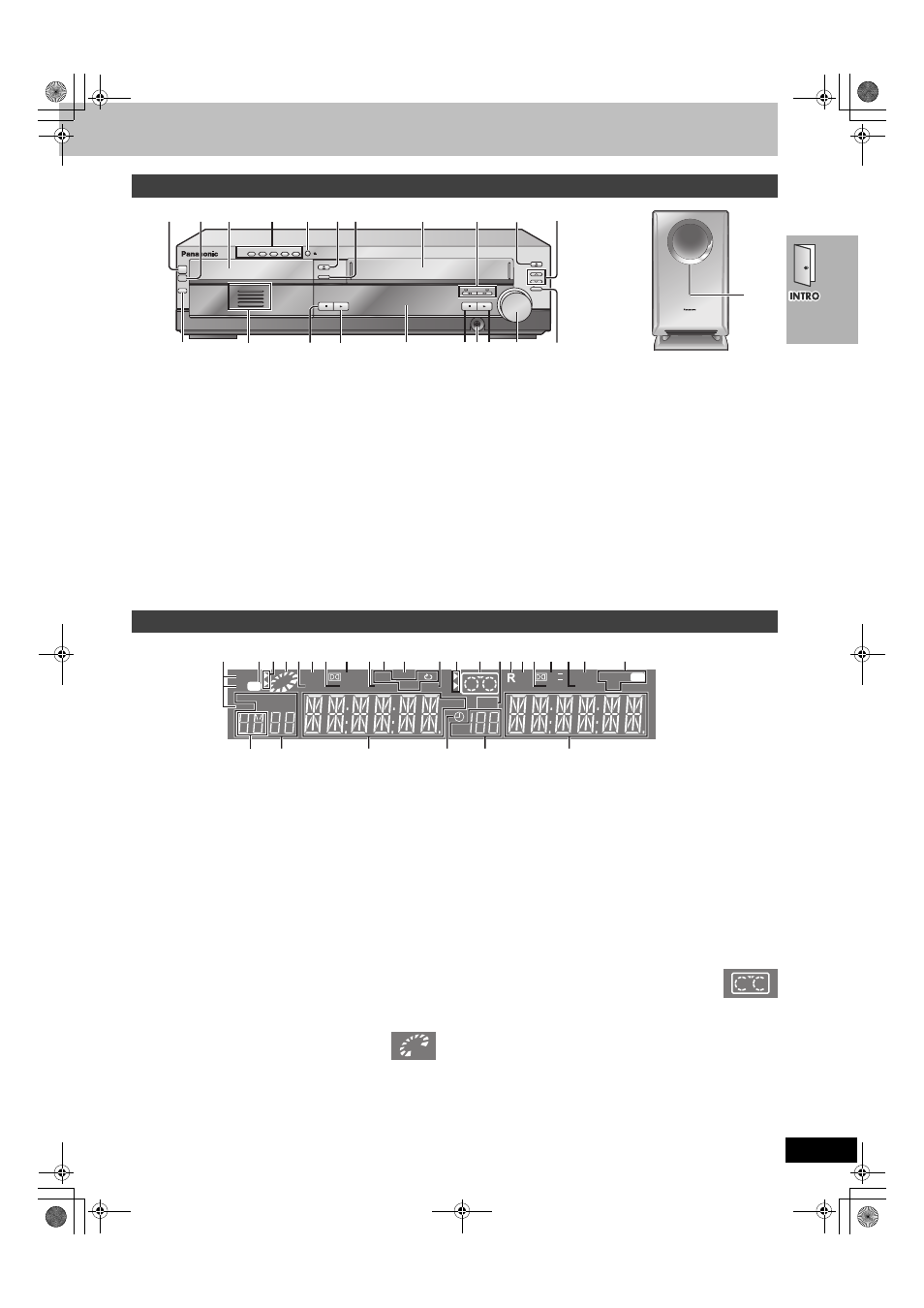

Main unit and subwoofer
OPEN/CLOSE EJECT
DISC CHANGE
DISC CHECK
INPUT
SELECTOR REC
/REW FF/
STOP PLAY
DOWN
UP
PHONES
CH
VOLUME
STOP
DISC
D I S C
1
2
3
4 5
1 2 3 4 5
PLAY
POWER
Í /I
- DEMO
AC IN
[1]
[1] [2] 4 5 3 2 1 1 4 2 3
6 5 [7] [6] [5] [3] 8 6 7 [4] 7
Main unit display
REC
SP
LP
EP
D.MIX RND CSM DTS
PGM
S.SRND
SLEEP ALL
PROG.
DIGITAL HDCD
ST
MONO
dB
C.F A B
CH
VP
SFC CD
PL II
TUNED
GRP
PL
TTL
CHP PG
TRK
2 1 [1]
6 7 [8] ; [7]
4 5 7 [5] [3] : [6] 4[2] [4] 3 2 8 9 5 3 [1] 6 1
[2]
