# Connector panel (page 16)
$ Air outlet port
Do not cover this port.
% Air inlet port
Do not cover this port.
& Lamp unit holder (page 50)
' Front adjustable legs (L/R) (page 23)
( Air inlet port, Air filter (page 49)
Do not cover this port.
WARNING
Do not place your hands or other objects close to the air outlet port.
B Heated air comes out of the air outlet port. Do not place your hands or
face, or objects which cannot withstand heat close to this port, otherwise
burns or damage could result.

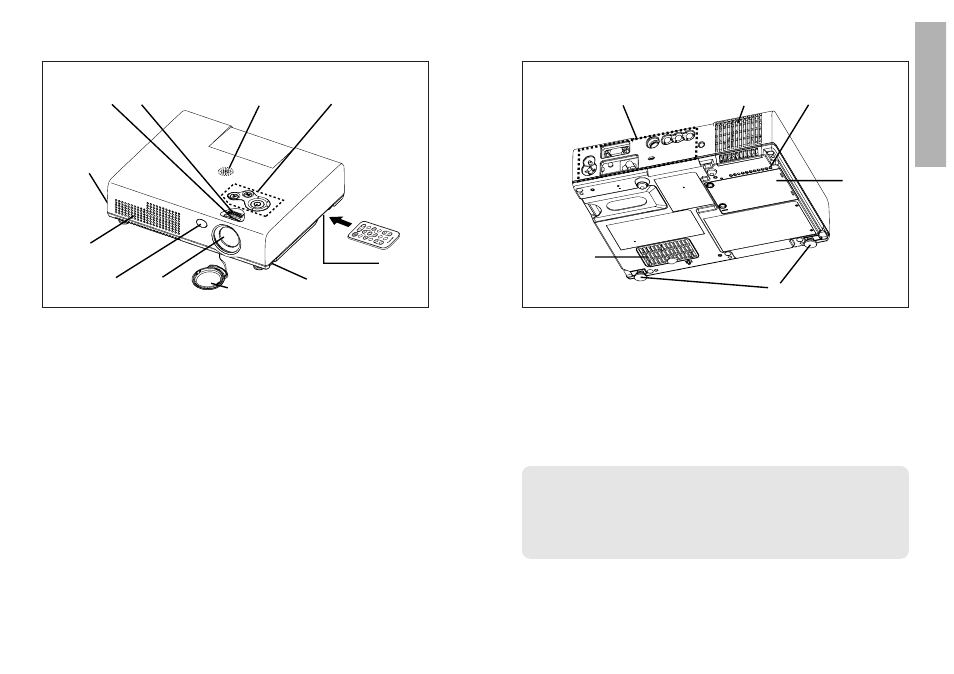

Projector
Location and function of each part
# Focus ring (page 23)
$ Zoom ring (page 23)
% Speaker
& Projector control panel (Top) (page 14)
' Remote control unit holder
Store the remote control unit as shown in the figure above.
( Leg adjuster buttons (L/R) (page 23)
These buttons are used to unlock the front adjustable legs. Press to adjust
the angle of tilt of the projector.
) Lens cover
* Projection lens
+ Remote control signal receptor (page 21)
, Air inlet port
Do not cover this port.
Projector
E
N
TE
R
FR
E
E
ZE
SH
UT
TE
R
IN
D
E
X
W
IN
D
O
W
P
R
O
JE
C
TO
R
V
O
LU
M
E
D
.Z
O
O
M
S
TD
A
U
TO
S
E
TU
P
V
ID
E
O
IN
P
U
T
P
O
W
E
R
R
G
B
M
E
N
U
# $
%
&
'
(
)
*
+
,
(
#
$
%
&
'
(
NOTE:
B During projection of an image, the cooling fan will operate, emitting a
small noise as it operates. Turning the lamp on or off will cause this
noise to increase a little.
B By using the “OPTION2” menu to set “LAMP POWER” to “LOW”, the
operating sound of the fan can be reduced. (Refer to page 43.)
