Error messages
When a warning occurs in this unit, an error number appears at the counter display.
Opening the DIAG menu will display the error description on the monitor. Also, when an
abnormal operation is detected in this unit, an error number flashes on the counter display.
DIAG menu
This display the VTR information.
VTR information includes “WARNING” information and “HOURS METER” (usage time)
information. A DIAG menu appears on the monitor when the monitor is connected to the
VIDEO OUT 3 connector on the connector section.
Displaying the DIAG menu

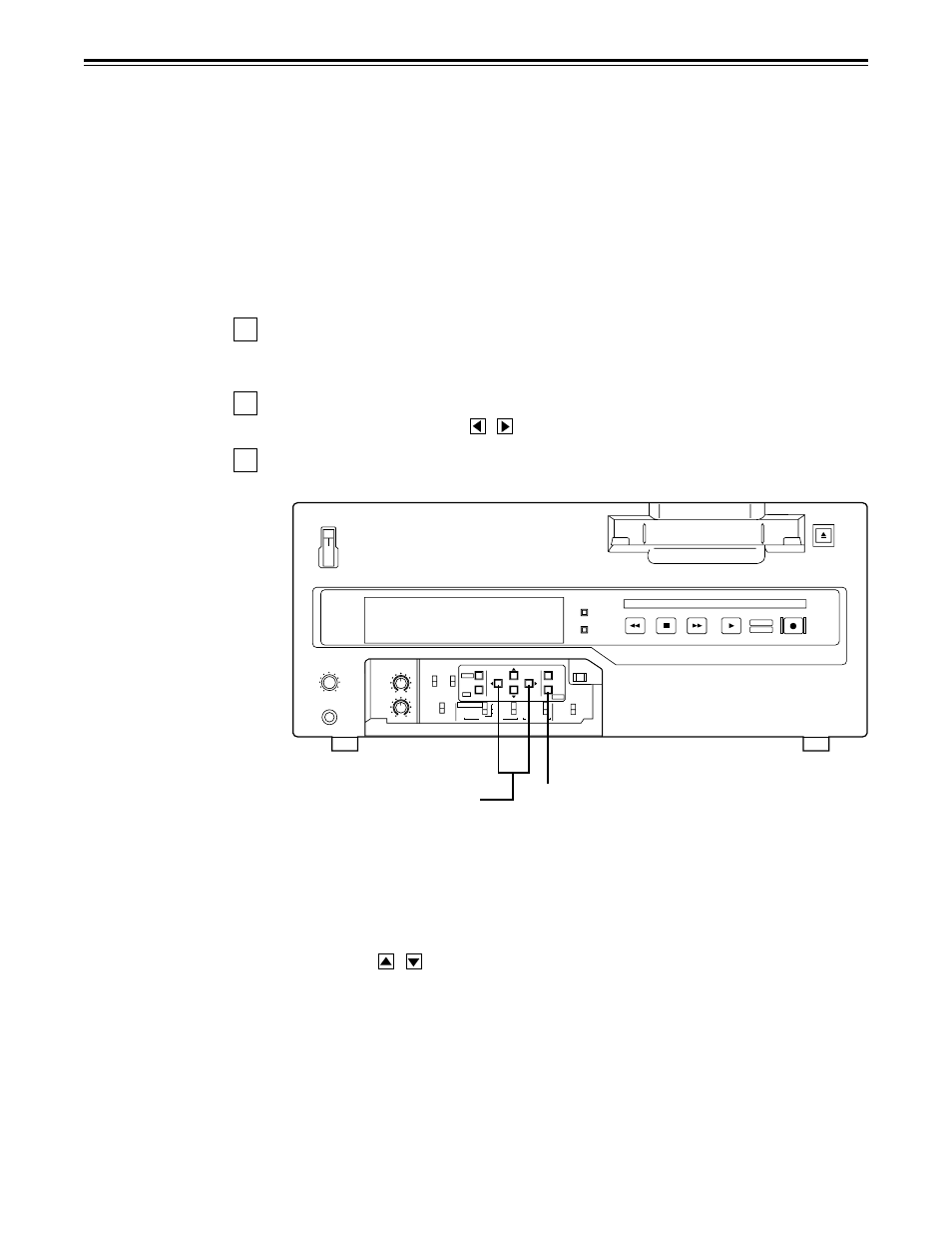

1
Press the DIAG button.
The DIAG menu screen is displayed on the monitor, and the error number is displayed
on the counter display.
2
The “WARNING” information and “HOURS METER” information can be switched by
pressing the cursor buttons (
, ).
3
Press the DIAG button again to return to the original display.
ON
OFF
POWER
EJECT
REC PLAY
DVCPRO
DV
FF STOP REW
CTL/TC/UB/
REMAIN
RESET
CH CONDITION
LEVEL
HEADPHONES
CH 1
AUDIO
REC LEVEL
ON
OFF
CH 1
MIX
CH 2
AUDIO
MONITOR
SUPER
DVCPRO/DV SDI
ANALOG
Y PB PR
CMPST S-VIDEO
SDI
AES/EBU
ANALOG
REMOTE
LOCAL
MENU
PAGE
TC PRESET
FILE
SET
DIAG
VIDEO IN AUDIO IN
CH 2
INT
EXT
TC
1, 3 2
“WARNING” information display
• A warning message is displayed on the monitor whenever a warning occurs. When
warnings have not been detected, “NO WARNING” is displayed on the monitor, and “Err–”
is displayed on the counter display.
• When multiple warning occur, the descriptions for each warning can be checked by using
the cursor buttons ( , ).
