Accessories and connections
95

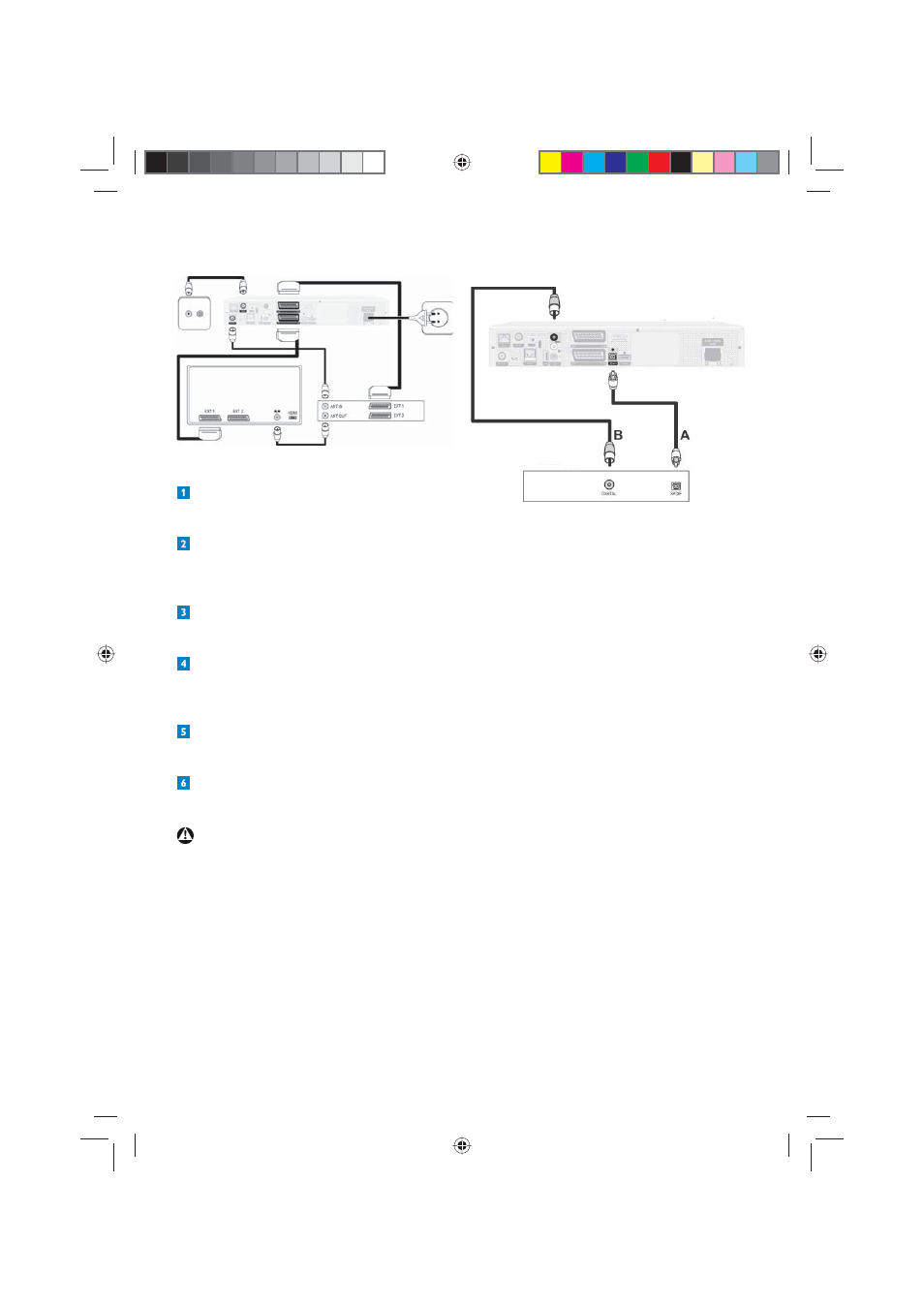

Recorder connection
Connect the supplied coaxial cable from the
cable wall socket to the RF IN socket at the
rear of the Digital Cable Receiver.
Connect a scart cable to the AUX scart
socket at the rear of the Digital Cable
Receiver and to the scart input EXT1 of the
recorder.
Connect a scart cable to the scart input of
the TV set and to the TV scart socket at the
rear of the Digital Cable Receiver.
Connect the ANT IN socket at the rear of
your recorder to the RF OUT socket at
the rear of the Digital Cable Receiver using a
coaxial cable.
Connect the ANT OUT socket at the rear
of your recorder to the RF input of your TV
set using a coaxial cable.
Plug your Digital Cable Receiver to the
mains using the supplied power cord.
Warning
To be able to record digital television, you must
make sure the Digital Cable Receiver is switched
on.
Audio connection
Option A – Optical digital connection
Your audio equipment is fi tted with an optical
digital audio input:
Connect the ♫ OPT audio output of the Digital
Cable Receiver to the relevant audio input of
your audio equipment using an optical cable (not
supplied).
Consult the user manual of your audio
equipment to choose the proper digital audio
input.
Option B – Electrical digital connection
Connect the SPDIF output of the Digital Cable
Receiver to the relevant input of your audio
equipment using a single CINCH cable (not
supplied).
Consult the user manual of your audio
equipment to choose the proper digital audio
input.
Digital Cable Receiver
Cable Wall
Socket
TV set
Recorder
