74 Use more of your Digital Cable Receiver
ENGLISH

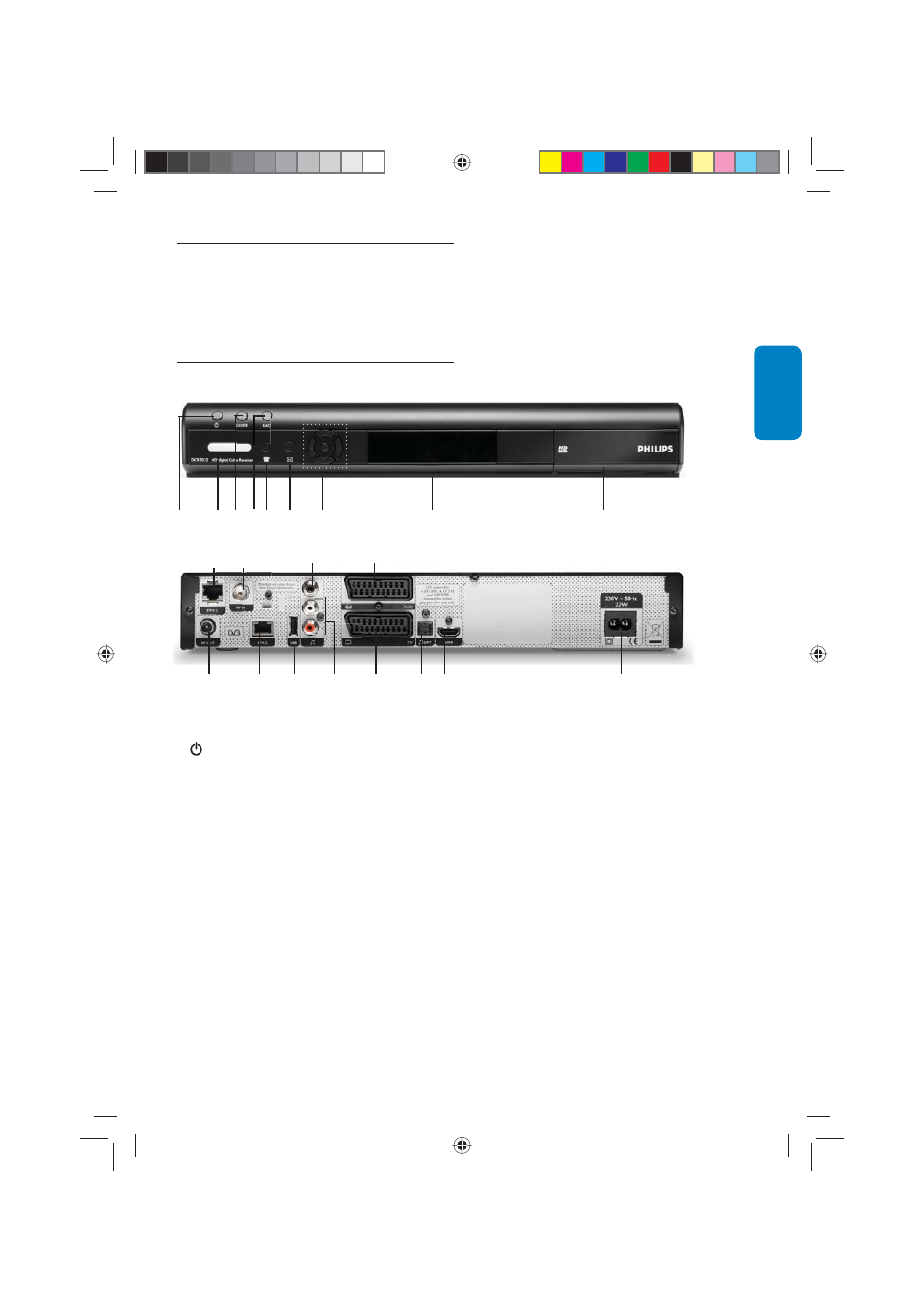

Main unit backside
A RF OUT
* - Input to connect the cable from
your wall cable socket
B ETHERNET2
*
C USB *
D L/R audio * - Left/Right analogue audio outputs
E TV scart * - Output to connect your TV set
F Optical digital audio output *
G HDMI * - Output to connect your TV set
HDMI input
H Power ** - Output to connect the mains cord
I AUX scart * - Output to connect your video
recorder or DVD player
J SPDIF
* - Digital audio output
K RF IN*
L ETHERNET1*
* Safety extra low voltage
** Hazardous voltage
A I C B D E F G H
Use more of your 6
Digital Cable Receiver
This chapter gives a complete description of the
functionalities of your Digital Cable Receiver.
Digital Cable Receiver full 6.1
overview
Main unit
Main unit backside
Main unit
A - Switch to standby mode
B Status led
Green: the receiver is on
Red: standby mode
Blinking: software update in progress
C Guide - For future use
D Back - Not active
E Led - Not active
F Led
- For future use
G Navigation buttons - Move up/down, left/right
OK:
confi rm the selection
H Display panel
I Smart card door
I J
A B C D E F G H
K L
