Connect devices 7
Connection overview 7.1
7
11 8
9
10

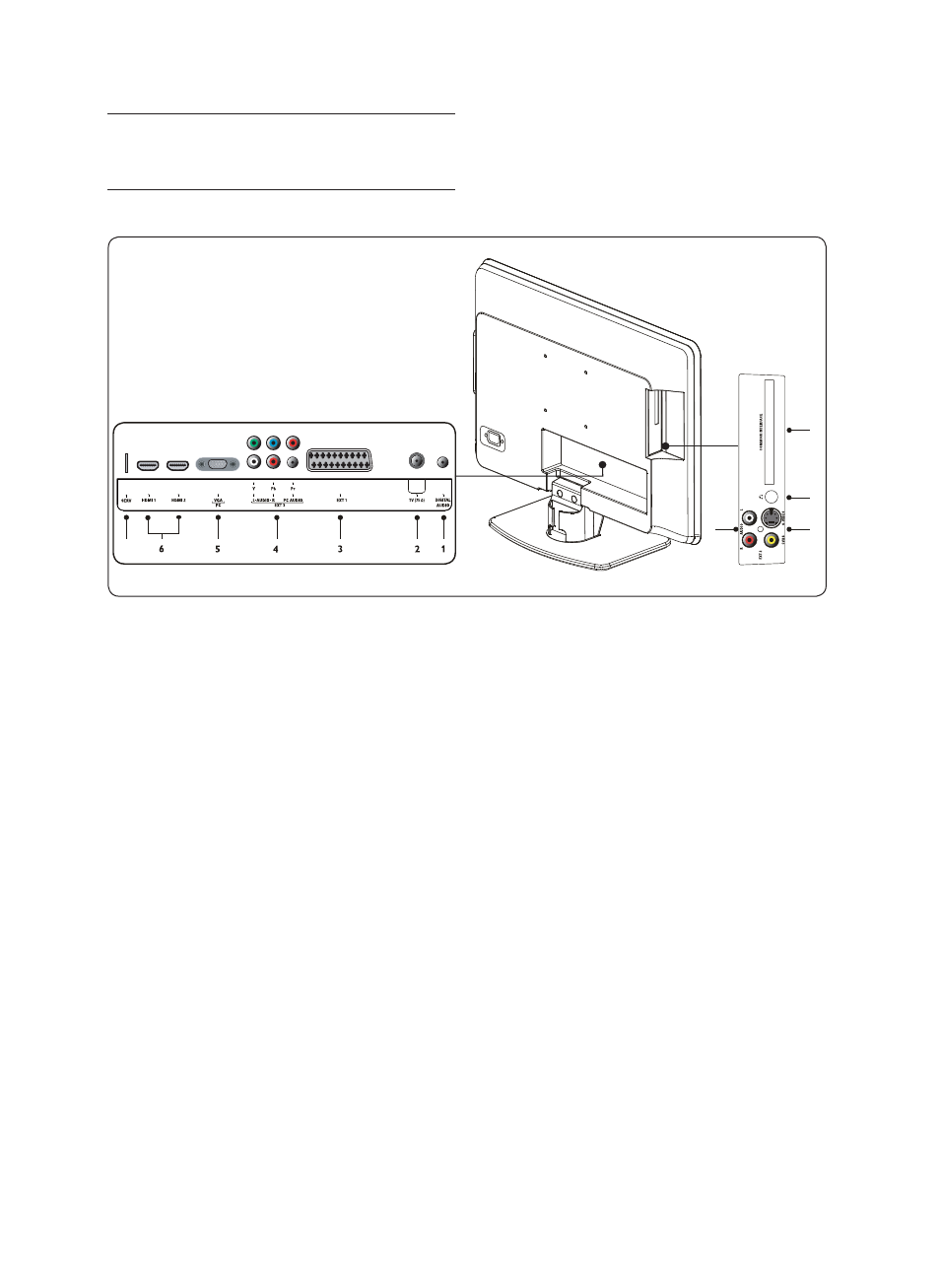

Back connectors
Digital Audio Out 1.
Sound output cinch connectors for home
theatres systems etc.
TV (75Ω) 2.
TV antenna.
EXT 1 - SCART (input-output) 3.
For a range of equipment, including video
recorders, camcorders (VHS, 8 mm or
Hi 8 format), decoders, satellite receivers,
DVD players, games consoles or devices
producing an RGB signal.
EXT 3 - PC Audio/YPbPr/Audio L/R 4.
component sockets (input)
Component PC Audio and video (Y Pb
Pr) and Audio L/R input connectors for
PC(when connecting a PC via a DVI-HDMI
adaptor), DVD players, digital receivers,
game consoles and other component video
devices.
VGA (PC) socket (input) 5.
or a computer. To display images using the
equipment connected, press the SOURCE
button on the remote control: once to
select EXT 1, twice to select EXT 2,
etc. For some equipment (connected to
the SCART socket), this selection is done
automatically.
HDMI(input) 1/2 6.
HDMI input connectors for Blu-ray Disc
players, digital receivers, game consoles and
other high-definition devices.
SERV(input) 7.
For service use.
Side connectors
EXT2-CVBS/S-Video 8.
Video input cinch connector for composite
devices.S-Video input connector for
S-Video devices
Headphone 9.
Stereo mini-jack, size, e.g. 3.5mm
Common Interface 10.
Slot for Conditional Access Modules.
AUDIO L/R 11.
Audio L/R input connectors for composite
and S-Video devices.
