Preparation
≥ To prevent damage or scratches, lay down a soft cloth and perform assembly on it.
≥ For assembly, use a Phillips-head screwdriver.
≥ For optional wall mount, refer to page 7.
[PT760] : Front speakers
[PT960] : Surround speakers

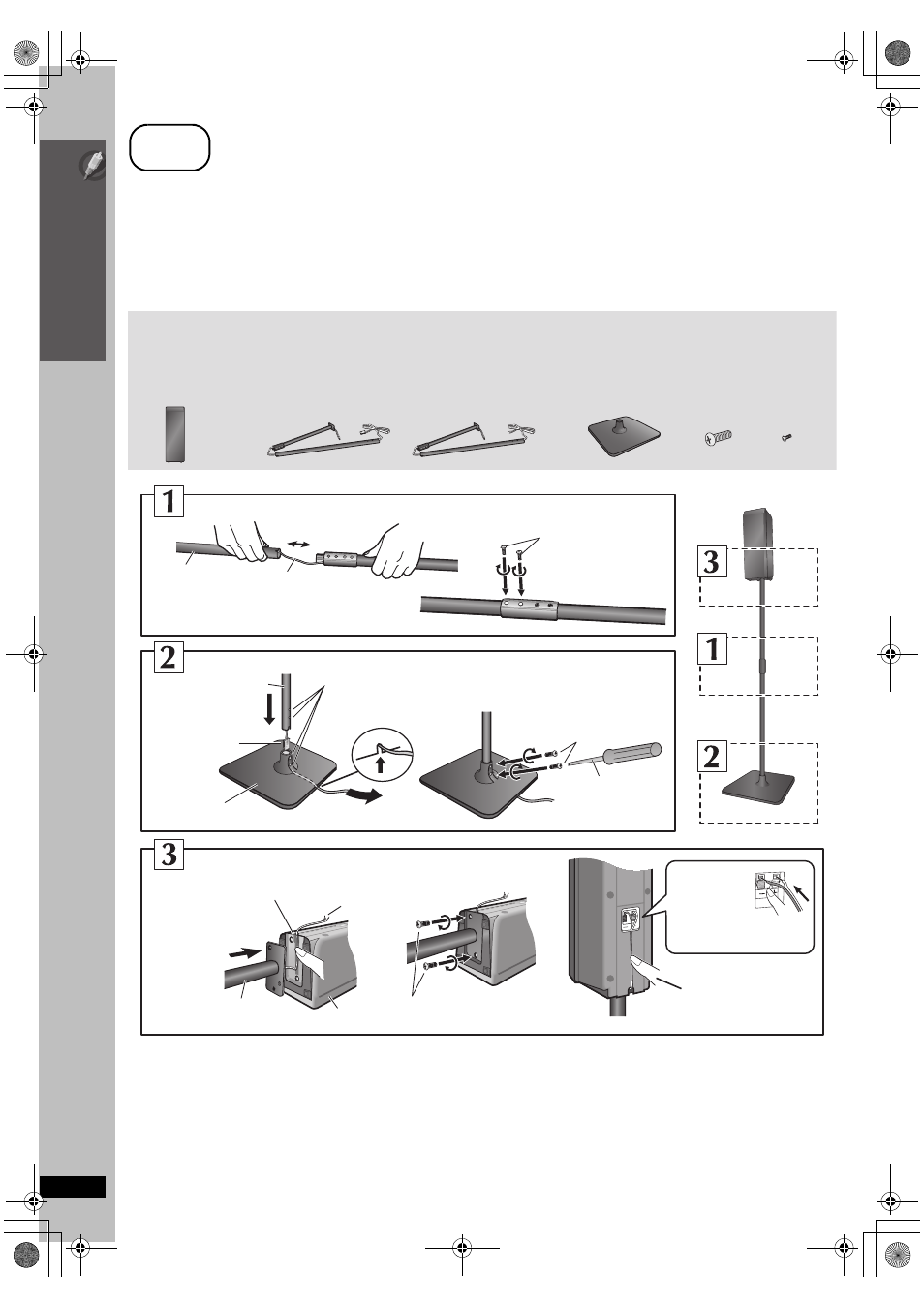

step 1
Assembling the speakers
Make sure you have all the indicated components before starting assembly, setup, and connection.
[PT760]
2 Set of pipes
(with cable):
For front speakers
2 Bases 8 Screws 4 Small
screws
[PT760]
2 Front speakers
[PT960]
2 Surround speakers
[PT960]
2 Set of pipes
(with cable):
For surround speakers
Match these holes when
you insert the pipe.
1
Join the pipes.
Screws
Phillips-head
screwdriver
(not included)
Pipe
Small
screws
2
Tighten securely.
Pipe
Speaker
4
Insert the wire
fully.
i: White
j: Blue
Tighten
securely.
Cable
Push!
Tighten securely.
5
Press into
the groove.
Base
Pipe
Thread the
cable through
the base.
1
Pull and press the
cable into the groove.
Attach the
pipes to the
speaker.
Screws
Slide into the groove.
2
3
4
1
2
3 Cable
