30 C311M-N (6/06)
AZ/EL
Az/El programs the horizontal display position of the Azimuth 1 /Elevation 2 label.
NOTE: Az/El display is not available while you are programming or running a pattern.
The following settings are available for the Az/El label:
• Off: Label is not displayed.
• Left (default): Label is displayed on the left-hand side of the screen.
• Center: Label is displayed in the center of the screen.
• Right: Label is displayed on the right-hand side of the screen.

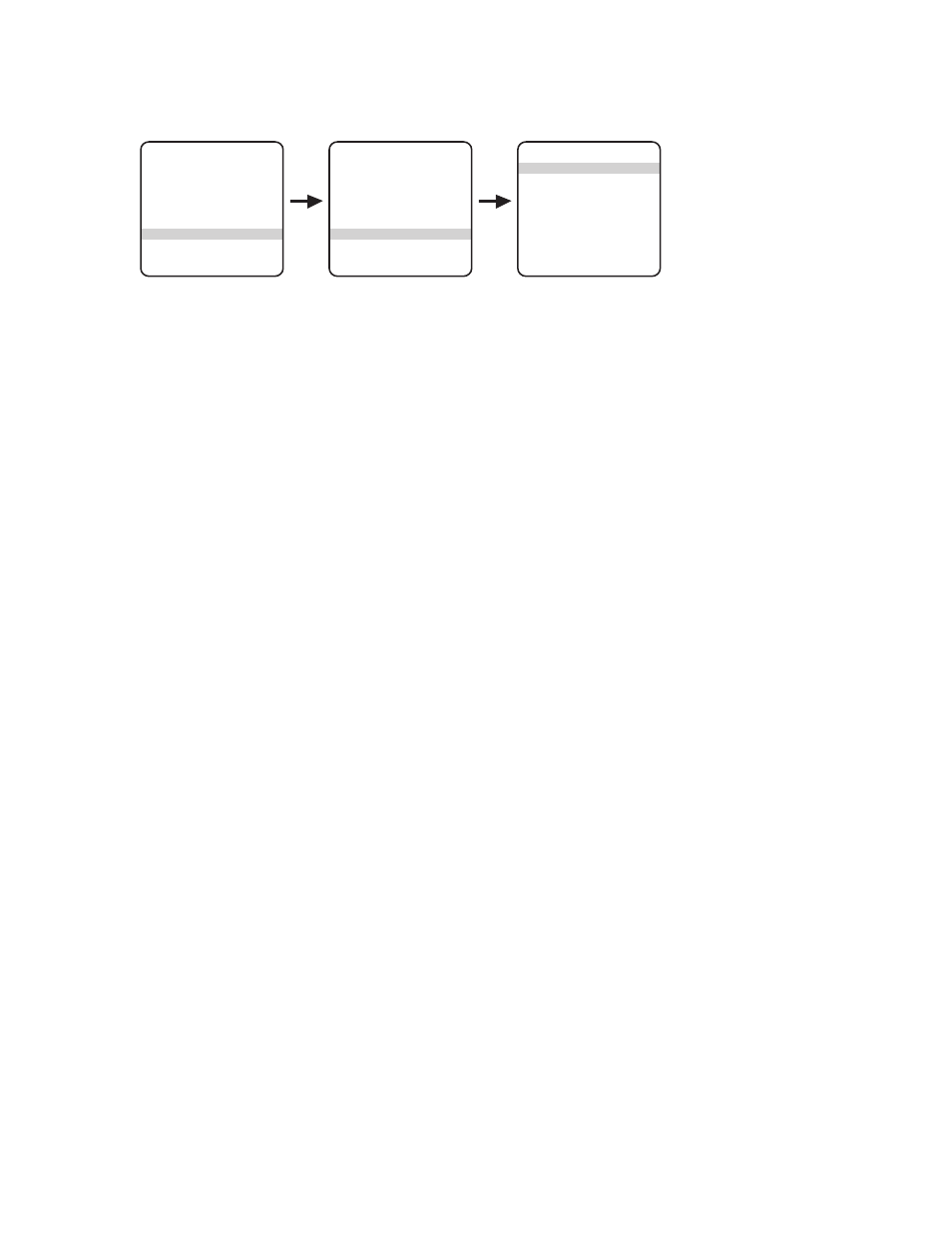

To program the horizontal label position for Az/El:
1. Program preset 95 (28). The main menu appears.
2. Position the cursor (>) beside Other.
3. Press the Iris Open button to enter the Other menu.
4. Position the cursor (>) beside Az/El/Direction.
5. Press the Iris Open button to enter the Az/El/Direction menu.
6. Position the cursor (>) beside Az/El.
7. Press the Iris Open button. The cursor moves to the right.
8. Move the joystick up or down to view the available selections.
9. SELECT: Press the Iris Open button to make a selection.
CANCEL: Press the Iris Close button to cancel selection.
1 Azimuth is the pan angle from 0° to 359°.
2 Elevation is the tilt position from 33° to -83°.
Proportional pan On
Park time minutes 0
Scan Speed deg/s 25
Pattern Length 1.5 min
Spd Profile
Exit
Other Menu
ACK Alert
Exit
MAIN MENU Az/El/Direction
Set Azimuth Zero
Az/El
Az/El Line
Direction
Direction Line
Zoom
Zoom Line
Disp Duration
Exit
