C311M-N (6/06) 9

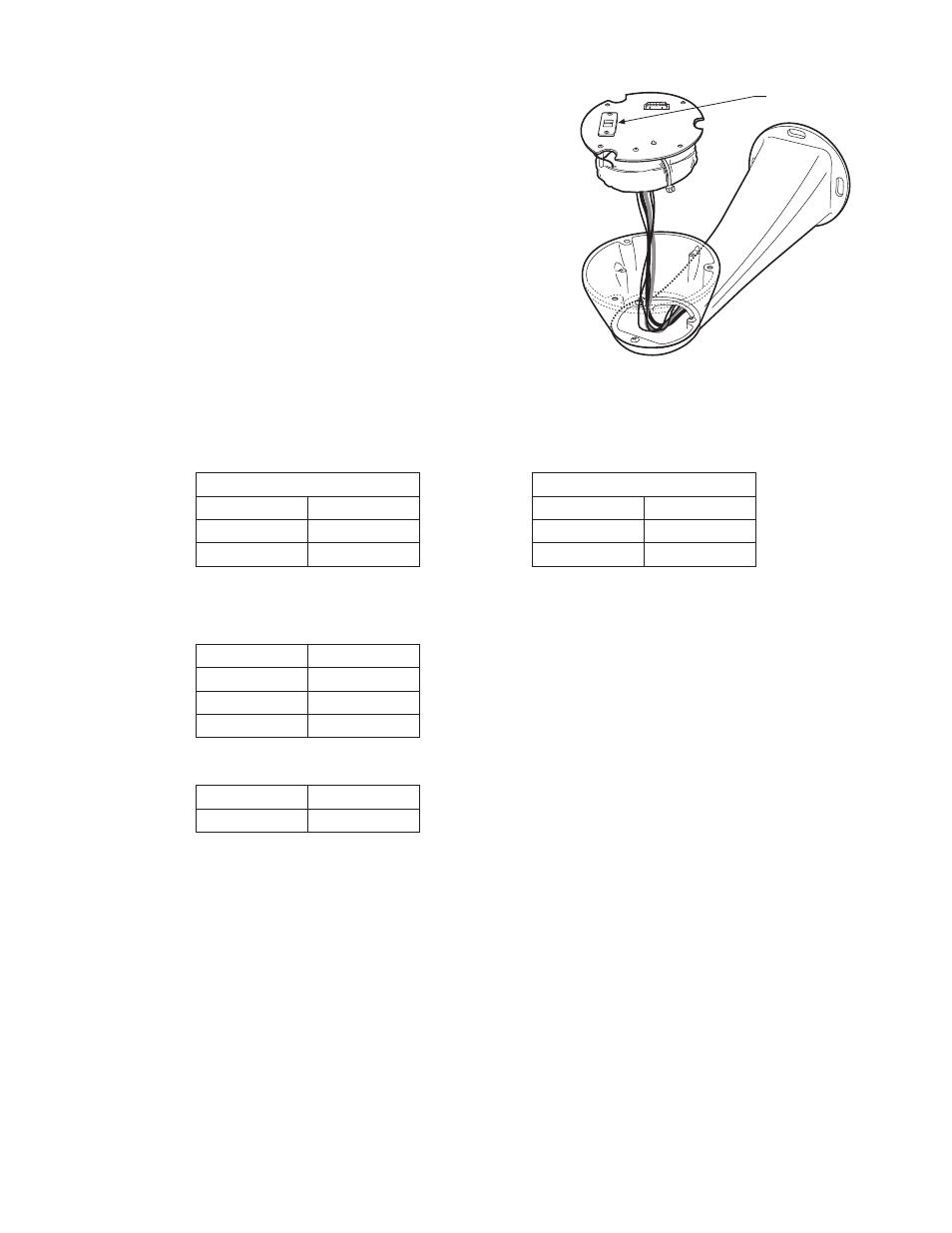

4. Route the wires and cables through the center of the Esprit mount.
Reinstall the transformer module into the base. The transformer
module can be positioned in the mount base in only one
orientation.
5. ES30PC-5/ES31PC-5 Models Only – Set the 120/230 voltage selector switch on the transformer to the appropriate voltage.
6. Connect wires and cables.
a. Connect to power. Use the two supplied clamp connectors to connect the AC line and neutral.
b. Connect the video coaxial cable to the BNC connector.
c. Connect the wiring for a two-wire or four-wire control system. This step does not apply to Coaxitron ® control systems.
d. Connect AUX 2 (optional). Refer to the schematic drawing for an example of how to wire AUX2.
120/230 VAC 24 VAC
Black wire Input (AC Line) White wire Input (AC Line)
White wire AC Neutral White wire AC Neutral
Green wire Ground Green wire Ground
Green wire RX-
Red wire RX+
Black wire TX-
White wire TX+
Orange wire AUX 2
Blue wire AUX 2 COMMON
120/230 VOLTAGE
SELECTOR SWITCH
