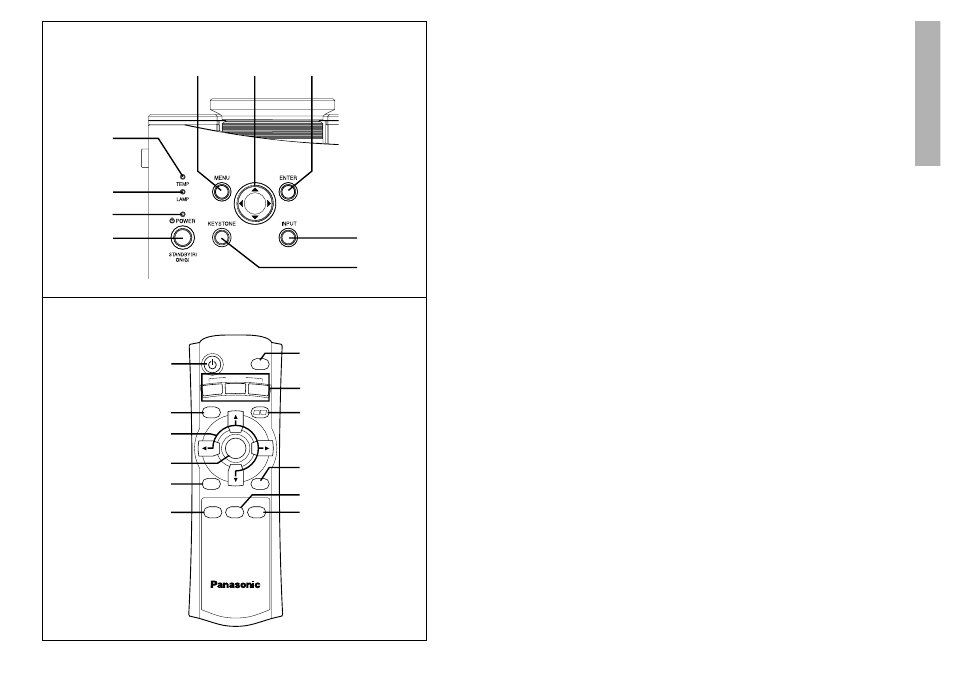

Projector control panel
Remote control unit
# TEMP indicator (page 44)
This indicator illuminates if an abnormally high temperature is detected
inside the projector. If the temperature rises above a certain level, the
power supply will be turned off automatically and the indicator will flash.
$ LAMP indicator (page 45)
This indicator illuminates when it is time to replace the lamp unit. It flashes
if a circuit abnormality is detected.
% Power indicator (pages 22, 24 and 25)
This indicator illuminates red when the main power is switched on (standby
mode), and it illuminates green when projection of an image begins.
& POWER button (pages 22 and 24)
' MENU button (page 32)
This button is used to display the “MAIN MENU”. When a menu screen is
being displayed, it can be used to return to a previous screen or to clear the
screen.
( Arrow (
F
F, G
G, I
I and H
H) buttons (page 34)
These buttons are used to select and adjust items in the on-screen menus.
) ENTER button (page 34)
This button is used to accept and to activate items selected in the
on-screen menus.
* INPUT select button (page 23)
These buttons are used to switch the input signals from the connected
equipment.
+ KEYSTONE button (page 26)
This button is used to correct keystone distortion of the projected image
when the projector position is tilted upward or downward.
, NORMAL button (page 35)
This button is used to reset the projector adjustment values to the factory
default settings.
- ASPECT button (page 28)
This button is used for aspect adjustment (vertical and horizontal
proportions).
. LIGHT button (page 30)
This button is used to illuminate the buttons on the remote control unit.
/ FREEZE button (page 30)
This button is used to momentarily freeze projection so that a still picture is
displayed.
0 PICTURE MODE button (page 27)
This button is used to display the “PICTURE MODE” menu.
1 USER MEMORY button (page 31)
This button is used to display the “MEMORY LOAD” menu.
