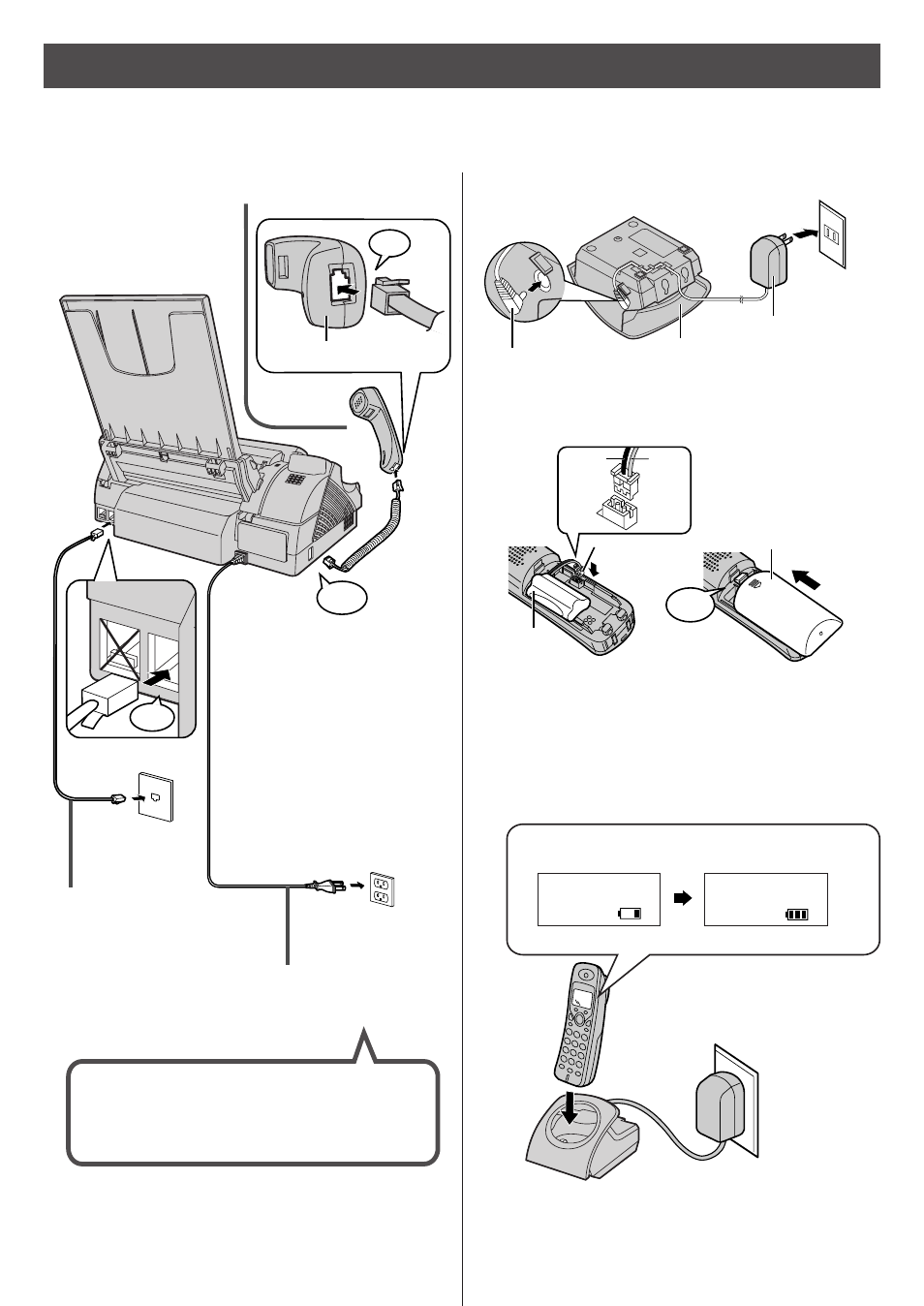

Connecting the main unit
Installations and connections
3
Charge the battery in the charger for 10 hours.
Plug
Charger
AC adaptor
Power outlet
(AC 100 V)
Connector
Battery
Battery cover
Click
Black Red
Setting up the portable handset
1
2
● After your Panasonic battery is fully charged,
it will last up to about 7 hours of conversation.
Power cord
Telephone
line cord
Wall jack
Power outlet
(AC 100V)
3
Connect the power
cord.
2
Connect the telephone line
cord (Supplied accessory).
1
Connect the cord and place the handset on the
main unit.
Click
Click
Handset
Click
After the Power On...
This unit will automatically select the dialing
mode (Tone/Pulse).
● While charging. ● Charging completed.
