3. Pull the Movable Throat Guide outward to make room for
the label stock.
4. Remove any shipping tape from your label stock roll to
ensure that it can unroll freely, making certain that no
adhesive portion is exposed. It is important to note that
any exposed adhesive surface can attach itself the the inner
workings of the print mechanism and cause a media jam.
5. Place your roll of label stock on the Roll Arm and push it
inward until it touches the stop.
6. Flip up the Roll Guide and slide it inward until it touches
the label stock. (The Roll Guide will automatically pull
back slightly to the correct position)
7. Place the leading edge of label stock under the
"label stock" symbols on the Throat Guides.
The label stock should be placed far enough into the throat
of the printer to correctly position the Movable Throat
Guide but not yet into the printer itself. The label stock
should be biased against the Fixed Throat Guide.

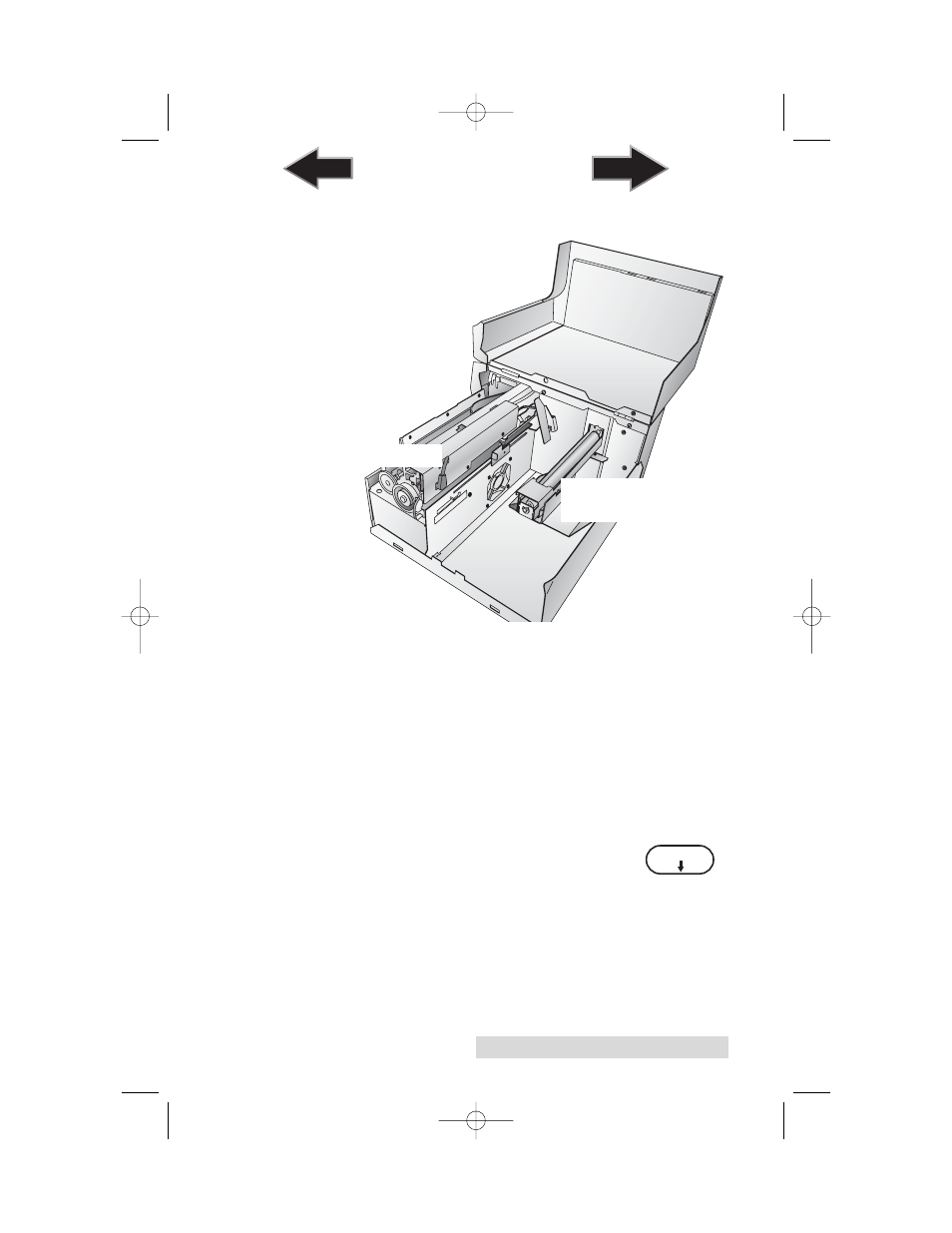

Label Stock
2. Lower the Roll Guide
and Pull it Outward.
1. Open Cover.
3. Pull Throat Guide Out.
