Using the HDMI Control 12
66
En
On-screen control panel
For an AV system
Press  or  on the remote control unit of the plasma television
to switch the surround mode in order or in reverse order,  or 
to switch the input source in order or in reverse order. Pressing
HDMI CONTROL closes the control panel to return to the HDMI
Control menu.
Note
• You cannot operate the recorder/player when you press  or
 to switch the input source during operation. To resume the
operation, return to the HDMI Control menu and select the
desired function again.
For a recorder
Press  or  on the remote control unit of the plasma television
to select fast reverse or fast forward mode,  to skip commercials
or
 to stop playback. Pressing ENTER starts playback and HDMI
CONTROL closes the control panel to return to the HDMI Control
menu.
For a player
Press  or  on the remote control unit of the plasma television to
select fast reverse or fast forward mode,
 to display the DVD disc
menu or Blu-ray disc’s pop-up menu on the player or  to stop
playback. Pressing ENTER starts playback and HDMI CONTROL
closes the control panel to return to the HDMI Control menu.
Making the HDMI Control connections
When you make changes in connections between the plasma
television and the device(s) that supports the HDMI Control
functions or settings for the “HDMI Control Setting”, perform the
following procedure:
1 Turn on the plasma television and all the connected devices.
2 Confirm that the setting in “Input Setting” for “HDMI Control
Setting” is properly entered according to the connected devices.
Also confirm the HDMI Control related settings in the connected
devices.
3 Switch to the HDMI input terminals to which the devices are
connected to check if audio and video images are properly output
and displayed.
4 Try turning off the plasma television, then turn the power back
on to the plasma television.

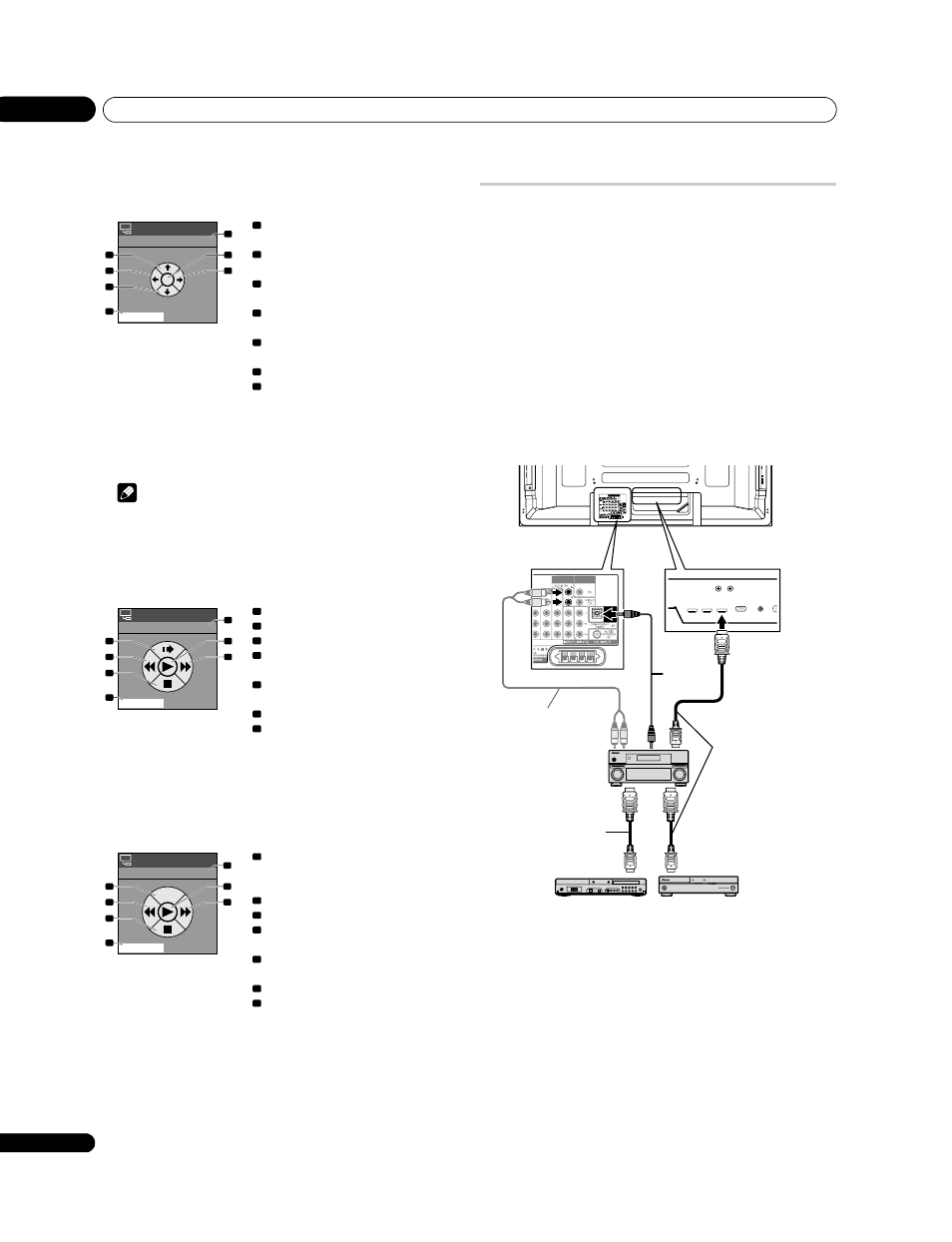

Connecting an AV amp/DVD recorder/BD player
Switches the surround mode in
order
Switches the input source in
reverse order
Switches the surround mode in
reverse order
Closes the control panel to return
to the HDMI Control menu
Displays the model number of the
connected device
Void
Switches the input source in order 1
2
3
4
5
6
7
SURROUND-
INPUT- INPUT+
SURROUND+
   
Exit HDMI CONTROL HDMI CONTROL
HDMI Control
1
2
3
4
7
6
5
Skips commercials
Fast reverse
Stops playback
Closes the control panel to return
to the HDMI Control menu
Displays the model number of the
connected device
Starts playback
Fast forward 1
2
3
4
5
6
7
   
Exit HDMI CONTROL HDMI CONTROL
HDMI Control
1
2
3
4
7
6
5
5
   
MENU
Exit HDMI CONTROL HDMI CONTROL
HDMI Control
1
2
3
4
7
6
Displays the DVD disc menu or
Blu-ray disc’s pop-up menu on the
player
Fast reverse
Stops playback
Closes the control panel to return
to the HDMI Control menu
Displays the model number of the
connected device
Starts playback
Fast forward 1
2
3
4
5
6
7
(Rear view)
MONITOR OUT
DIGITAL DIGITAL OUT OUT OPTICAL OPTICAL
SUB WOOFER
MONITOR OUT
DIGITAL DIGITAL OUT OUT
OPTICAL OPTICAL
SUB WOOFER
Stereo audio
cable
DVD recorder BD player
AV amp
Optical
digital cable
HDMI compliant cable
(HDMI cable having the
HDMI mark)
HDMI compliant cable
(HDMI cable having the
HDMI mark)
