Installation precautions
Observe the following precautions when installing with any items
such as the optional stand.
When using the optional stand, brackets, or equivalent
items
Ask your dealer to perform the installation.
Be sure to use the supplied bolts.
For details, see the instruction manual that comes with the
optional stand (or equivalent items).
When using other items
Consult your dealer.

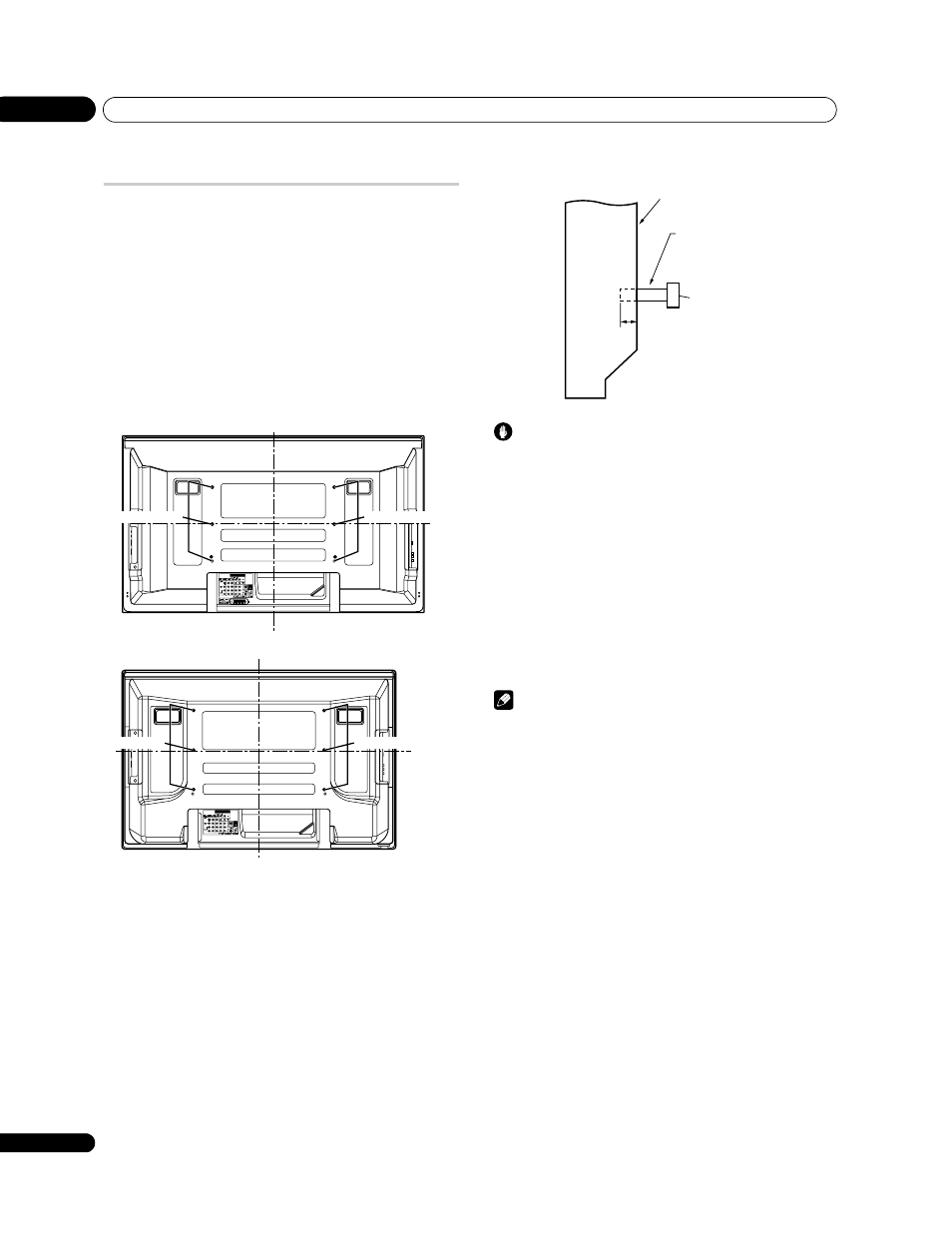

The following six mounting holes can be used for the installation:
Side view
Caution
• Be sure to use four or more mounting holes symmetrical to the
vertical and horizontal median lines.
• Use M8 screws, which go 12 mm to 18 mm in depth from the
mounting surface of the plasma television. See the side view
above.
• Be careful not to block the ventilation opening at the rear of the
plasma television.
• Be sure to install the plasma television on a flat surface
because it contains glass.
• The screw holes other than the illustrations on the left are to be
used only for the specified products. Never use them for
mounting non-specified products.
• Do not mount or remove the plasma television to or from the
stand, with speakers attached (for PDP-508XDA only).
Note
• It is strongly recommended to use the optional Pioneer
mounting products.
• Pioneer shall not be liable for any personal injury or product
damage that results from the use of mounting items other than
the optional Pioneer products.
Median
line
Median line
Mounting holes Mounting holes
Rear (PDP-508XDA)
MONITOR OUT
DIGITAL DIGITAL OUT OUT OPTICAL OPTICAL
SUB WOOFER
Median
line
Median line
Mounting holes Mounting holes
Rear (PDP-428XDA)
MONITOR OUT SUB WOOFER
DIGITAL DIGITAL OUT OUT OPTICAL OPTICAL
Mounting surface
Plasma
television
M8 screw
12 mm to 18 mm
Mounting bracket
(or equivalent item)
