Pioneer PDP-508XDA - Manual (Page 13)

Part names 04
13
En

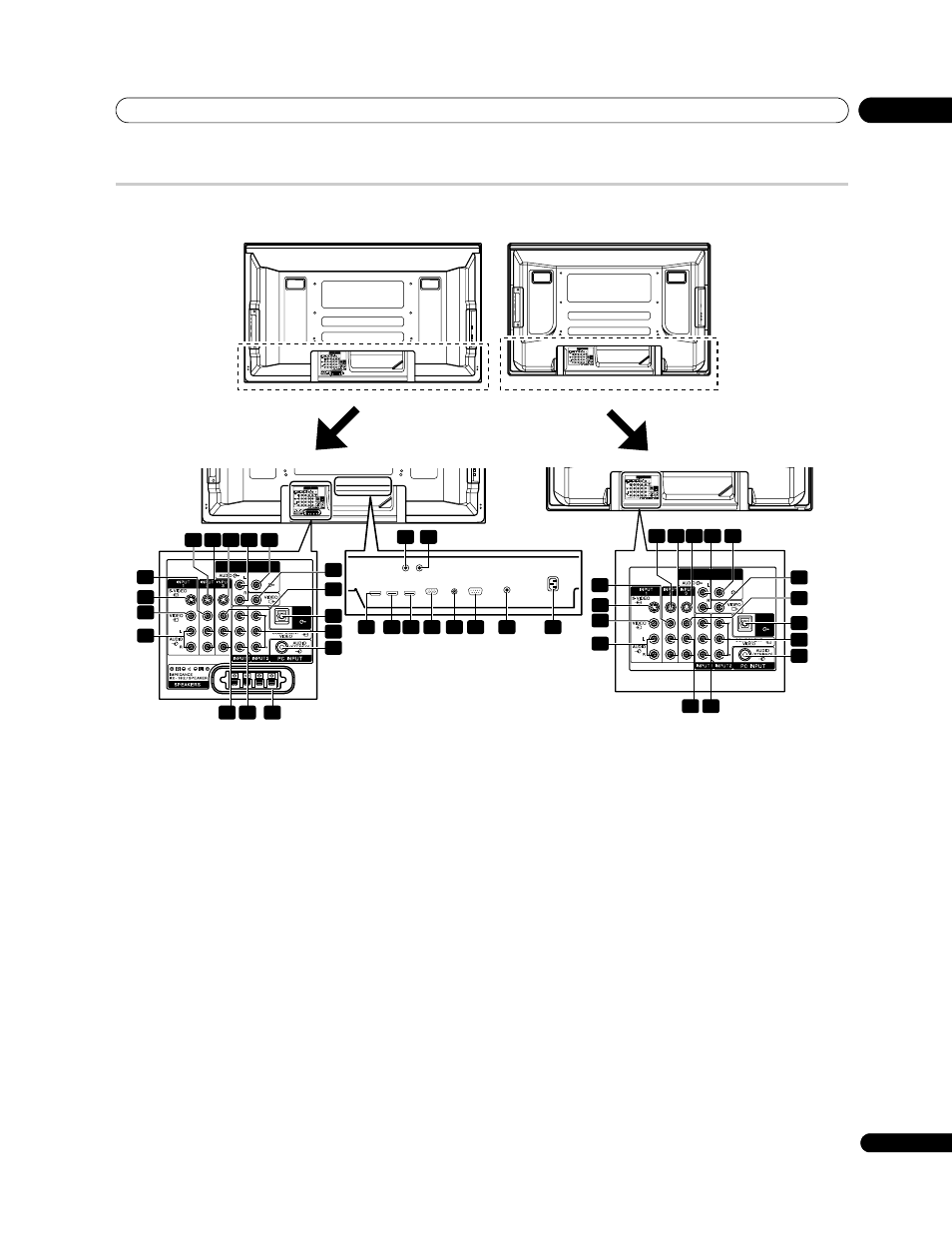

Plasma television
(Rear)
1 Antenna IN terminal (antenna in for DTV)
2 Antenna OUT terminal (antenna through out)
3 AC IN terminal
4 ANT (antenna) input terminal (for analogue TV)
5 RS-232C terminal (used for factory setup)
6 CONTROL OUT terminal (supports SR+)
7 PC INPUT terminal (analogue RGB)
8 INPUT 5 terminal (HDMI)
9 INPUT 4 terminal (HDMI)
10 INPUT 3 terminal (HDMI)
11 INPUT 1 terminals (AUDIO L, R)
12 INPUT 1 terminal (VIDEO)
13 INPUT 1 terminal (S-VIDEO)
14 INPUT 2 terminal (VIDEO)
15 INPUT 2 terminal (S-VIDEO)
16 INPUT 2 terminals (AUDIO L, R)
17 INPUT 3 terminal (S-VIDEO)
18 MONITOR OUT terminals (AUDIO L, R)
19 SUBWOOFER output terminal
20 MONITOR OUT terminal (VIDEO)
21 INPUT 3 terminal (VIDEO)
22 DIGITAL OUT terminal (OPTICAL)
23 PC INPUT terminal (AUDIO (STEREO))
24 INPUT 2 terminals (COMPONENT VIDEO: Y, P
B
, P
R
)
25 INPUT 1 terminals (COMPONENT VIDEO: Y, P
B
, P
R
)
26 INPUT 3 terminals (AUDIO L, R)
27 SPEAKERS L, R terminals (PDP-508XDA only)
MONITOR OUT SUB WOOFER
DIGITAL DIGITAL OUT OUT OPTICAL OPTICAL
MONITOR OUT
DIGITAL DIGITAL OUT OUT OPTICAL OPTICAL
SUB WOOFER
MONITOR OUT SUB WOOFER
DIGITAL DIGITAL OUT OUT OPTICAL OPTICAL MONITOR OUT
DIGITAL DIGITAL OUT OUT OPTICAL OPTICAL
SUB WOOFER
MONITOR
OUT
SUB
WOOFER
DIGITAL DIGITAL
OUT OUT
OPTICAL OPTICAL
MONITOR
OUT
DIGITAL DIGITAL
OUT OUT
OPTICAL OPTICAL
SUB
WOOFER
PDP-508XDA PDP-428XDA
9 10 8 7
1 2
5 4 3
20
23
22
26 25 27
21
24
11
12
15 16 17 19 18
14
13
20
23
26 25
21
24
11
12
15 16 17 19 18
14
13
22
6
* For exact terminal positions,
refer to the terminal position
sheet located near the terminal
compartment.
The terminals from 1 to 10 are the
same as the PDP-508XDA.
