CQ-VD7005W

English

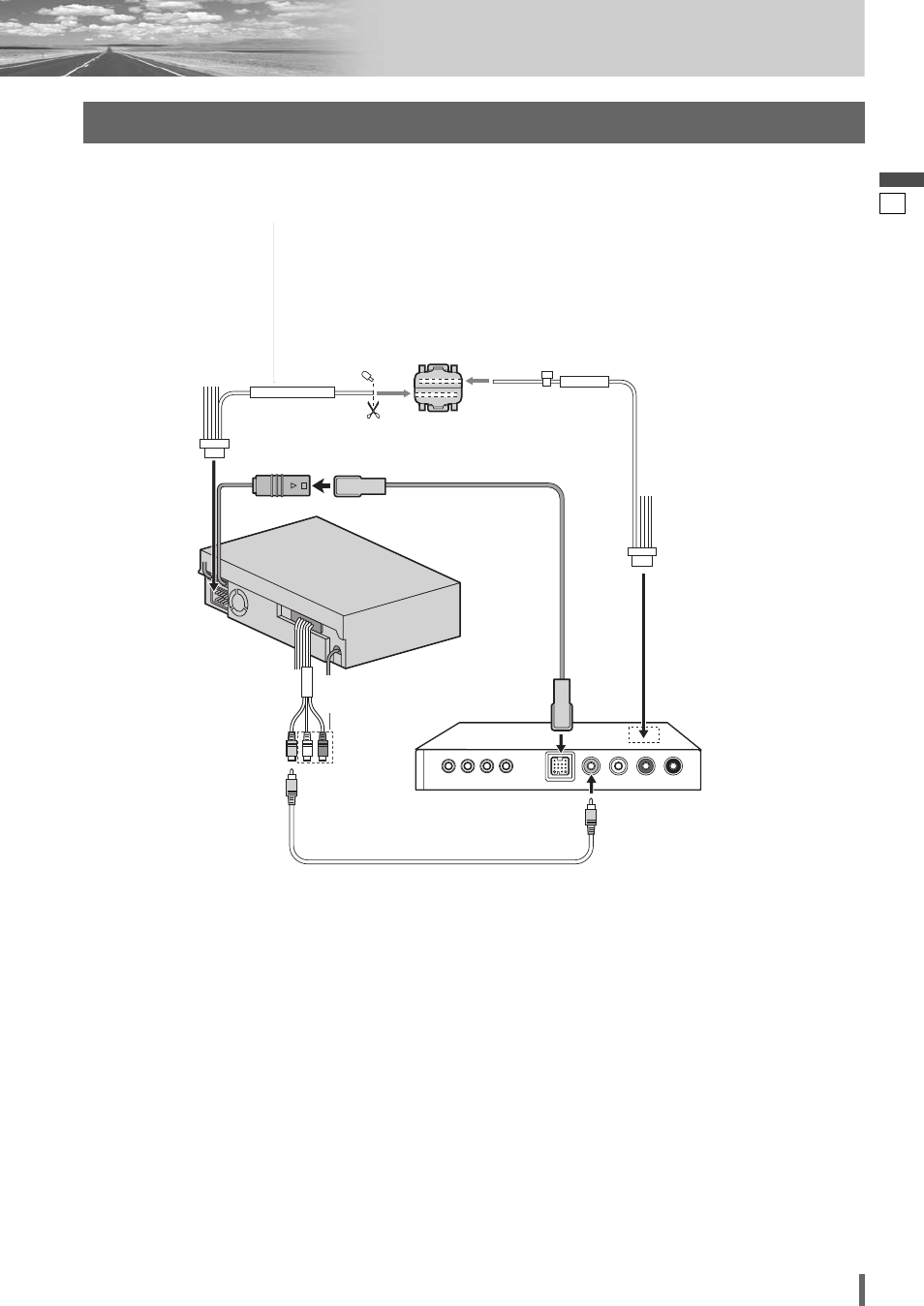

Connection with TV Tuner

Note:

Refer to the operating instructions for the connected devices, in addition.

AV2-IN

PWR-CONT

AMP-CONT MAX 0.1 A

TV Tuner

CY-TUP133W/
CY-TUN133W

(option)

CQ-VD7005W
(Rear)

(Video)
(Yellow)

RCA Cord
(supplied with CY-TUP133W/

CY-TUN133W)

System-up Connector
(supplied with CY-TUP133W/

CY-TUN133W)

(not used)

!3 Power

Connector

Power Connector
(supplied with CY-TUP133W/

CY-TUN133W)

External Amplifier Control Power Lead

Note:

Connect both the power control lead of the TV tuner and the amplifier control
connector of the external amplifier when the TV tuner and external amplifier are
connected at the same time.

Power Control Lead

Clip connector
(option)
