8
9 CQ-VD7005W
English
— +
SIDE BRAKE
The side brake (parking brake) switch position varies with car model.
For details on the exact location of the side brake (parking brake) switch
in your car, contact your dealer.
q
Attach a Clip Connector !4 to the end of the side
brake (parking brake) connection lead.
w
The Clip Connector !4 is connected to the power
source side lead of the side brake (parking brake)
lever.

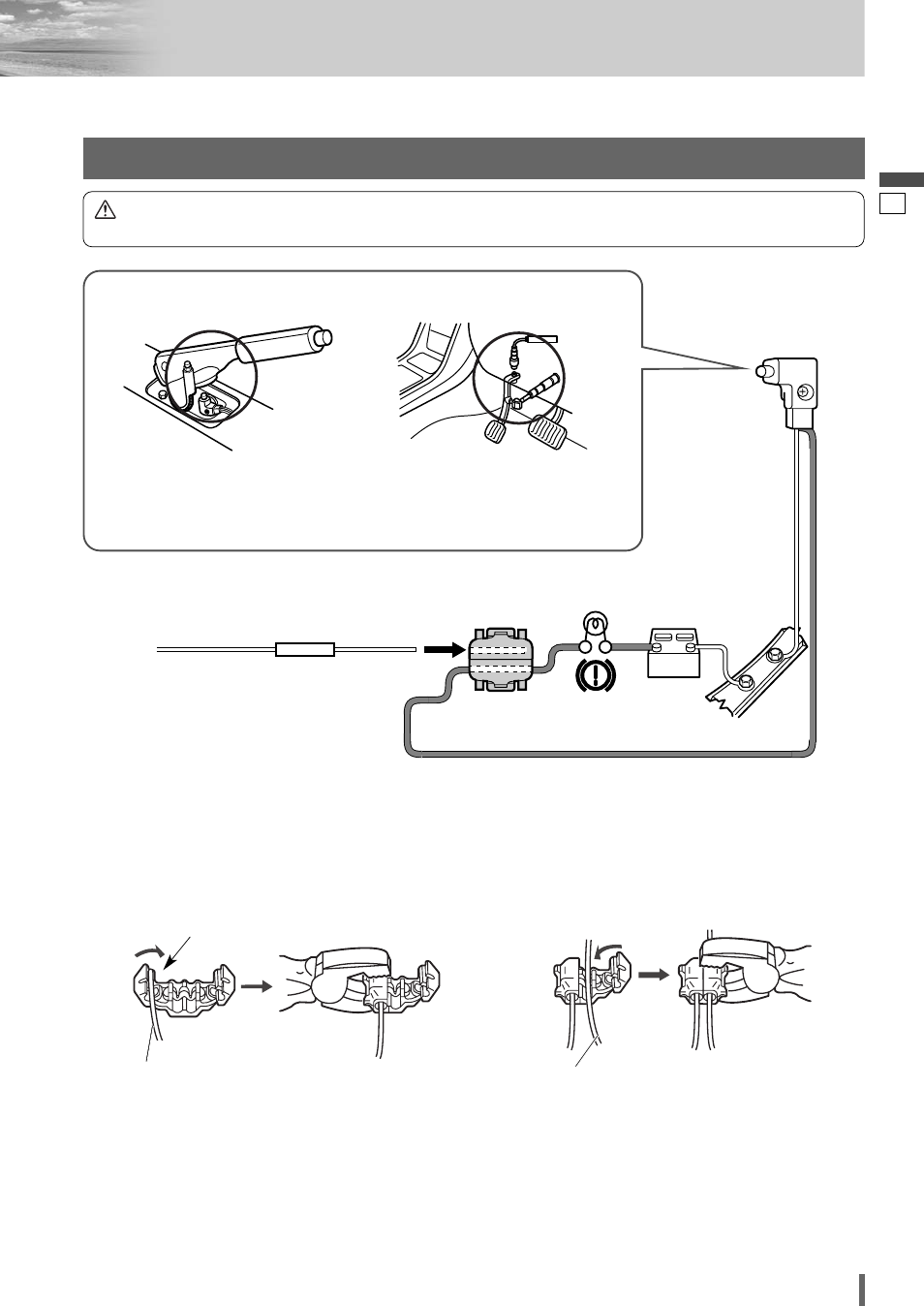

Connecting the Side Brake (Parking Brake) Connection Lead
Hand brake Foot brake
Side Brake (Parking Brake) Connection
Lead (Bright green)
When the side brake (parking brake) lever is
engaged, the unit is grounded by the chassis.
Side brake (parking brake) switch
Car chassis
Battery
Brake light
!4 Clip Connector
Side Brake (Parking Brake) Connection Lead
(Bright green)
Comes up to this point.
Power source side lead
Caution
¡ For safety, be sure to ask your nearest professional installer to do this connection.
