CQ-VD7005W
English

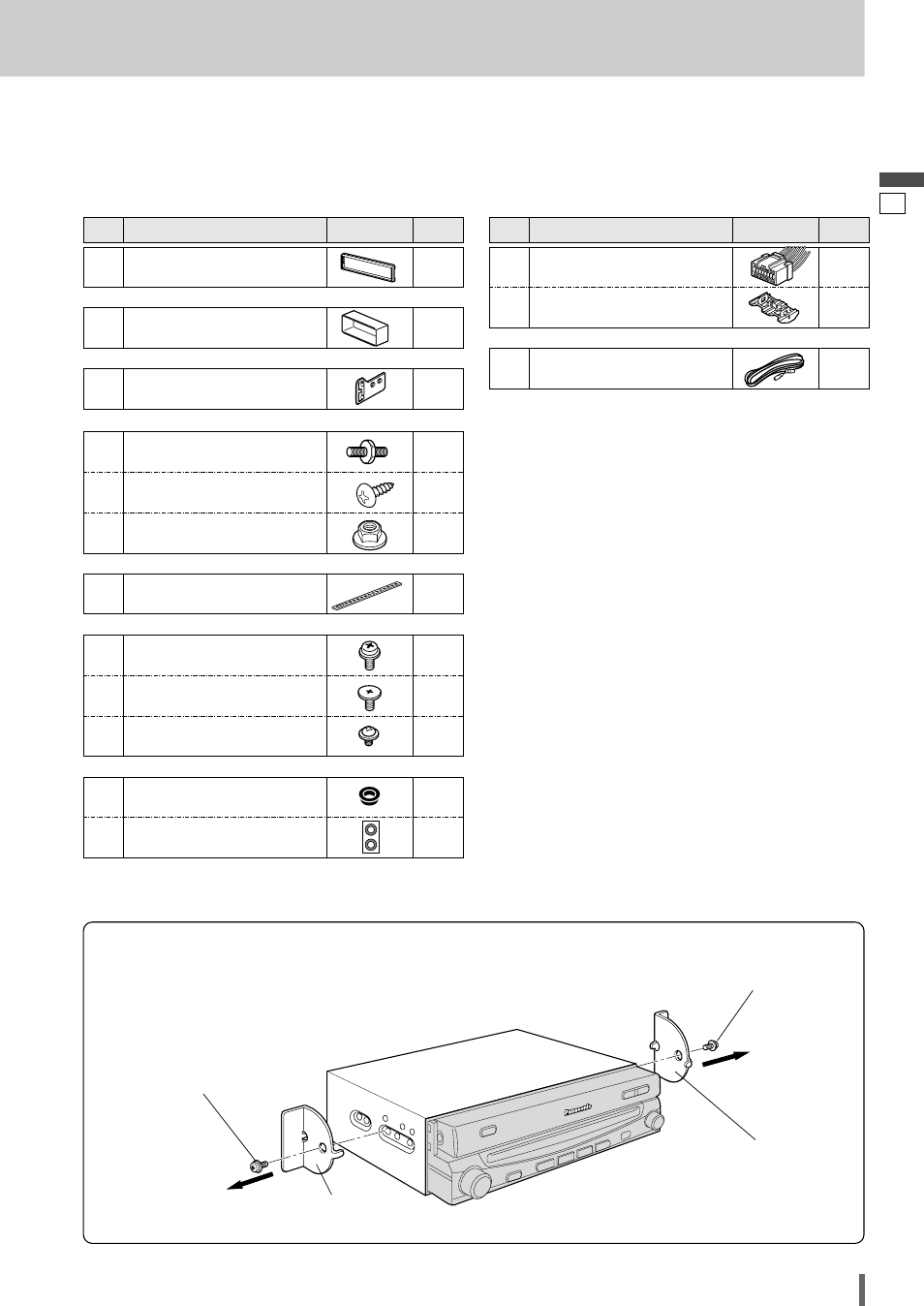

❏ Transportation Bracket Removal
Be sure to remove the transportation brackets before use (installation).
Use round head screws (5
mm
ø
x 6 mm) for installation. (
a
page 8)
Be careful not to lose these screws.
Round Head Screw
(5
mm
ø
x 6 mm)
Round Head Screw
(5
mm
ø
x 6 mm)
Transportation
Bracket
Transportation
Bracket
❏
Installation Hardware
(For Installation)
Note:
¡
The number in parenthesis underneath each accessory
part name is the part number for maintenance and serv-
ice.
¡
Accessories and their parts numbers are subject to
modification without prior notice due to improvements.
¡
Use the supplied screws for installation exclusively. In
case of losing any of them, please order the specific
screw.
Qty.
Diagram
Item
No.
Trim Plate
q
1
Mounting Collar
w
1
Mounting Spring
e
2
Rear Support Strap
u
1
Round Head Screw
(5 mmø x 6 mm)
i
2
Flat-Head Screw
(5 mmø x 6 mm)
o
4
Round Head Screw
(4 mmø x 3 mm)
!0
4
Mounting Bolt (5 mmø)
r
1
Tapping Screw
(5
mm
ø
x 16 mm)
t
1
Hex. Nut (5
mm
ø)
y
1
Spacer
!1
2
Double-Faced Adhesive Tape
!2
1
set
❏
Installation Hardware
(For
Wiring
)
Qty.
Diagram
Item
No.
Reverse Extension Cord
!5
1
Power Connector
!3
1
Clip Connector
!4
1
