c. Insert the rod into the side rail mount and apply pressure to push the
T-knob assembly through to the opposite side. See Diagram 7. You
may need to jiggle the rod slightly to help alleviate friction and to
align the rod in the opposite side rail mount.
Note: Take your time and be patient while installing the rod between
the two handrails. The tight fit assures smooth handrail operation.
d. Rest the right handrail on the safety stop.

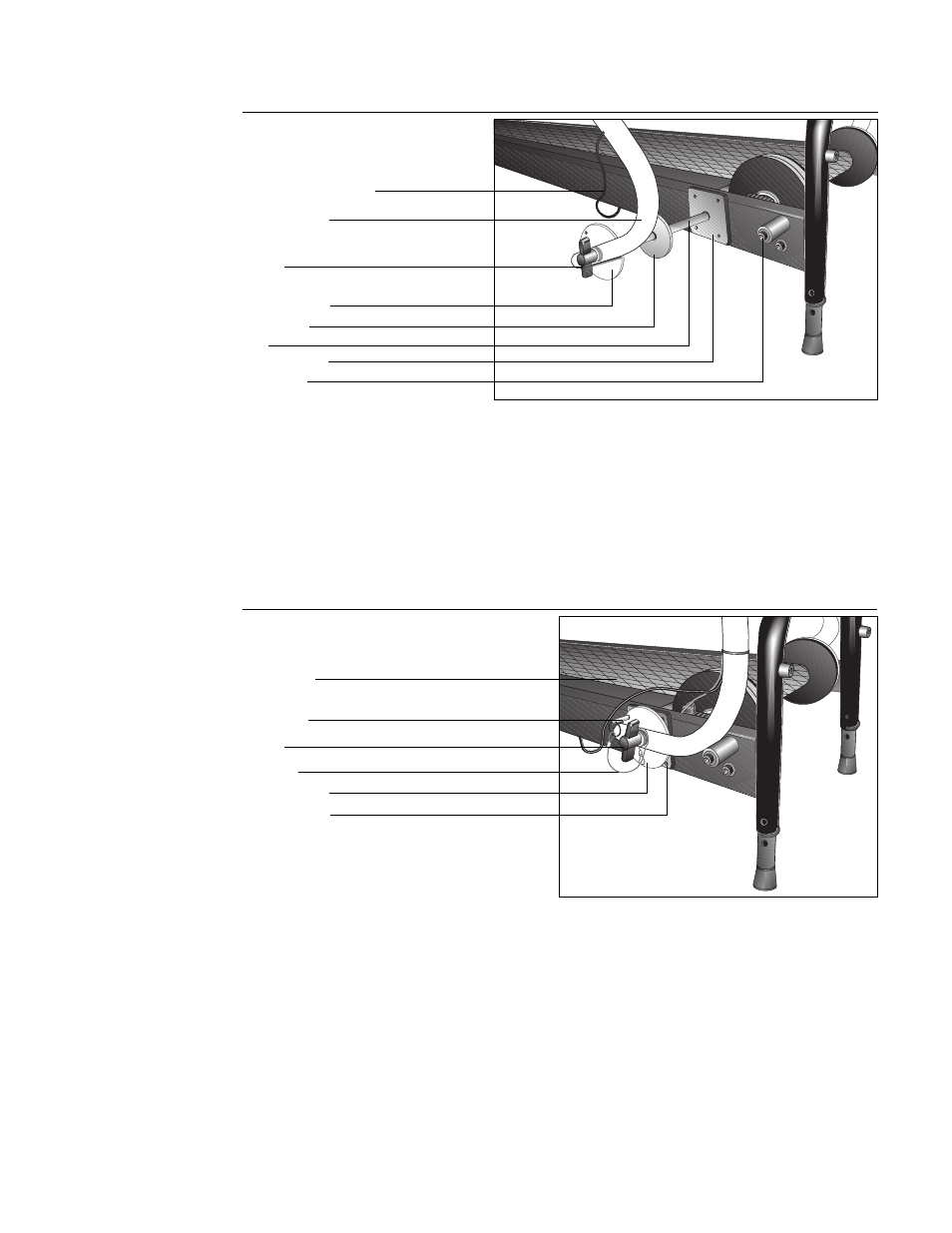

Diagram 7
Installing the right handrail and
T-knob assembly.
T-knob
Handrail (right)
Micro-adjustment cable
Rod
Handrail mount
Leather pad
Side rail mount
Safety stop
e. Remove the locking pin (D) from the hardware kit and place the wire
loop over the T-knob. Align the hole in the handrail mount with the
side rail mount and insert the locking pin. See Diagram 8.
Diagram 8
Inserting the locking pin.
T-knob
Running belt
Locking pin
Side rail mount
Handrail mount
Wire loop
