Connecting a television with a VIDEO IN
terminal

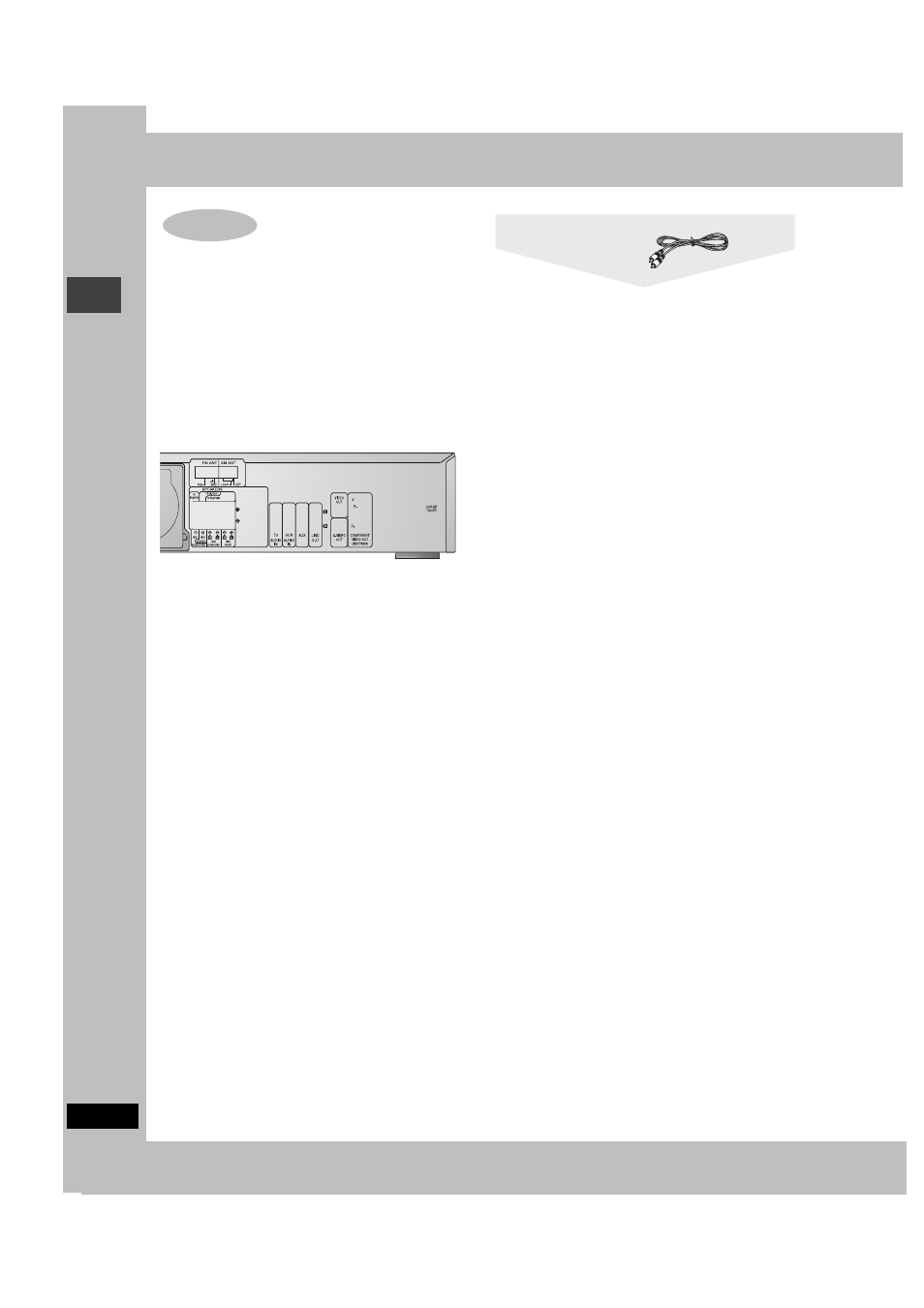

Connect directly to your television
Do not connect the unit through a video cassette recorder,
because the picture may not be played correctly due to the copy
guard.
∫
Connecting a television with an S-VIDEO IN
terminal
S-VIDEO OUT terminal
The S video terminal achieves a more vivid picture than the VIDEO
OUT terminal by separating the chrominance (C) and luminance
(Y) signals. (Actual results depend on the television.)
∫
Connecting a television with COMPONENT
VIDEO IN terminals
COMPONENT VIDEO OUT terminals
These terminals can be used for either interlace or progressive
output and provide a purer picture than the S-VIDEO OUT
terminal. Connection using these terminals outputs the color
difference signals (P
B
/P
R
) and luminance signal (Y) separately in
order to achieve high fidelity in reproducing colors.
≥
The description of the component video input terminals depends
on the television or monitor (e.g. Y/P
B
/P
R
, Y/B-Y/R-Y, Y/C
B
/C
R
).
Connect to terminals of the same color.
≥
After making this connection, change the black level for a better
picture (
➡
page 32, Video—Black Level Control).
STEP
3
Television
Video cable
