Screwdriver

Trim Plate

To Remove the Unit

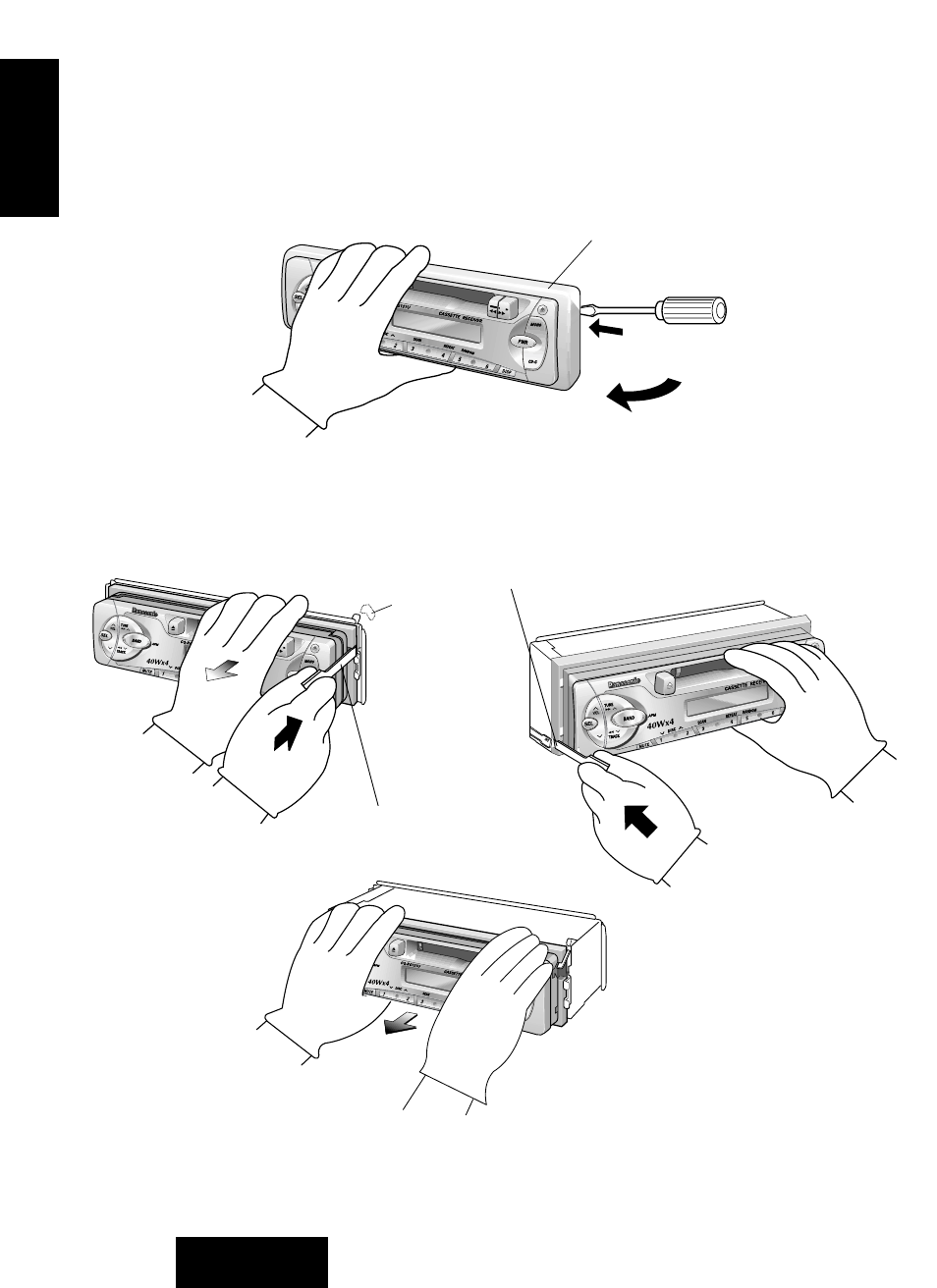

a) Remove the trim plate with a screwdriver as shown in the figure (Fig. 1).

b) Pull out the unit while pushing the two lock levers using Dismounting Plate

ቨ

as follows.

(Fig 2, 3)

c) Remove the unit pulling with both hands. (Fig 4).

Note: Do not lose the Dismounting Plate. It will be needed to remove the unit from the car’s

dashboard.
