LX0801PTI/ LX1201PTI/ LX1501PTI - IP-65 Touch Monitors User’s Guide (020-0512-01A)
7

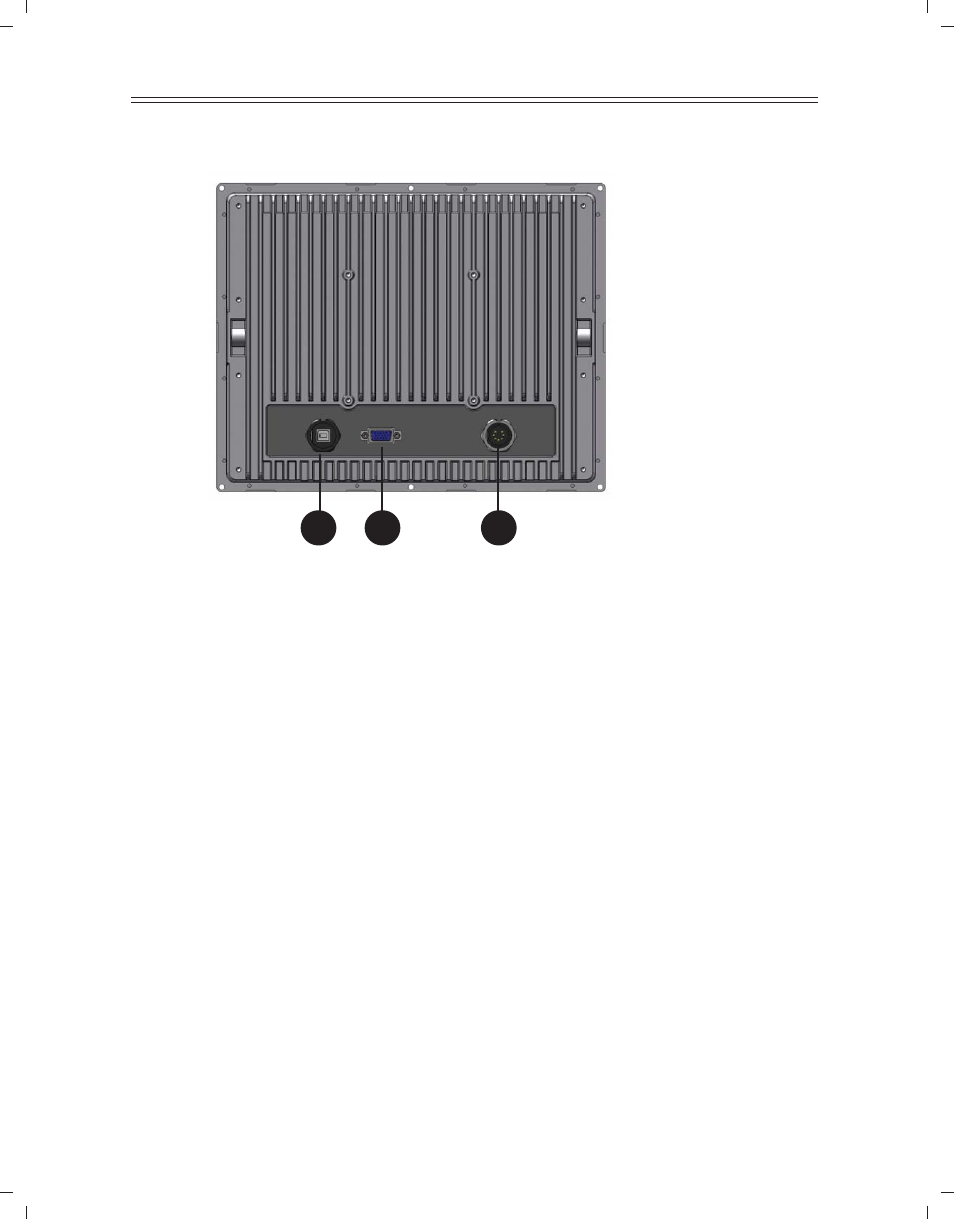

Rear View (Descriptions):
USB port (Type B) for connecting the touchscreen to the remote computer
1.
VGA Signal Input
2.
8-32 VDC Internally Regulated Power Input
3.
Modular, removable connector plate for customizing I/O (not available on 12"
4.
model at time of print)
Mating Connectors (sourced from http://www.ltw-tech.com):
USB Cable Assembly: 1 to 5 meter available. LTWWUB-20BFM-A7Axx (01, 02,
...05 for meter length)
VGA: The VGA connector located inside the monitor is waterproof.
The connector style is standard 15-pin VGA.
DC Power Connector Only: LTWCD-07BFFA-LL 7001
DC Cable Assembly: LTWCD07AFFM-LL7Axx (01, 02, ... 99 meter length)
1
2
3
