INSTALLING ROTO COVER AND CRANK
Note: You may want to remove the lock lever prior to finishing the window, or if it needs
to be replaced with a lock lever in a different finish.
A. Unlock and open the window.
B. Place the lock lever in the locked position.
C. From the exterior of the window, insert a
small flat-blade screwdriver between the cam
and lock lever near the bottom of the opening
between the stop and frame gasket.
D. Push the screwdriver inwards with a small
amount of pressure; then turn the blade slightly
clockwise for a left hand unit, counter-clockwise
for a right hand units. DO NOT over-twist the
screwdriver, this can damage the lock driver.
Note: This will release the hook in the lever
from the cam hook.
E. Remove the lock lever by pulling it toward the
interior of the building.
F. To install a lock lever, hold it in the lock
position and insert it, from the interior, into the
slot until it snaps into the cam.
Interior B Exterior C
Interior F Exterior
D
E
Note: Finish the interior of the window and allow the
window to dry before proceeding with these instructions.
(To open the window for finishing, partially insert the lock
handle into the jamb, unlock the unit, temporarily attach the
crank handle and turn to open.)

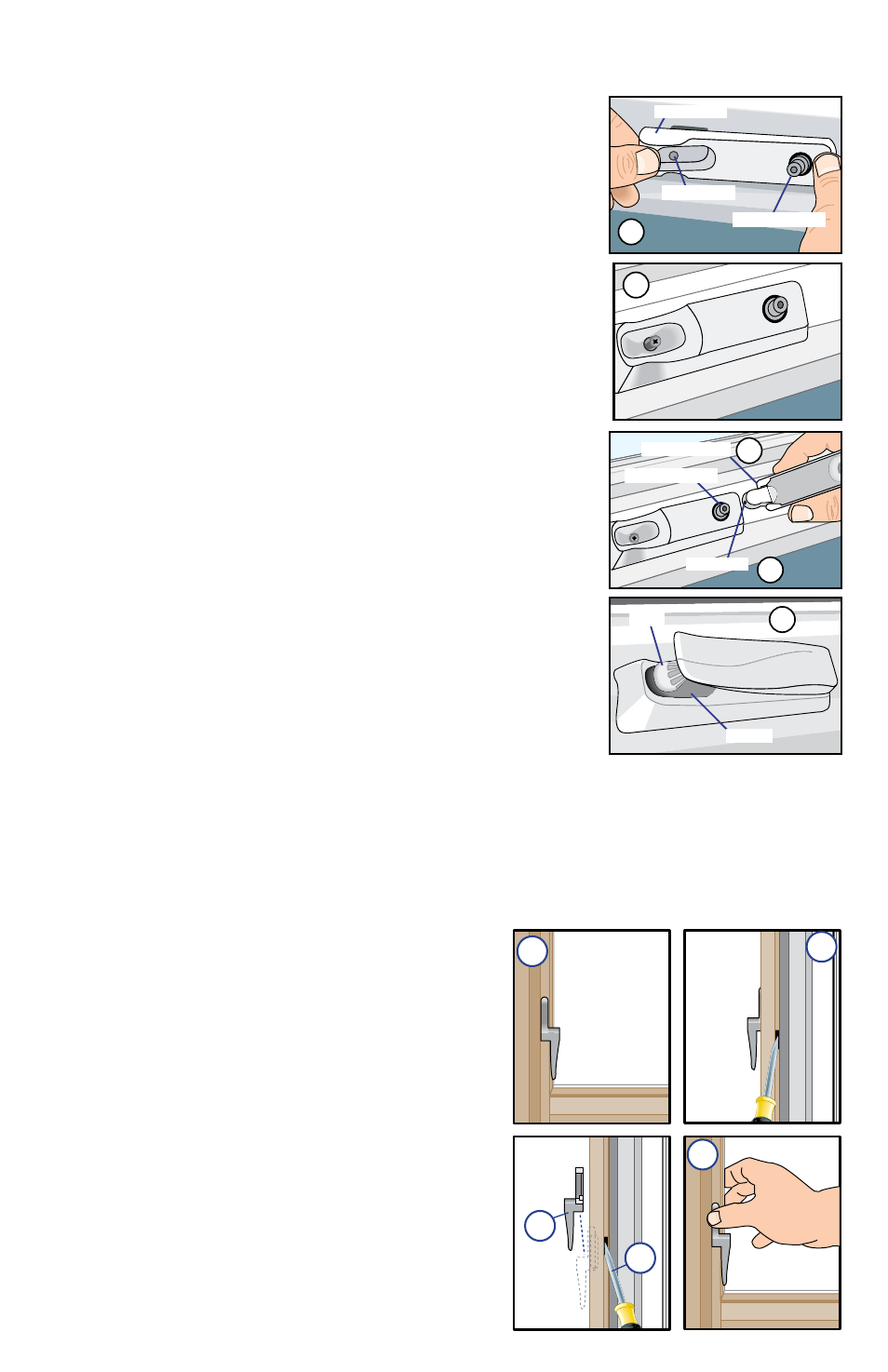

A. Place the cover over the operator stud and snap into
place. Position the pocket end of the cover into place.
Note: If the cover does not have the screw hole, apply
pressure on the pocket end of the cover to snap the cover
into place and proceed to step C.
B. Insert the provided screw into the hole in the bottom
of the pocket. Use a # 1 Phillips screwdriver to secure
the pocket screw snug against the bottom of the pocket
to avoid scratching the crank handle knob. DO NOT over
tighten.
C. Use a medium size flat-blade screwdriver to loosen the
set screw in the crank handle.
D. Slide the crank handle onto the stud. Unlock, open
window, then close and lock window.
E. Fold the crank handle down and check alignment of knob
with the pocket.
Note: You may need to adjust the crank position on the stud
until the correct alignment is achieved.
F. Open the crank and tighten the set screw.
G. After the final installation, fold the crank over and snap
the knob into the pocket.
Note: Even with the window open the crank can be folded
to avoid interferring with the window treatments.
Pocket End
Operator Stud
Screw Hole
A
B
Crank Handle
Operator Stud
Set Screw
C
D
Knob
Pocket
E
LOCK LEVER REMOVAL AND INSERTION
