Drill 1/8"

clearance hole

Double-Hung Jamb

1/4"

Double-Hung Head

Drill 1/8"

clearance hole

1/2"

Double-Hung Sill

Drill 1/8"

clearance hole

1/2"

Clad Frame Sill

Drill 1/8"

clearance hole

1"

Clad Frame Head

Drill 1/8"

clearance hole

1"

3D

3D

3D

Double-Hung Sill

Double-Hung Head

Drill 1/8"

clearance hole

Drill 1/8"

clearance hole

Double-Hung Jamb

Drill 1/8"

clearance hole

3D

3D

Designer Series®

and ProLine®

Architect Series®

Double-Hung

A. Casement:

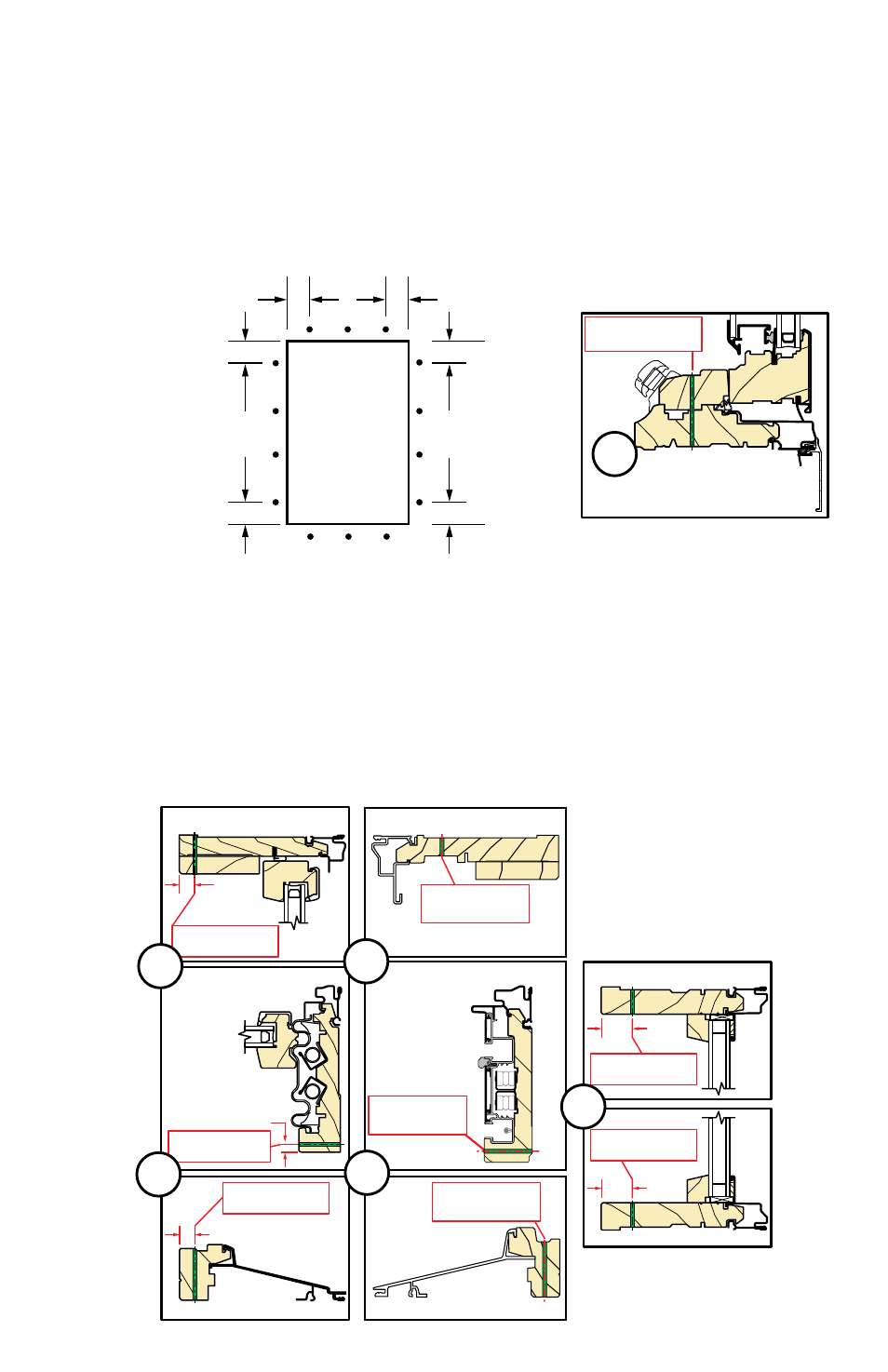

On the room side of the window drill 1/8" diameter clearance holes through the head,

jambs and sill of the frame. Space the holes a maximum of 6" from each end and a

maximum of 16" on center.
Note: On vent casements, place the holes so they do not interfere with the roto operator

and the latch points on the lock side of the window.

Casement Sill

Drill 1/8"

clearance hole

B. Double-hung and Clad Frame:

On the room side of the window, drill 1/8" diameter clearance holes

through the frame at the locations shown. Space the holes a maximum

of 6" from each end and a maximum of 16" on center.
Note: The lower sash must be raised to drill the holes in the sill of the

double-hung window.

Single

Window

6"

6"

6"

EVERY

16"

6"

6"

EVERY

16"

6"

16"

EVERY

2A

2B

2B

2B

2

WINDOW PREPARATION
