Getting started
RQT7125
12
1

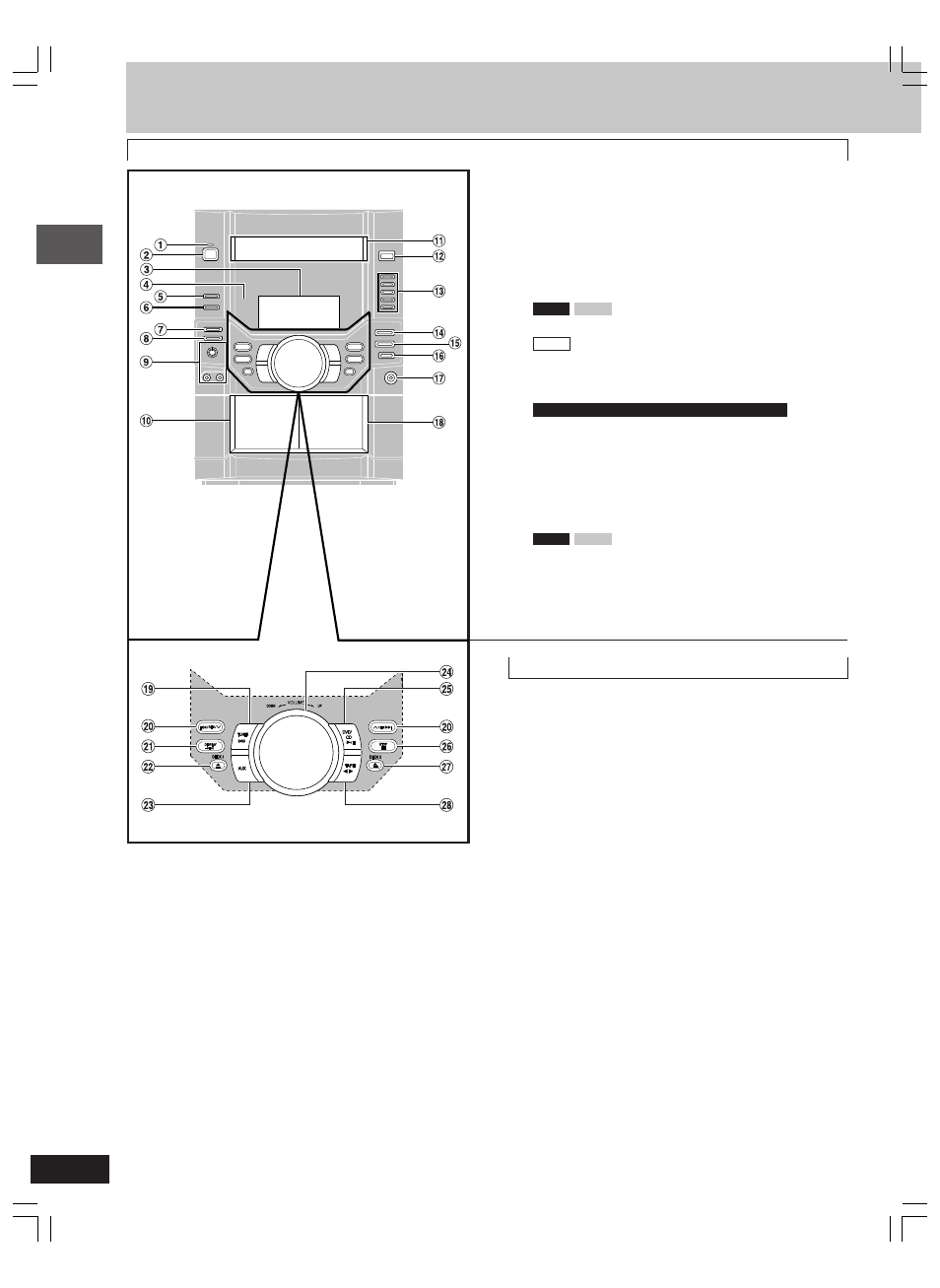

AC supply indicator [AC IN]
This indicator lights when the unit is connected to the AC mains
supply.
2
Standby/on switch [f
f
f
f
f/I]
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
3
Display
4
Remote control signal sensor
5
Double re-master button [DOUBLE RE-MASTER] ............. 30
6
VK90D
VK80D
Super surround button
[SUPER SURROUND] ........................................................... 29
VK70D
Advanced surround button
[ADVANCED SURROUND] ................................................... 29
7
Deck 1/2 selection button [DECK 1/2] ................................. 27
8
Record button [a REC] ....................................................... 31
9
For the Middle East, South Africa and Southeast Asia
Microphone volume control [MIC VOL MIN, MAX] ............. 32
Microphone jacks [MIC 1, 2] ................................................ 32
!
Deck 1 cassette holder ......................................................... 27
Å
Disc tray
#
Disc tray open/close button [c OPEN/CLOSE] ................. 14
$
Disc direct play buttons [1]–[5] ............................................ 14
%
Super sound EQ button [SUPER SOUND EQ] ................... 30
&
VK90D
VK80D
Subwoofer button [SUBWOOFER] ........... 30
(
Sound EQ button [SOUND EQ] ............................................ 30
)
Headphones jack [PHONES] ................................................ 35
~
Deck 2 cassette holder ......................................................... 27
Main unit
Center console
+
Tuner/band select button [TUNER BAND] .......................... 26
,
Disc skip/search/slow-motion play, tape fast-forward/
rewind, tune/preset channel select, time adjust buttons
[g/REW/4
4
4
4
4, 3
3
3
3
3/FF/f] ........................................... 15, 26, 27
-
Display, demonstration button [DISPLAY, –DEMO] ..... 11, 35
.
Deck 1 open button [c DECK 1] ........................................ 27
/
AUX button [AUX] ................................................................ 39
:
Volume control [VOLUME DOWN, UP] ............................... 14
;
DVD/CD play/pause button [:/ J DVD/CD] ........................ 14
<
Stop button [L STOP] ........................................................... 14
=
Deck 2 open button [c DECK 2] ........................................ 27
>
Tape play/direction button [; : TAPE] ............................. 27
