Page 9: Continued)

Identification of Controls

(Continued)

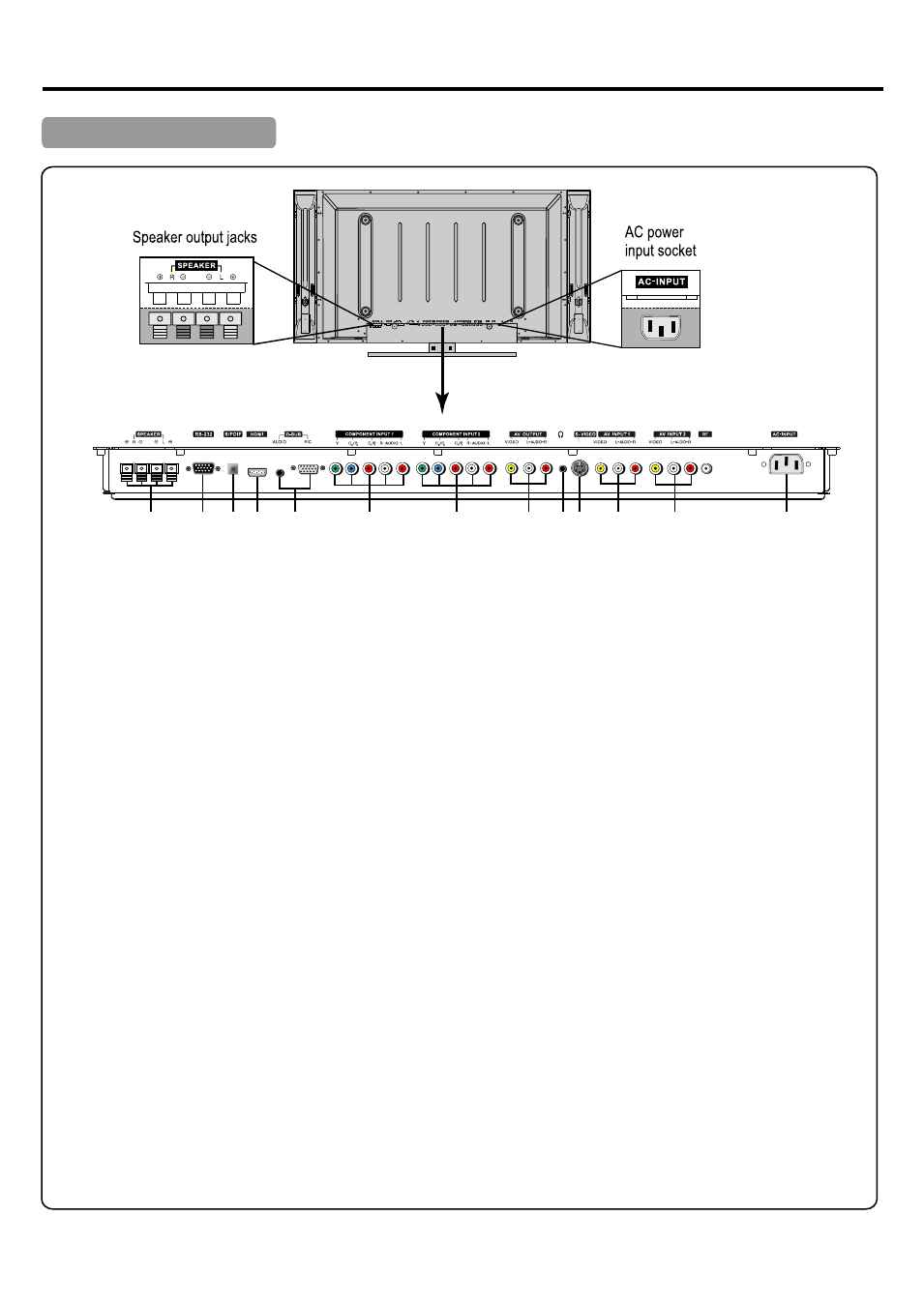

Main Unit (rear view)

Speaker output jacks

RS-232 terminal: For service only. The user should not use this terminal.

S/PDIF digital audio output (optical): Connects to the digital audio input of a digital audio component.

HDMI input: HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video

interface between this TV and any HDMI-equipped audio/video component, such as a set-top box and DVD player.
HDMI supports enhanced, or high-definition video, plus two-channel digital audio.

D-SUB PIC (Video) /AUDIO input: Connects to a PC or other Analog RGB devices such as Video Conferencing.

COMPONENT INPUT 1: Connects to your DVD player.

Component video provides better picture quality than the S-VIDEO or the composite video connections.

COMPONENT INPUT 2: Connects to your DVD player.

Component video provides better picture quality than the S-VIDEO or the composite video connections.

AV OUTPUT: Connects to your VCR to record programs as desired or connects to your audio amplifier.

Only analog TV programs, AV 1 and AV 2 input sources can be output through the AV output jacks.

Headphones jack: Connects to your headphones. If your headphones do not match the jack, use a suitable plug

adaptor (not supplied).

S-VIDEO input: Connects to the S-VIDEO output jack of your VCR or other video equipment that has S-VIDEO.

S-VIDEO provides better picture quality than the composite video connection.

AV INPUT 1: Connects to the composite video and audio output jacks on your VCR or other video device.

AV INPUT 2: Connects to the composite video and audio output jacks on your VCR or other video device.

RF input: Connects to your cable system or outdoor antenna

AC power input jack: Connects to AC power cord..
