Packard Bell EasyNote MX Disassembly Manual
13
Bluetooth (Optional)
To remove the optional Bluetooth module, first remove the battery (see
), the HDD (see
), the CD-ROM or DVD drive (see
), the wireless network card (see
the installed memory (see
), the CPU (see
), the keyboard (see
), remove the
LCD screen (see
), the main board up to step 8 (see
), and then
perform the following steps:
1. Carefully disconnect the Bluetooth cable.

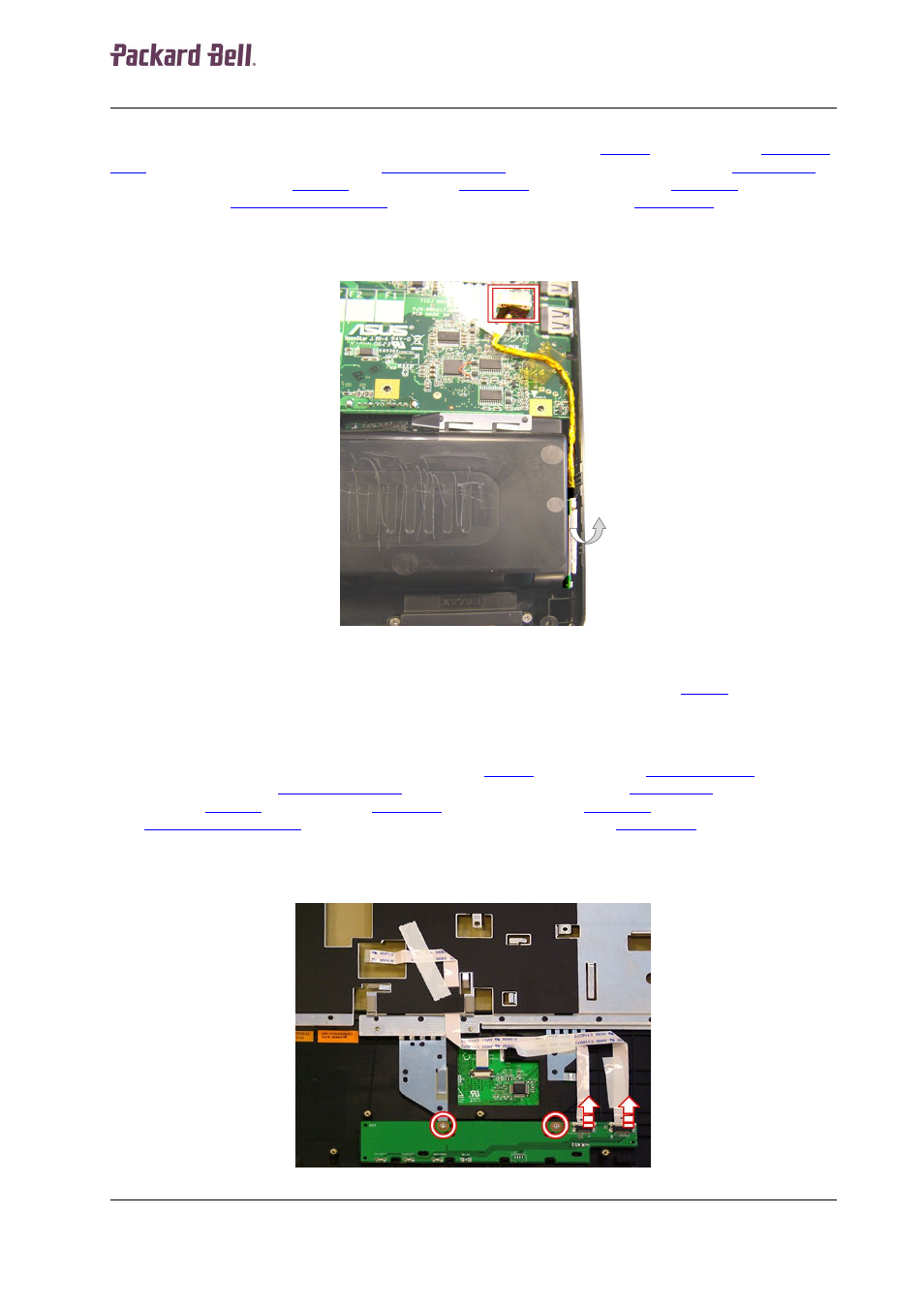

Fig. 21 Location of Bluetooth module and connector.
2. Extract the Bluetooth module; the module has been clicked into place (see
Touchpad
To remove the touchpad, first remove the battery (see
), the HDD (see
), the CD-
ROM or DVD drive (see
), the wireless network card (see
), the installed
memory (see
), the CPU (see
), the keyboard (see
), remove the LCD screen
(see
), the main board top cover up to step 7 (see
), and then perform
the following steps:
1. Remove the 2 screws securing the touchpad buttons board to the top cover.
Fig. 22 Location of touchpad buttons board.
