Packard Bell EasyNote MX Disassembly Manual

11

11.

Lift away the LCD screen assembly.

Main Board

To remove the main board, first remove the battery (see

Battery

), the HDD (see

Hard Disk Drive

), the CD-

ROM or DVD drive (see

Optical Disk Drive

), the wireless network card (see

WLAN Card

), the installed

memory (see

Memory

), the CPU (see

Processor

), the keyboard (see

Keyboard

), remove the LCD screen

(see

LCD Screen Assembly

), and then perform the following steps:

1. Turn the notebook over so the top is facing up.
2. Remove the 4 screws that were covered by the LCD screen and the 4 screws in the heat plate.

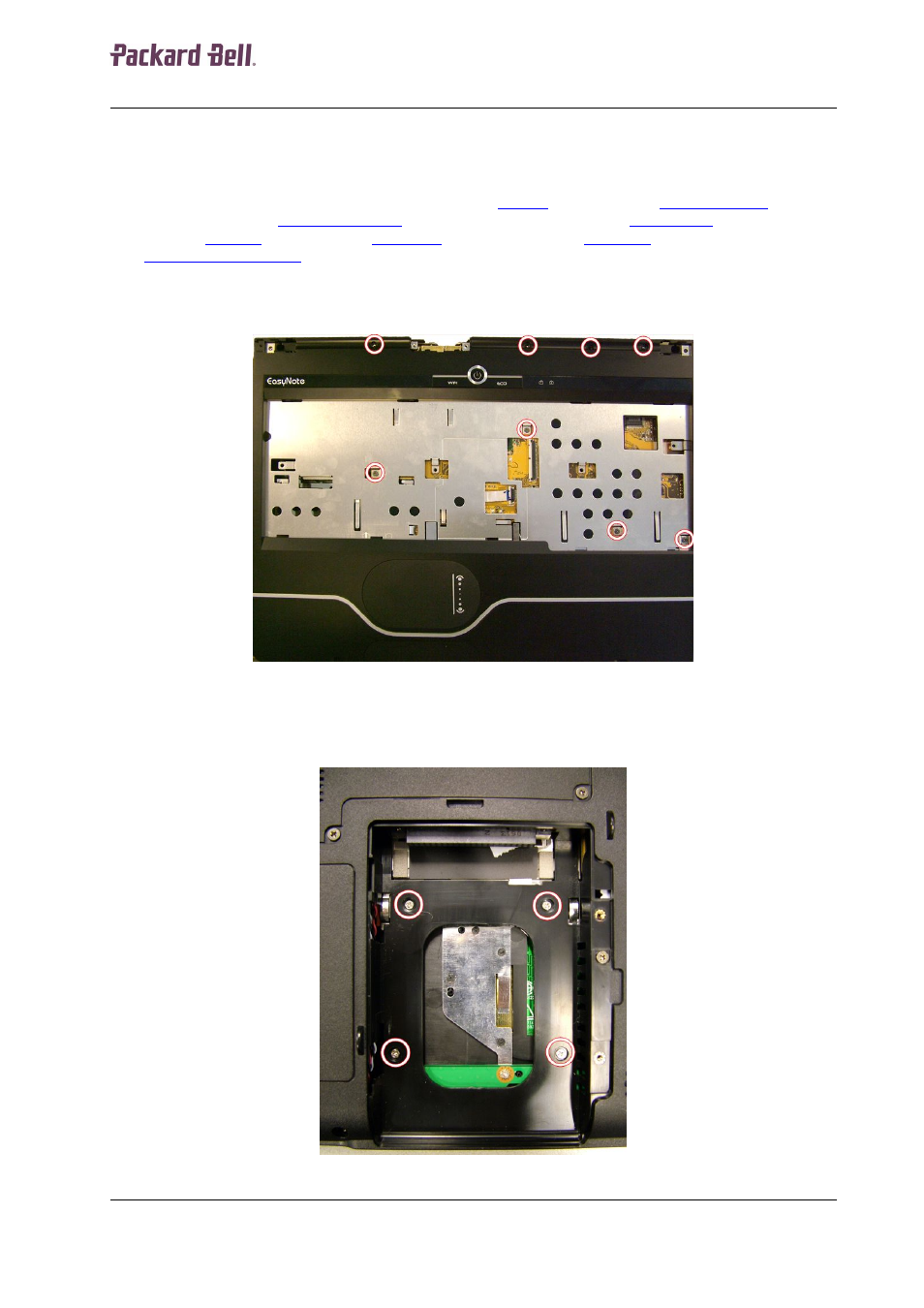

Fig. 17 Location of screws.

3. Turn the notebook upside down.
4. Remove the 4 small screws in the hard disk drive compartment.

Fig. 18 Location of screws in HDD compartment.
