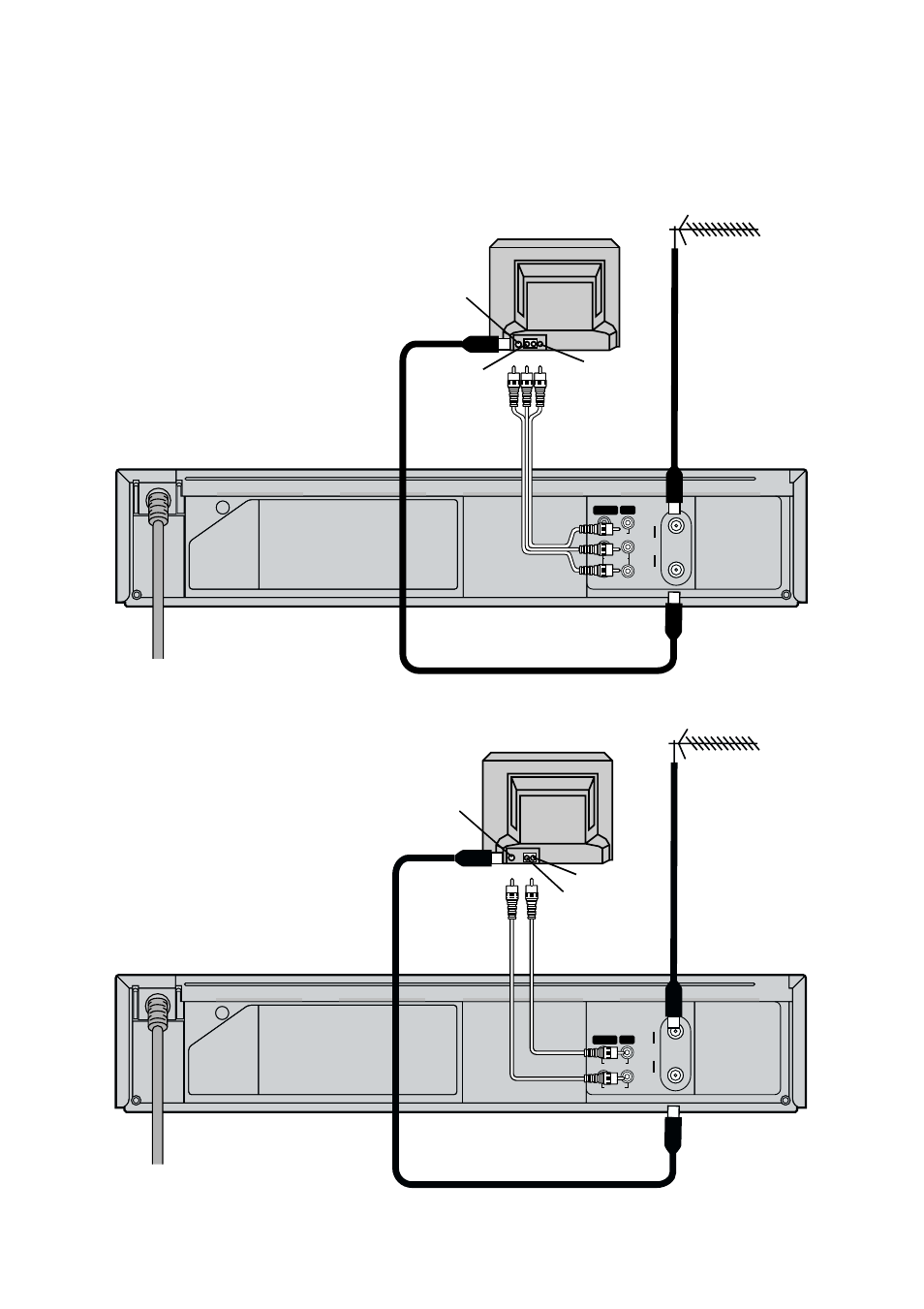

Connection to a TV using the Audio/Video Input Sockets
Antenna Input
Connector
TV Set (Not supplied)
Antenna (Not supplied)
AUDIO IN
VIDEO IN
(Not supplied)
NV-FJ610PMP
To mains supply
Antenna Input
Connector
TV Set (Not supplied)
Antenna (Not supplied)
VIDEO IN
AUDIO IN
(Not supplied)
NV-SJ410PMP
To mains supply
