FP0 – Super Compact PLC
Incredibly small, alone or even as multiple combined units
A control unit a mere 25mm in width. Even expanded to I/O 128 points, the width is still only 105mm.
The attachment area is the smallest in its class.
The control unit's dimensions are: W25* x H90 x D60mm.
Also, the I/O unit can be expanded to a maximum of
128-points. Even so, the size is still only W105 x H90 x
D60mm, a super compact design that breaks all previous
common sense rules on small-scale PLCs. With the
smallest-ever attachment area, the FP0 is perfect for
installation in machines, facilities, and control boards
where miniaturization is progressing even further.
*30mm width limited to I/O 32-points control unit.
Choose among 3 types of attachment
DIN rail Slim attachment
plate model Flat attachment plate
model (cannot be used
with expansions)
Input/output terminal
TOOL-Port
Hooks up by using the programming
software
or FPWIN GR and a single cable.
25mm

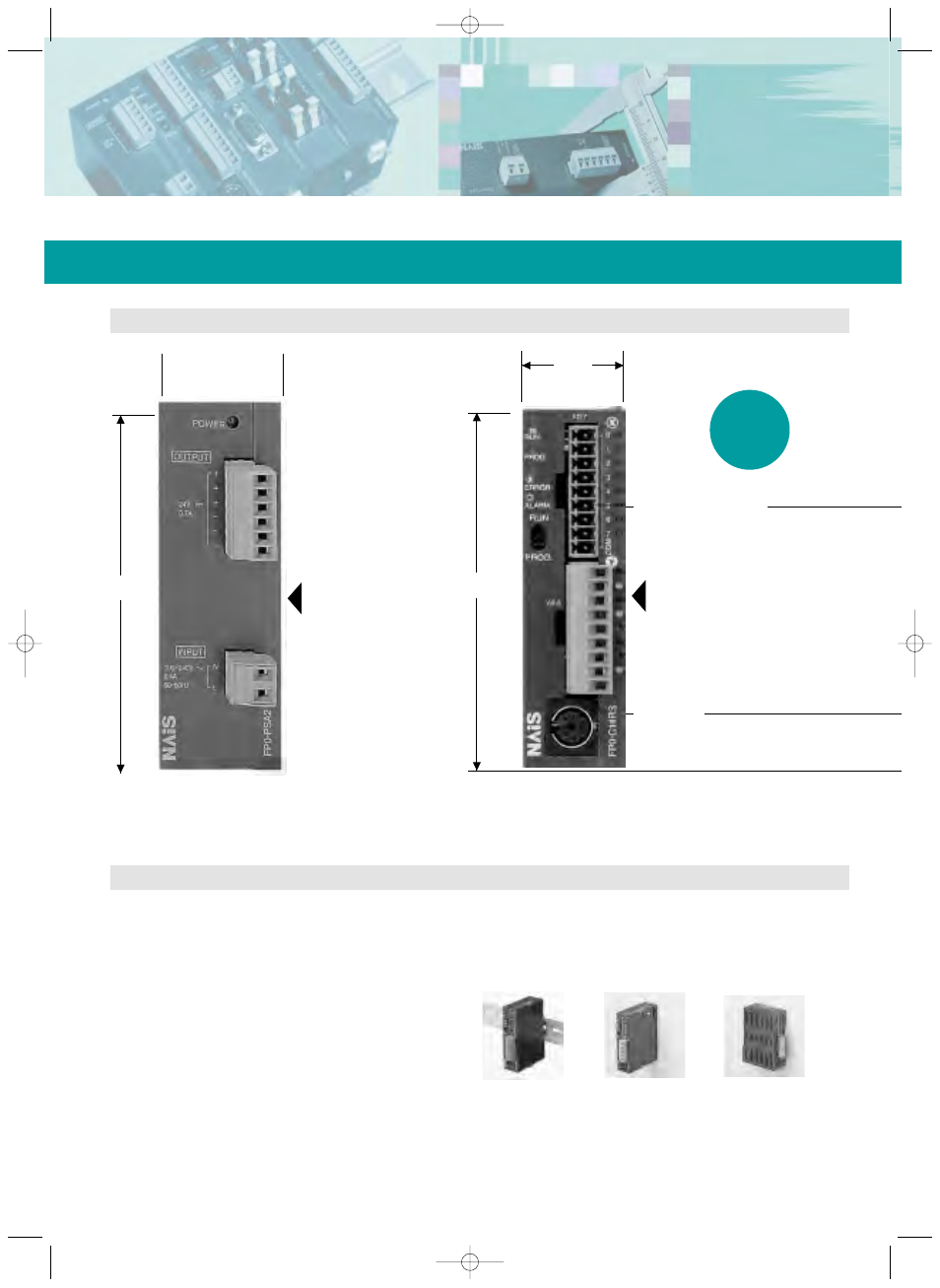

90mm The photo shows an I/O
14-point control unit.
This size is uniform for
all except the I/O 32-point
control unit.
Supply voltage: 24VDC
NAiS Control FPWIN Pro
Actual
size
From I/O 10-points…
Super Compact Size
COM-Port: 2nd RS232C Interface
(optional for all CPU units for serial communication)
90mm AC Power Supply:
• Supply voltage
85 to 265VAC
• Output 24VDC/
0.7A for FP0 PLC
(DC type)
NOTE:
A seperation between
the power supply and
the FP0 is needed to
allow for heat
dissipation.
➝
➝
30.4mm
