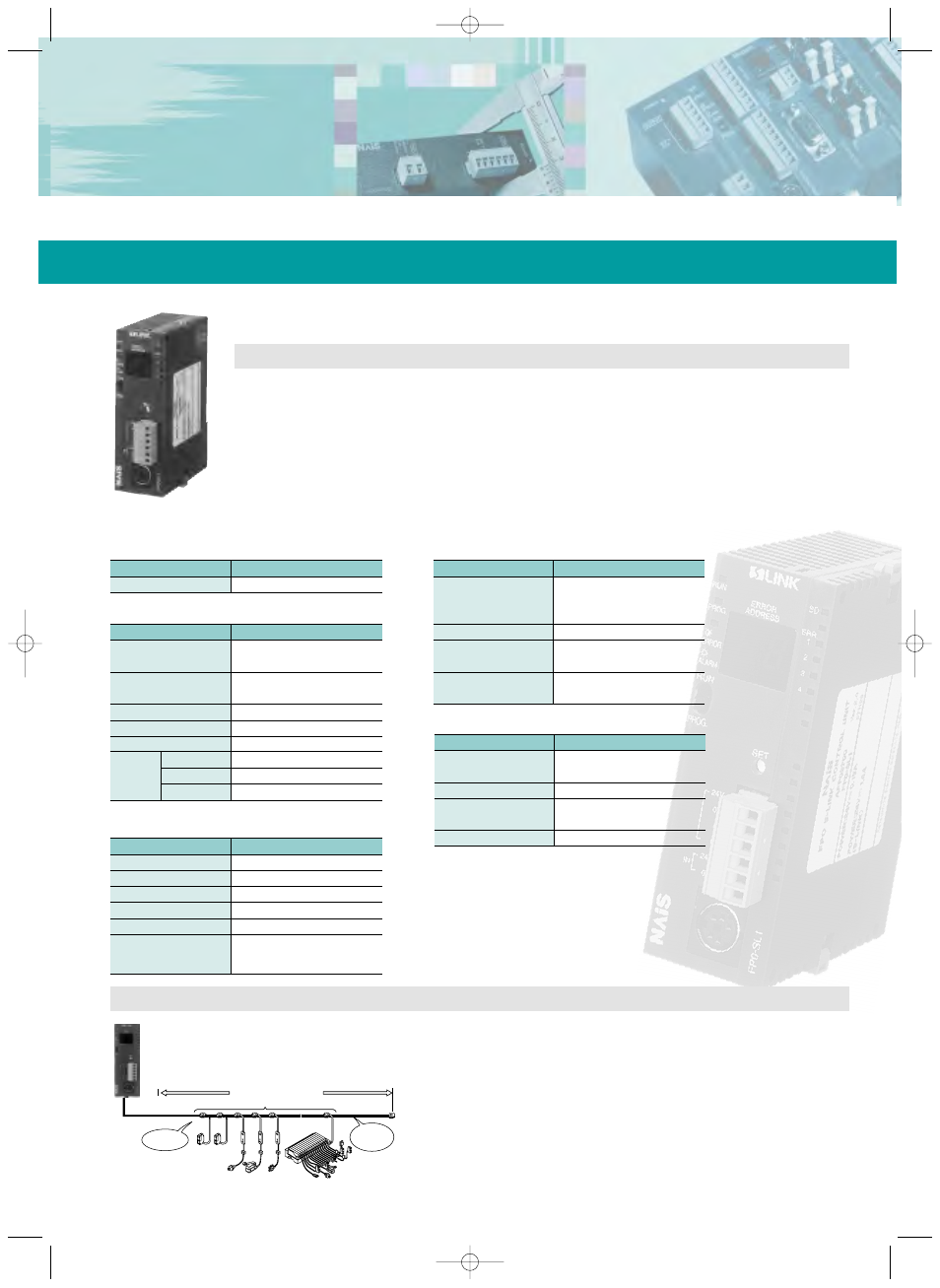

FP0 S-LINK Unit
Connects directly to the S-LINK for reduced wiring
Wire-saving
The use of wires is greatly reduced and the number of connecting
terminal blocks is minimized, resulting in large reduction in cost, as
well as, the waste generated during wiring.
Space effective
S-Link devices are compact. The control box can be mounted in a
tight space.
Quick construction
Sensors cab be easily connected with plug-in connection.
Direct connection for reduced wiring
FP0
S-LINK Control unit
W30 × H90 × D60
Maximum length: 200m
Max. 128 points
T-branch multi
drop wiring
2 signal wires
2 power
supply wires
Features
1. Small size of only W30 x H90 x D60 mm.
Makes use of the T-shaped connectability of the S-LINK for reduced wiring and reduced size
of the control panel.
2. Controls 64 input points and 64 output points.
Able to control up to 128 points for S-LINK-related devices.
3. Allows simultaneous use of expansion units.
Similar to other FP0 units, up to three expansion units can be used for efficient I/O wiring.
4. A wide range of I/O modules allow manifold customer-oriented network layouts.
Item Description
Power supply 24VDC
Power Supply Specification
Item Description
Program block-edit
during RUN
Constant scan
Adjustable input time
filtering
Clock/Calendar function
Available
Available
Not available
None
Other Built-in Functions
Item Description
Number of I/O points
Expansion
S-LINK block: 64 input points,
64 output points (fixed)
Max. 3 units
Expansion section:
Max. 96 points
Operation speed 0.9µs/step
Internal memory EEPROM
Memory capacity 5k steps
Memory Internal relay
of Timer/Counter
execution Data register
1,008 points
144 points in total
6,144 words
Performance Specifications
Item Description
Pulse catch/Interrupt input
Volume input
High-speed Counter
None
Analogue I/O Available by adding analogue I/O unit
None
None
Pulse output None
RS232C port
1 ch is equipped.
3P terminal blocks (made by
Phoenix Contact Co.)
Applicable Functions
Item Description
Remote I/O
Inter-PLC link
Computer link
Modem connection
Control unit functions as S-LINK
master station.
Available as a slave station of
MEWNET-F by adding I/O link unit
Not available
Linkable with tool port or
RS232C port
Available, Type with RS232C
port can also send data
Applicable Network
FP0-SL1
S-Link is a system which simplifies connection of rapidly increasing control devices accompanying
progressing automation and is useful in reducing your costs and construction time.
The layout of devices becomes flexible
and the design is easier due to the
‘T’-branch multi-drop wiring.
