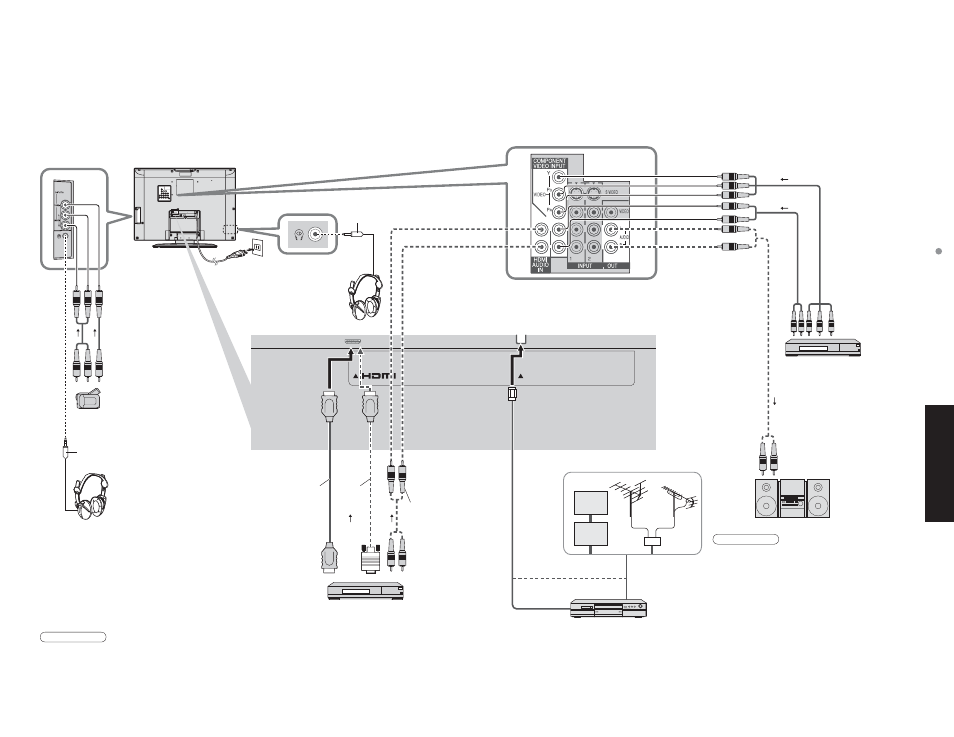

Recommended AV Connections
These diagrams show our recommendations for how to connect the TV unit to your various equipment.
For other connections, consult the instructions of each piece of equipment and the specifications (p. 30).
For additional assistance, please visit our website at: www.panasonic.com
www.panasonic.ca
Power Cord
(Connect after all the other
connections are complete.)
Back of the unit
Ŷ To watch camcorder
images
M3 plug
Headphones/
Earphones
(not supplied)
•
Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their
respective operating instruction manuals.
Note
Ŷ To watch digital
video image
DVD Player or
Set Top Box
(HDMI compatible
machine only)
HDMI cable HDMI-DVI
conversion
cable
Ŷ Control with HDMI
(p. 19)
DIGA
(Panasonic DVD Recorder)
Audio cable
Cable Box
Cable TV
or
Ŷ To watch DVDs
Ŷ To listen to the TV through
speakers
Amplifier
or
•
Set the TV channel to CH3 or CH4 for using Cable Box
Connection.
•
For further information on Cable Box Connection,
consult your local cable company.
•
The picture and audio input signals connected to a
terminal specified in “Prog-out stop” (p. 12-13) cannot
be output from “OUTPUT” terminals.
•
To prevent howling and image oscillation, set the
“Prog-out-stop” setting when connecting VCR with
loop-connection. (p. 12)
•
When equipment (STB, DVD, etc.) is connected to
HDMI or COMPONENT terminals, only audio signals
can be obtained. No video signals can be output.
Note
or
[example: TC-32LX60C] [other than TC-23LX60]
Ŷ DVD Recorder / VCR
[TC-23LX60]
Headphones/
Earphones
(not supplied)
M3 plug
•
Connect with HDMI cable
Camcorder
VCR
DVD Player
DVD Player
Set Top Box
